Versions of rosidl_typesupport_cpp::get_message_type_support_handle that handle adapted types. More...

Classes
struct	AnyExecutable

class	Service

class	AnyServiceCallback

class	AnySubscriptionCallback

class	CallbackGroup

class	ClientBase

class	Client

class	JumpHandler

class	Clock

class	ContextAlreadyInitialized
	Thrown when init is called on an already initialized context. More...

class	ShutdownCallbackHandle

class	Context
	Context which encapsulates shared state between nodes and other similar entities. More...

class	Duration

class	Event

class	Executor
	Coordinate the order and timing of available communication tasks. More...

struct	ExecutorOptions
	Options to be passed to the executor constructor. More...

class	GenericPublisher
	Publisher for serialized messages whose type is not known at compile time. More...

class	GenericSubscription
	Subscription for serialized messages whose type is not known at compile time. More...

class	GuardCondition
	A condition that can be waited on in a single wait set and asynchronously triggered. More...

class	InitOptions
	Encapsulation of options for initializing rclcpp. More...

struct	is_ros_compatible_type

class	LoanedMessage

class	Logger

class	MessageInfo
	Additional meta data about messages taken from subscriptions. More...

class	NetworkFlowEndpoint

class	Node
	Node is the single point of entry for creating publishers and subscribers. More...

class	TopicEndpointInfo

class	NodeOptions
	Encapsulation of options for node initialization. More...

class	Parameter
	Structure to store an arbitrary parameter with templated get/set methods. More...

class	AsyncParametersClient

class	SyncParametersClient

struct	ParameterCallbackHandle

struct	ParameterEventCallbackHandle

class	ParameterEventHandler
	A class used to "handle" (monitor and respond to) changes to parameters. More...

class	ParameterEventsFilter

class	ParameterService

class	ParameterTypeException
	Indicate the parameter type does not match the expected type. More...

class	ParameterValue
	Store the type and value of a parameter. More...

class	Publisher
	A publisher publishes messages of any type to a topic. More...

class	PublisherBase

struct	PublisherFactory
	Factory with functions used to create a MessageT specific PublisherT. More...

struct	PublisherOptionsBase
	Non-templated part of PublisherOptionsWithAllocator<Allocator>. More...

struct	PublisherOptionsWithAllocator
	Structure containing optional configuration for Publishers. More...

struct	QoSInitialization
	QoS initialization values, cannot be created directly, use KeepAll or KeepLast instead. More...

struct	KeepAll
	Use to initialize the QoS with the keep_all history setting. More...

struct	KeepLast
	Use to initialize the QoS with the keep_last history setting and the given depth. More...

class	QoS
	Encapsulation of Quality of Service settings. More...

struct	QoSCheckCompatibleResult
	Result type for checking QoS compatibility. More...

class	ClockQoS

class	SensorDataQoS

class	ParametersQoS

class	ServicesQoS

class	ParameterEventsQoS

class	RosoutQoS

class	SystemDefaultsQoS

struct	PublisherEventCallbacks
	Contains callbacks for various types of events a Publisher can receive from the middleware. More...

struct	SubscriptionEventCallbacks
	Contains callbacks for non-message events that a Subscription can receive from the middleware. More...

class	UnsupportedEventTypeException

class	QOSEventHandlerBase

class	QOSEventHandler

class	QosOverridingOptions
	Options that are passed in subscription/publisher constructor to specify QoSConfigurability. More...

class	RateBase

class	GenericRate

struct	ScopeExit

class	SerializationBase
	Interface to (de)serialize a message. More...

class	Serialization
	Default implementation to (de)serialize a message by using rmw_(de)serialize. More...

class	SerializedMessage
	Object oriented version of rcl_serialized_message_t with destructor to avoid memory leaks. More...

class	ServiceBase

class	Subscription
	Subscription implementation, templated on the type of message this subscription receives. More...

class	SubscriptionBase

struct	ContentFilterOptions
	Options to configure content filtered topic in the subscription. More...

struct	SubscriptionFactory
	Factory containing a function used to create a Subscription<MessageT>. More...

struct	SubscriptionOptionsBase
	Non-template base class for subscription options. More...

struct	SubscriptionOptionsWithAllocator
	Structure containing optional configuration for Subscriptions. More...

class	SubscriptionWaitSetMask
	Options used to determine what parts of a subscription get added to or removed from a wait set. More...

class	Time

class	TimeSource

class	TimerBase

class	GenericTimer
	Generic timer. Periodically executes a user-specified callback. More...

class	WallTimer

struct	TypeAdapter
	Template structure used to adapt custom, user-defined types to ROS types. More...

struct	is_type_adapter
	Helper template to determine if a type is a TypeAdapter, false specialization. More...

struct	is_type_adapter< TypeAdapter< Ts... > >
	Helper template to determine if a type is a TypeAdapter, true specialization. More...

struct	TypeAdapter< T, void, std::enable_if_t< is_type_adapter< T >::value > >
	Identity specialization for TypeAdapter. More...

struct	adapt_type
	Template metafunction that can make the type being adapted explicit. More...

struct	ImplicitTypeAdapter
	Implicit type adapter used as a short hand way to create something with just the custom type. More...

struct	TypeAdapter< T, void, std::enable_if_t< ImplicitTypeAdapter< T >::is_specialized::value > >
	Specialization of TypeAdapter for ImplicitTypeAdapter. More...

class	WaitResult
	Interface for introspecting a wait set after waiting on it. More...

class	WaitSetTemplate
	Encapsulates sets of waitable items which can be waited on as a group. More...

class	Waitable

class	WeakContextsWrapper
	Class to manage vector of weak pointers to all created contexts. More...

class	SignalHandler
	Responsible for managing the SIGINT/SIGTERM signal handling. More...

class	ClocksState

Typedefs
using	OnShutdownCallbackHandle = ShutdownCallbackHandle

using	PreShutdownCallbackHandle = ShutdownCallbackHandle

typedef std::map< rclcpp::CallbackGroup::WeakPtr, rclcpp::node_interfaces::NodeBaseInterface::WeakPtr, std::owner_less< rclcpp::CallbackGroup::WeakPtr > >	WeakCallbackGroupsToNodesMap

using	ParameterMap = std::unordered_map< std::string, std::vector< Parameter > >
	A map of fully qualified node names to a list of parameters.

using	PublisherOptions = PublisherOptionsWithAllocator< std::allocator< void > >

using	QOSDeadlineRequestedInfo = rmw_requested_deadline_missed_status_t

using	QOSDeadlineOfferedInfo = rmw_offered_deadline_missed_status_t

using	QOSLivelinessChangedInfo = rmw_liveliness_changed_status_t

using	QOSLivelinessLostInfo = rmw_liveliness_lost_status_t

using	QOSMessageLostInfo = rmw_message_lost_status_t

using	QOSOfferedIncompatibleQoSInfo = rmw_offered_qos_incompatible_event_status_t

using	QOSRequestedIncompatibleQoSInfo = rmw_requested_qos_incompatible_event_status_t

using	QOSDeadlineRequestedCallbackType = std::function< void(QOSDeadlineRequestedInfo &)>

using	QOSDeadlineOfferedCallbackType = std::function< void(QOSDeadlineOfferedInfo &)>

using	QOSLivelinessChangedCallbackType = std::function< void(QOSLivelinessChangedInfo &)>

using	QOSLivelinessLostCallbackType = std::function< void(QOSLivelinessLostInfo &)>

using	QOSMessageLostCallbackType = std::function< void(QOSMessageLostInfo &)>

using	QOSOfferedIncompatibleQoSCallbackType = std::function< void(QOSOfferedIncompatibleQoSInfo &)>

using	QOSRequestedIncompatibleQoSCallbackType = std::function< void(QOSRequestedIncompatibleQoSInfo &)>

using	QosCallbackResult = rcl_interfaces::msg::SetParametersResult

using	QosCallback = std::function< QosCallbackResult(const rclcpp::QoS &)>

using	Rate = GenericRate< std::chrono::system_clock >

using	WallRate = GenericRate< std::chrono::steady_clock >

using	SubscriptionOptions = SubscriptionOptionsWithAllocator< std::allocator< void > >

using	VoidCallbackType = std::function< void()>

using	TimerCallbackType = std::function< void(TimerBase &)>

using	WaitSet = rclcpp::WaitSetTemplate< rclcpp::wait_set_policies::SequentialSynchronization, rclcpp::wait_set_policies::DynamicStorage >
	Most common user configuration of a WaitSet, which is dynamic but not thread-safe. More...

template<std::size_t NumberOfSubscriptions, std::size_t NumberOfGuardCondtions, std::size_t NumberOfTimers, std::size_t NumberOfClients, std::size_t NumberOfServices, std::size_t NumberOfWaitables>
using	StaticWaitSet = rclcpp::WaitSetTemplate< rclcpp::wait_set_policies::SequentialSynchronization, rclcpp::wait_set_policies::StaticStorage< NumberOfSubscriptions, NumberOfGuardCondtions, NumberOfTimers, NumberOfClients, NumberOfServices, NumberOfWaitables > >
	WaitSet configuration which does not allow changes after construction. More...

using	ThreadSafeWaitSet = rclcpp::WaitSetTemplate< rclcpp::wait_set_policies::ThreadSafeSynchronization, rclcpp::wait_set_policies::DynamicStorage >
	Like WaitSet, this configuration is dynamic, but is also thread-safe. More...

Enumerations
enum class	CallbackGroupType { MutuallyExclusive , Reentrant }

enum class	FutureReturnCode { SUCCESS , INTERRUPTED , TIMEOUT }
	Return codes to be used with spin_until_future_complete. More...

enum class	IntraProcessBufferType { SharedPtr , UniquePtr , CallbackDefault }

enum class	IntraProcessSetting { Enable , Disable , NodeDefault }
	Used as argument in create_publisher and create_subscriber. More...

enum class	EndpointType { Invalid = RMW_ENDPOINT_INVALID , Publisher = RMW_ENDPOINT_PUBLISHER , Subscription = RMW_ENDPOINT_SUBSCRIPTION }

enum	ParameterType : uint8_t { PARAMETER_NOT_SET = rcl_interfaces::msg::ParameterType::PARAMETER_NOT_SET , PARAMETER_BOOL = rcl_interfaces::msg::ParameterType::PARAMETER_BOOL , PARAMETER_INTEGER = rcl_interfaces::msg::ParameterType::PARAMETER_INTEGER , PARAMETER_DOUBLE = rcl_interfaces::msg::ParameterType::PARAMETER_DOUBLE , PARAMETER_STRING = rcl_interfaces::msg::ParameterType::PARAMETER_STRING , PARAMETER_BYTE_ARRAY = rcl_interfaces::msg::ParameterType::PARAMETER_BYTE_ARRAY , PARAMETER_BOOL_ARRAY = rcl_interfaces::msg::ParameterType::PARAMETER_BOOL_ARRAY , PARAMETER_INTEGER_ARRAY = rcl_interfaces::msg::ParameterType::PARAMETER_INTEGER_ARRAY , PARAMETER_DOUBLE_ARRAY = rcl_interfaces::msg::ParameterType::PARAMETER_DOUBLE_ARRAY , PARAMETER_STRING_ARRAY = rcl_interfaces::msg::ParameterType::PARAMETER_STRING_ARRAY }

enum class	HistoryPolicy { KeepLast = RMW_QOS_POLICY_HISTORY_KEEP_LAST , KeepAll = RMW_QOS_POLICY_HISTORY_KEEP_ALL , SystemDefault = RMW_QOS_POLICY_HISTORY_SYSTEM_DEFAULT , Unknown = RMW_QOS_POLICY_HISTORY_UNKNOWN }

enum class	ReliabilityPolicy { BestEffort = RMW_QOS_POLICY_RELIABILITY_BEST_EFFORT , Reliable = RMW_QOS_POLICY_RELIABILITY_RELIABLE , SystemDefault = RMW_QOS_POLICY_RELIABILITY_SYSTEM_DEFAULT , Unknown = RMW_QOS_POLICY_RELIABILITY_UNKNOWN }

enum class	DurabilityPolicy { Volatile = RMW_QOS_POLICY_DURABILITY_VOLATILE , TransientLocal = RMW_QOS_POLICY_DURABILITY_TRANSIENT_LOCAL , SystemDefault = RMW_QOS_POLICY_DURABILITY_SYSTEM_DEFAULT , Unknown = RMW_QOS_POLICY_DURABILITY_UNKNOWN }

enum class	LivelinessPolicy { Automatic = RMW_QOS_POLICY_LIVELINESS_AUTOMATIC , ManualByTopic = RMW_QOS_POLICY_LIVELINESS_MANUAL_BY_TOPIC , SystemDefault = RMW_QOS_POLICY_LIVELINESS_SYSTEM_DEFAULT , Unknown = RMW_QOS_POLICY_LIVELINESS_UNKNOWN }

enum class	QoSCompatibility { Ok = RMW_QOS_COMPATIBILITY_OK , Warning = RMW_QOS_COMPATIBILITY_WARNING , Error = RMW_QOS_COMPATIBILITY_ERROR }

enum class	TopicStatisticsState { Enable , Disable , NodeDefault }

enum class	SignalHandlerOptions { All , SigInt , SigTerm , None }
	Option to indicate which signal handlers rclcpp should install. More...

Functions
RCLCPP_PUBLIC std::vector< Context::SharedPtr >	get_contexts ()
	Return a copy of the list of context shared pointers. More...

template<typename ServiceT >
rclcpp::Client< ServiceT >::SharedPtr	create_client (std::shared_ptr< node_interfaces::NodeBaseInterface > node_base, std::shared_ptr< node_interfaces::NodeGraphInterface > node_graph, std::shared_ptr< node_interfaces::NodeServicesInterface > node_services, const std::string &service_name, const rmw_qos_profile_t &qos_profile, rclcpp::CallbackGroup::SharedPtr group)

template<typename AllocatorT = std::allocator<void>>
std::shared_ptr< GenericPublisher >	create_generic_publisher (rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr topics_interface, const std::string &topic_name, const std::string &topic_type, const rclcpp::QoS &qos, const rclcpp::PublisherOptionsWithAllocator< AllocatorT > &options=(rclcpp::PublisherOptionsWithAllocator< AllocatorT >()))
	Create and return a GenericPublisher. More...

template<typename AllocatorT = std::allocator<void>>
std::shared_ptr< GenericSubscription >	create_generic_subscription (rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr topics_interface, const std::string &topic_name, const std::string &topic_type, const rclcpp::QoS &qos, std::function< void(std::shared_ptr< rclcpp::SerializedMessage >)> callback, const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &options=(rclcpp::SubscriptionOptionsWithAllocator< AllocatorT >()))
	Create and return a GenericSubscription. More...

template<typename MessageT , typename AllocatorT = std::allocator<void>, typename PublisherT = rclcpp::Publisher<MessageT, AllocatorT>, typename NodeT >
std::shared_ptr< PublisherT >	create_publisher (NodeT &&node, const std::string &topic_name, const rclcpp::QoS &qos, const rclcpp::PublisherOptionsWithAllocator< AllocatorT > &options=(rclcpp::PublisherOptionsWithAllocator< AllocatorT >()))
	Create and return a publisher of the given MessageT type. More...

template<typename MessageT , typename AllocatorT = std::allocator<void>, typename PublisherT = rclcpp::Publisher<MessageT, AllocatorT>>
std::shared_ptr< PublisherT >	create_publisher (rclcpp::node_interfaces::NodeParametersInterface::SharedPtr &node_parameters, rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr &node_topics, const std::string &topic_name, const rclcpp::QoS &qos, const rclcpp::PublisherOptionsWithAllocator< AllocatorT > &options=(rclcpp::PublisherOptionsWithAllocator< AllocatorT >()))
	Create and return a publisher of the given MessageT type.

template<typename ServiceT , typename CallbackT >
rclcpp::Service< ServiceT >::SharedPtr	create_service (std::shared_ptr< node_interfaces::NodeBaseInterface > node_base, std::shared_ptr< node_interfaces::NodeServicesInterface > node_services, const std::string &service_name, CallbackT &&callback, const rmw_qos_profile_t &qos_profile, rclcpp::CallbackGroup::SharedPtr group)

template<typename MessageT , typename CallbackT , typename AllocatorT = std::allocator<void>, typename SubscriptionT = rclcpp::Subscription<MessageT, AllocatorT>, typename MessageMemoryStrategyT = typename SubscriptionT::MessageMemoryStrategyType, typename NodeT >
std::shared_ptr< SubscriptionT >	create_subscription (NodeT &node, const std::string &topic_name, const rclcpp::QoS &qos, CallbackT &&callback, const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &options=(rclcpp::SubscriptionOptionsWithAllocator< AllocatorT >()), typename MessageMemoryStrategyT::SharedPtr msg_mem_strat=(MessageMemoryStrategyT::create_default()))
	Create and return a subscription of the given MessageT type. More...

template<typename MessageT , typename CallbackT , typename AllocatorT = std::allocator<void>, typename SubscriptionT = rclcpp::Subscription<MessageT, AllocatorT>, typename MessageMemoryStrategyT = typename SubscriptionT::MessageMemoryStrategyType>
std::shared_ptr< SubscriptionT >	create_subscription (rclcpp::node_interfaces::NodeParametersInterface::SharedPtr &node_parameters, rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr &node_topics, const std::string &topic_name, const rclcpp::QoS &qos, CallbackT &&callback, const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &options=(rclcpp::SubscriptionOptionsWithAllocator< AllocatorT >()), typename MessageMemoryStrategyT::SharedPtr msg_mem_strat=(MessageMemoryStrategyT::create_default()))
	Create and return a subscription of the given MessageT type. More...

template<typename CallbackT >
rclcpp::TimerBase::SharedPtr	create_timer (std::shared_ptr< node_interfaces::NodeBaseInterface > node_base, std::shared_ptr< node_interfaces::NodeTimersInterface > node_timers, rclcpp::Clock::SharedPtr clock, rclcpp::Duration period, CallbackT &&callback, rclcpp::CallbackGroup::SharedPtr group=nullptr)

template<typename NodeT , typename CallbackT >
rclcpp::TimerBase::SharedPtr	create_timer (NodeT node, rclcpp::Clock::SharedPtr clock, rclcpp::Duration period, CallbackT &&callback, rclcpp::CallbackGroup::SharedPtr group=nullptr)
	Create a timer with a given clock.

template<typename DurationRepT , typename DurationT , typename CallbackT >

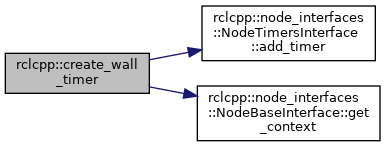

rclcpp::WallTimer< CallbackT >::SharedPtr	create_wall_timer (std::chrono::duration< DurationRepT, DurationT > period, CallbackT callback, rclcpp::CallbackGroup::SharedPtr group, node_interfaces::NodeBaseInterface node_base, node_interfaces::NodeTimersInterface node_timers)
	Convenience method to create a timer with node resources. More...

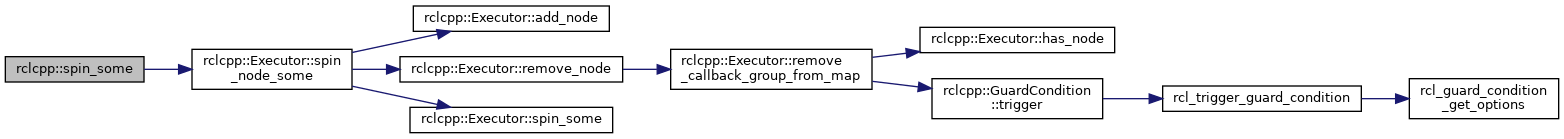

RCLCPP_PUBLIC void	spin_some (rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr)
	Create a default single-threaded executor and execute any immediately available work. More...

RCLCPP_PUBLIC void	spin_some (rclcpp::Node::SharedPtr node_ptr)

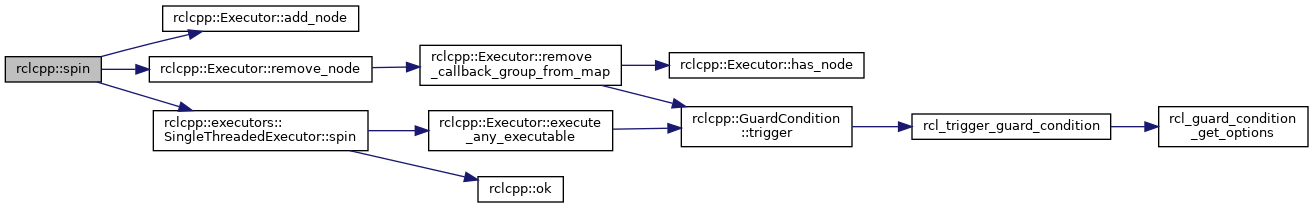

RCLCPP_PUBLIC void	spin (rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr)
	Create a default single-threaded executor and spin the specified node. More...

RCLCPP_PUBLIC void	spin (rclcpp::Node::SharedPtr node_ptr)

template<typename FutureT , typename TimeRepT = int64_t, typename TimeT = std::milli>
rclcpp::FutureReturnCode	spin_until_future_complete (rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr, const FutureT &future, std::chrono::duration< TimeRepT, TimeT > timeout=std::chrono::duration< TimeRepT, TimeT >(-1))

template<typename NodeT = rclcpp::Node, typename FutureT , typename TimeRepT = int64_t, typename TimeT = std::milli>
rclcpp::FutureReturnCode	spin_until_future_complete (std::shared_ptr< NodeT > node_ptr, const FutureT &future, std::chrono::duration< TimeRepT, TimeT > timeout=std::chrono::duration< TimeRepT, TimeT >(-1))

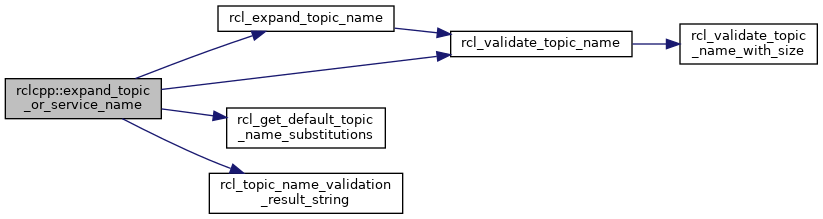

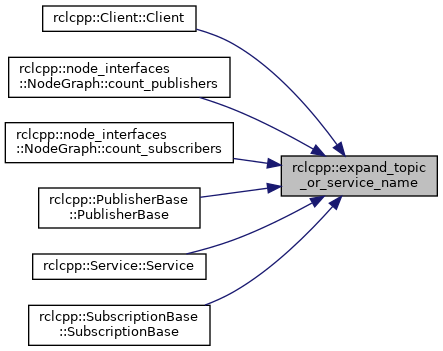

RCLCPP_PUBLIC std::string	expand_topic_or_service_name (const std::string &name, const std::string &node_name, const std::string &namespace_, bool is_service=false)
	Expand a topic or service name and throw if it is not valid. More...

RCLCPP_PUBLIC std::ostream &	operator<< (std::ostream &os, const FutureReturnCode &future_return_code)
	Stream operator for FutureReturnCode.

RCLCPP_PUBLIC std::string	to_string (const FutureReturnCode &future_return_code)
	String conversion function for FutureReturnCode.

template<typename MessageT >
constexpr std::enable_if_t< rosidl_generator_traits::is_message< MessageT >::value, const rosidl_message_type_support_t & >	get_message_type_support_handle ()

template<typename AdaptedType >
constexpr std::enable_if_t< !rosidl_generator_traits::is_message< AdaptedType >::value &&rclcpp::TypeAdapter< AdaptedType >::is_specialized::value, const rosidl_message_type_support_t & >	get_message_type_support_handle ()

template<typename AdaptedType >
constexpr std::enable_if_t< !rosidl_generator_traits::is_message< AdaptedType >::value &&!TypeAdapter< AdaptedType >::is_specialized::value, const rosidl_message_type_support_t & >	get_message_type_support_handle ()

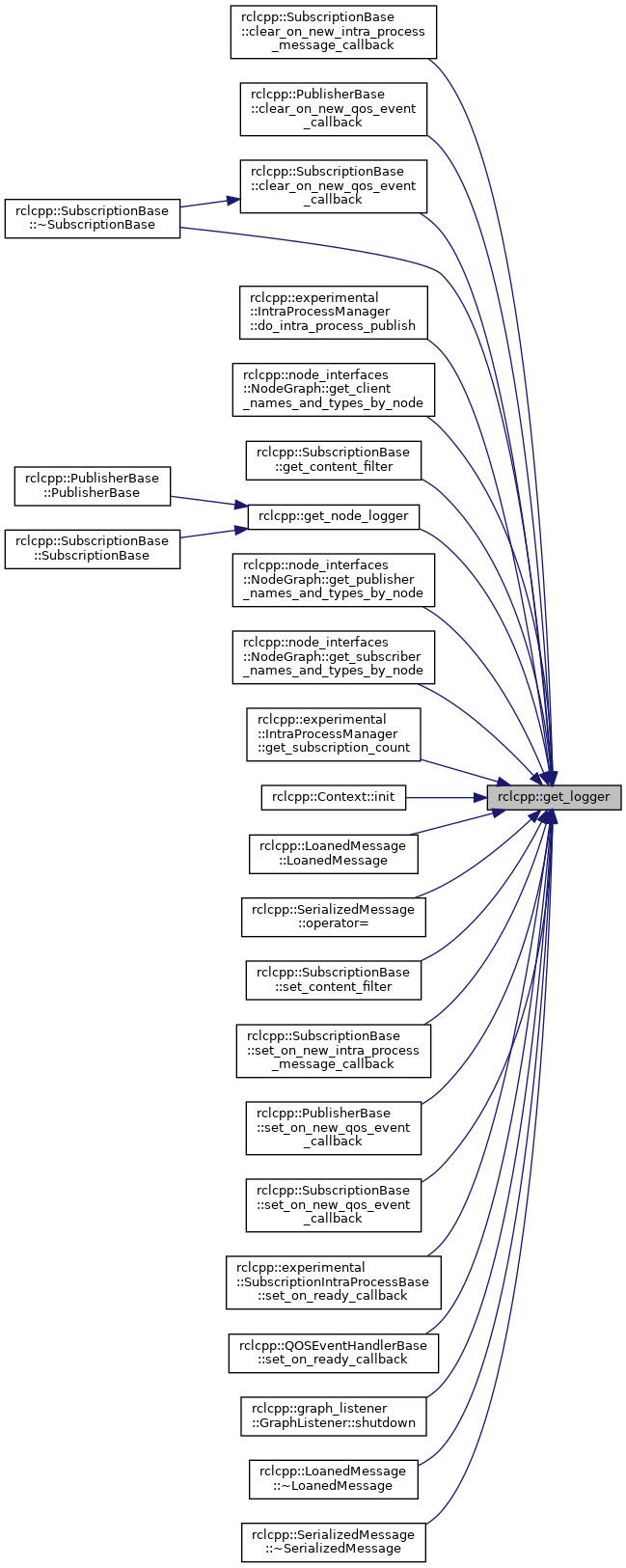

RCLCPP_PUBLIC Logger	get_logger (const std::string &name)
	Return a named logger. More...

RCLCPP_PUBLIC Logger	get_node_logger (const rcl_node_t *node)
	Return a named logger using an rcl_node_t. More...

RCLCPP_PUBLIC rcpputils::fs::path	get_logging_directory ()
	Get the current logging directory. More...

RCLCPP_PUBLIC bool	operator== (const NetworkFlowEndpoint &left, const NetworkFlowEndpoint &right)
	Check if two NetworkFlowEndpoint instances are equal.

RCLCPP_PUBLIC bool	operator!= (const NetworkFlowEndpoint &left, const NetworkFlowEndpoint &right)
	Check if two NetworkFlowEndpoint instances are not equal.

RCLCPP_PUBLIC std::ostream &	operator<< (std::ostream &os, const NetworkFlowEndpoint &network_flow_endpoint)
	Streaming helper for NetworkFlowEndpoint.

RCLCPP_LOCAL std::string	extend_name_with_sub_namespace (const std::string &name, const std::string &sub_namespace)

RCLCPP_PUBLIC std::string	_to_json_dict_entry (const Parameter &param)
	Return a json encoded version of the parameter intended for a dict.

RCLCPP_PUBLIC std::ostream &	operator<< (std::ostream &os, const rclcpp::Parameter &pv)

RCLCPP_PUBLIC std::ostream &	operator<< (std::ostream &os, const std::vector< Parameter > &parameters)

RCLCPP_PUBLIC ParameterMap	parameter_map_from (const rcl_params_t *const c_params)

RCLCPP_PUBLIC ParameterMap	parameter_map_from (const rcl_params_t const c_params, const char node_fqn)

RCLCPP_PUBLIC ParameterValue	parameter_value_from (const rcl_variant_t *const c_value)

RCLCPP_PUBLIC ParameterMap	parameter_map_from_yaml_file (const std::string &yaml_filename)

RCLCPP_PUBLIC std::string	to_string (ParameterType type)
	Return the name of a parameter type.

RCLCPP_PUBLIC std::ostream &	operator<< (std::ostream &os, ParameterType type)

RCLCPP_PUBLIC std::string	to_string (const ParameterValue &type)
	Return the value of a parameter as a string.

template<typename MessageT , typename AllocatorT , typename PublisherT >
PublisherFactory	create_publisher_factory (const rclcpp::PublisherOptionsWithAllocator< AllocatorT > &options)
	Return a PublisherFactory with functions setup for creating a PublisherT<MessageT, AllocatorT>.

RCLCPP_PUBLIC std::string	qos_policy_name_from_kind (rmw_qos_policy_kind_t policy_kind)

RCLCPP_PUBLIC bool	operator== (const QoS &left, const QoS &right)
	Check if two QoS profiles are exactly equal in all policy values.

RCLCPP_PUBLIC bool	operator!= (const QoS &left, const QoS &right)

RCLCPP_PUBLIC QoSCheckCompatibleResult	qos_check_compatible (const QoS &publisher_qos, const QoS &subscription_qos)
	Check if two QoS profiles are compatible. More...

RCLCPP_PUBLIC const char *	qos_policy_kind_to_cstr (const QosPolicyKind &qpk)

RCLCPP_PUBLIC std::ostream &	operator<< (std::ostream &os, const QosPolicyKind &qpk)

template<typename Callable >
ScopeExit< Callable >	make_scope_exit (Callable callable)

template<typename MessageT , typename CallbackT , typename AllocatorT , typename SubscriptionT = rclcpp::Subscription<MessageT, AllocatorT>, typename MessageMemoryStrategyT = typename SubscriptionT::MessageMemoryStrategyType, typename ROSMessageType = typename SubscriptionT::ROSMessageType>
SubscriptionFactory	create_subscription_factory (CallbackT &&callback, const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &options, typename MessageMemoryStrategyT::SharedPtr msg_mem_strat, std::shared_ptr< rclcpp::topic_statistics::SubscriptionTopicStatistics< ROSMessageType >> subscription_topic_stats=nullptr)
	Return a SubscriptionFactory setup to create a SubscriptionT<MessageT, AllocatorT>. More...

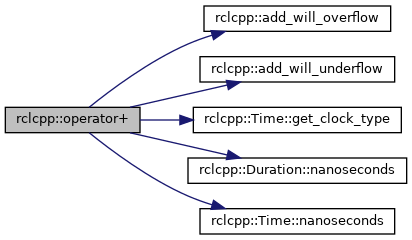

RCLCPP_PUBLIC Time	operator+ (const rclcpp::Duration &lhs, const rclcpp::Time &rhs)

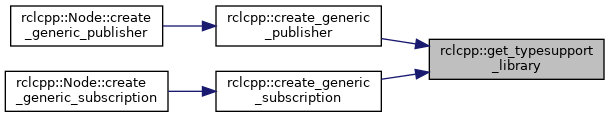

RCLCPP_PUBLIC std::shared_ptr< rcpputils::SharedLibrary >	get_typesupport_library (const std::string &type, const std::string &typesupport_identifier)
	Load the type support library for the given type. More...

RCLCPP_PUBLIC const rosidl_message_type_support_t *	get_typesupport_handle (const std::string &type, const std::string &typesupport_identifier, rcpputils::SharedLibrary &library)
	Extract the type support handle from the library. More...

RCLCPP_PUBLIC void	init (int argc, char const const argv, const InitOptions &init_options=InitOptions(), SignalHandlerOptions signal_handler_options=SignalHandlerOptions::All)
	Initialize communications via the rmw implementation and set up a global signal handler. More...

RCLCPP_PUBLIC bool	install_signal_handlers (SignalHandlerOptions signal_handler_options=SignalHandlerOptions::All)
	Install the global signal handler for rclcpp. More...

RCLCPP_PUBLIC bool	signal_handlers_installed ()
	Return true if the signal handlers are installed, otherwise false.

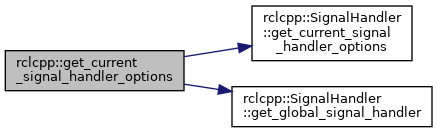

RCLCPP_PUBLIC SignalHandlerOptions	get_current_signal_handler_options ()
	Get the current signal handler options. More...

RCLCPP_PUBLIC bool	uninstall_signal_handlers ()
	Uninstall the global signal handler for rclcpp. More...

RCLCPP_PUBLIC std::vector< std::string >	init_and_remove_ros_arguments (int argc, char const const argv, const InitOptions &init_options=InitOptions())
	Initialize communications via the rmw implementation and set up a global signal handler. More...

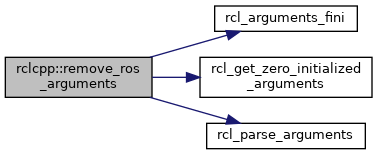

RCLCPP_PUBLIC std::vector< std::string >	remove_ros_arguments (int argc, char const const argv)
	Remove ROS-specific arguments from argument vector. More...

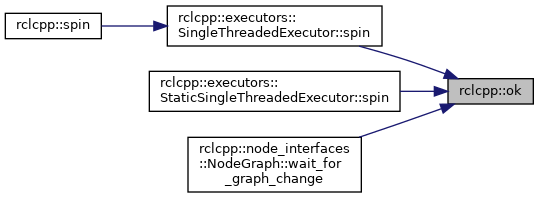

RCLCPP_PUBLIC bool	ok (rclcpp::Context::SharedPtr context=nullptr)
	Check rclcpp's status. More...

RCLCPP_PUBLIC bool	shutdown (rclcpp::Context::SharedPtr context=nullptr, const std::string &reason="user called rclcpp::shutdown()")
	Shutdown rclcpp context, invalidating it for derived entities. More...

RCLCPP_PUBLIC void	on_shutdown (std::function< void()> callback, rclcpp::Context::SharedPtr context=nullptr)
	Register a function to be called when shutdown is called on the context. More...

RCLCPP_PUBLIC bool	sleep_for (const std::chrono::nanoseconds &nanoseconds, rclcpp::Context::SharedPtr context=nullptr)
	Use the global condition variable to block for the specified amount of time. More...

template<typename T >
bool	add_will_overflow (const T x, const T y)
	Safely check if addition will overflow. More...

template<typename T >
bool	add_will_underflow (const T x, const T y)
	Safely check if addition will underflow. More...

template<typename T >
bool	sub_will_overflow (const T x, const T y)
	Safely check if subtraction will overflow. More...

template<typename T >
bool	sub_will_underflow (const T x, const T y)
	Safely check if subtraction will underflow. More...

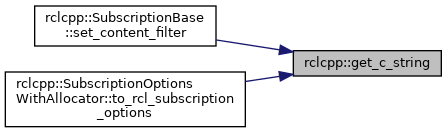

RCLCPP_PUBLIC const char *	get_c_string (const char *string_in)
	Return the given string. More...

RCLCPP_PUBLIC const char *	get_c_string (const std::string &string_in)
	Return the C string from the given std::string. More...

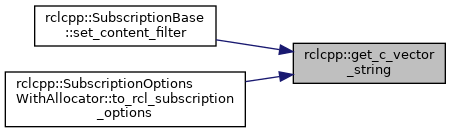

RCLCPP_PUBLIC std::vector< const char * >	get_c_vector_string (const std::vector< std::string > &strings_in)
	Return the std::vector of C string from the given std::vector<std::string>. More...

template<class MsgT , class Rep = int64_t, class Period = std::milli>
bool	wait_for_message (MsgT &out, std::shared_ptr< rclcpp::Subscription< MsgT >> subscription, std::shared_ptr< rclcpp::Context > context, std::chrono::duration< Rep, Period > time_to_wait=std::chrono::duration< Rep, Period >(-1))
	Wait for the next incoming message. More...

template<class MsgT , class Rep = int64_t, class Period = std::milli>
bool	wait_for_message (MsgT &out, rclcpp::Node::SharedPtr node, const std::string &topic, std::chrono::duration< Rep, Period > time_to_wait=std::chrono::duration< Rep, Period >(-1), const rclcpp::QoS &qos=rclcpp::SystemDefaultsQoS())
	Wait for the next incoming message. More...

void	bounds_check_duration_sum (int64_t lhsns, int64_t rhsns, uint64_t max)

void	bounds_check_duration_difference (int64_t lhsns, int64_t rhsns, uint64_t max)

void	bounds_check_duration_scale (int64_t dns, double scale, uint64_t max)

void	copy_rcl_message (const rcl_serialized_message_t &from, rcl_serialized_message_t &to)

bool	ok (Context::SharedPtr context)

bool	shutdown (Context::SharedPtr context, const std::string &reason)

void	on_shutdown (std::function< void()> callback, Context::SharedPtr context)

bool	sleep_for (const std::chrono::nanoseconds &nanoseconds, Context::SharedPtr context)

Detailed Description

Versions of rosidl_typesupport_cpp::get_message_type_support_handle that handle adapted types.

Typedef Documentation

◆ StaticWaitSet

template<std::size_t NumberOfSubscriptions, std::size_t NumberOfGuardCondtions, std::size_t NumberOfTimers, std::size_t NumberOfClients, std::size_t NumberOfServices, std::size_t NumberOfWaitables>

using rclcpp::StaticWaitSet = typedef rclcpp::WaitSetTemplate< rclcpp::wait_set_policies::SequentialSynchronization, rclcpp::wait_set_policies::StaticStorage< NumberOfSubscriptions, NumberOfGuardCondtions, NumberOfTimers, NumberOfClients, NumberOfServices, NumberOfWaitables > >

WaitSet configuration which does not allow changes after construction.

This wait set requires that you specify all entities at construction, and prevents you from calling the typical add and remove functions. It also requires that you specify how many of each item there will be as a template argument.

It will share ownership of the entities until destroyed, therefore it will prevent the destruction of entities so long as the wait set exists, even if the user lets their copy of the shared pointer to the entity go out of scope.

Since the wait set cannot be mutated, it does not need to be thread-safe.

See also: rclcpp::WaitSetTemplate for API documentation

Definition at line 73 of file wait_set.hpp.

◆ ThreadSafeWaitSet

using rclcpp::ThreadSafeWaitSet = typedef rclcpp::WaitSetTemplate< rclcpp::wait_set_policies::ThreadSafeSynchronization, rclcpp::wait_set_policies::DynamicStorage >

Like WaitSet, this configuration is dynamic, but is also thread-safe.

This wait set allows you to add and remove items dynamically, and it will automatically remove items that are let out of scope each time wait() or prune_destroyed_entities() is called.

It will also ensure that adding and removing items explicitly from the wait set is done in a thread-safe way, protecting against concurrent add and deletes, as well as add and deletes during a wait(). This thread-safety comes at some overhead and the use of thread synchronization primitives.

See also: rclcpp::WaitSetTemplate for API documentation

Definition at line 99 of file wait_set.hpp.

◆ WaitSet

using rclcpp::WaitSet = typedef rclcpp::WaitSetTemplate< rclcpp::wait_set_policies::SequentialSynchronization, rclcpp::wait_set_policies::DynamicStorage >

Most common user configuration of a WaitSet, which is dynamic but not thread-safe.

This wait set allows you to add and remove items dynamically, and it will automatically remove items that are let out of scope each time wait() or prune_destroyed_entities() is called.

It will not, however, provide thread-safety for adding and removing entities while waiting.

See also: rclcpp::WaitSetTemplate for API documentation

Definition at line 45 of file wait_set.hpp.

Enumeration Type Documentation

◆ FutureReturnCode

enum rclcpp::FutureReturnCode

strong

Return codes to be used with spin_until_future_complete.

SUCCESS: The future is complete and can be accessed with "get" without blocking. This does not indicate that the operation succeeded; "get" may still throw an exception. INTERRUPTED: The future is not complete, spinning was interrupted by Ctrl-C or another error. TIMEOUT: Spinning timed out.

Definition at line 33 of file future_return_code.hpp.

◆ IntraProcessBufferType

enum rclcpp::IntraProcessBufferType

strong

Used as argument in create_publisher and create_subscriber when intra-process communication is enabled

Enumerator
SharedPtr	Set the data type used in the intra-process buffer as std::shared_ptr<MessageT>
UniquePtr	Set the data type used in the intra-process buffer as std::unique_ptr<MessageT>
CallbackDefault	Set the data type used in the intra-process buffer as the same used in the callback.

Definition at line 23 of file intra_process_buffer_type.hpp.

◆ IntraProcessSetting

enum rclcpp::IntraProcessSetting

strong

Used as argument in create_publisher and create_subscriber.

Enumerator
Enable	Explicitly enable intraprocess comm at publisher/subscription level.
Disable	Explicitly disable intraprocess comm at publisher/subscription level.
NodeDefault	Take intraprocess configuration from the node.

Definition at line 22 of file intra_process_setting.hpp.

◆ SignalHandlerOptions

enum rclcpp::SignalHandlerOptions

strong

Option to indicate which signal handlers rclcpp should install.

Enumerator
All	Install both sigint and sigterm, this is the default behavior.
SigInt	Install only a sigint handler.
SigTerm	Install only a sigterm handler.
None	Do not install any signal handler.

Definition at line 47 of file utilities.hpp.

◆ TopicStatisticsState

enum rclcpp::TopicStatisticsState

strong

Represent the state of topic statistics collector. Used as argument in create_subscriber.

Enumerator
Enable	Explicitly enable topic statistics at subscription level.
Disable	Explicitly disable topic statistics at subscription level.
NodeDefault	Take topic statistics state from the node.

Definition at line 23 of file topic_statistics_state.hpp.

Function Documentation

◆ add_will_overflow()

template<typename T >

bool rclcpp::add_will_overflow	(	const T	x,
		const T	y
	)

Safely check if addition will overflow.

The type of the operands, T, should have defined std::numeric_limits<T>::max(), >, < and - operators.

Parameters

[in]	x	is the first addend.
[in]	y	is the second addend.

Template Parameters

T	is type of the operands.

Returns: True if the x + y sum is greater than T::max value.

Definition at line 248 of file utilities.hpp.

Referenced by operator+(), rclcpp::Time::operator+(), and rclcpp::Time::operator+=().

Here is the caller graph for this function:

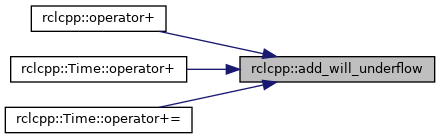

◆ add_will_underflow()

template<typename T >

bool rclcpp::add_will_underflow	(	const T	x,
		const T	y
	)

Safely check if addition will underflow.

The type of the operands, T, should have defined std::numeric_limits<T>::min(), >, < and - operators.

Parameters

[in]	x	is the first addend.
[in]	y	is the second addend.

Template Parameters

T	is type of the operands.

Returns: True if the x + y sum is less than T::min value.

Definition at line 265 of file utilities.hpp.

Referenced by operator+(), rclcpp::Time::operator+(), and rclcpp::Time::operator+=().

Here is the caller graph for this function:

◆ create_client()

template<typename ServiceT >

rclcpp::Client<ServiceT>::SharedPtr rclcpp::create_client	(	std::shared_ptr< node_interfaces::NodeBaseInterface >	node_base,
		std::shared_ptr< node_interfaces::NodeGraphInterface >	node_graph,
		std::shared_ptr< node_interfaces::NodeServicesInterface >	node_services,
		const std::string &	service_name,
		const rmw_qos_profile_t &	qos_profile,
		rclcpp::CallbackGroup::SharedPtr	group
	)

Create a service client with a given type.

Definition at line 32 of file create_client.hpp.

References rcl_client_options_s::qos, and rcl_client_get_default_options().

Here is the call graph for this function:

◆ create_generic_publisher()

template<typename AllocatorT = std::allocator<void>>

std::shared_ptr<GenericPublisher> rclcpp::create_generic_publisher	(	rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr	topics_interface,
		const std::string &	topic_name,
		const std::string &	topic_type,
		const rclcpp::QoS &	qos,
		const rclcpp::PublisherOptionsWithAllocator< AllocatorT > &	options = `( rclcpp::PublisherOptionsWithAllocator<AllocatorT>() )`
	)

Create and return a GenericPublisher.

The returned pointer will never be empty, but this function can throw various exceptions, for instance when the message's package can not be found on the AMENT_PREFIX_PATH.

Parameters

topics_interface	NodeTopicsInterface pointer used in parts of the setup
topic_name	Topic name
topic_type	Topic type
qos	QoS settings
options	Publisher options. Not all publisher options are currently respected, the only relevant options for this publisher are `event_callbacks`, `use_default_callbacks`, and `callback_group`.

Definition at line 45 of file create_generic_publisher.hpp.

References get_typesupport_library().

Referenced by rclcpp::Node::create_generic_publisher().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_generic_subscription()

template<typename AllocatorT = std::allocator<void>>

std::shared_ptr<GenericSubscription> rclcpp::create_generic_subscription	(	rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr	topics_interface,
		const std::string &	topic_name,
		const std::string &	topic_type,
		const rclcpp::QoS &	qos,
		std::function< void(std::shared_ptr< rclcpp::SerializedMessage >)>	callback,
		const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &	options = `( rclcpp::SubscriptionOptionsWithAllocator<AllocatorT>() )`
	)

Create and return a GenericSubscription.

The returned pointer will never be empty, but this function can throw various exceptions, for instance when the message's package can not be found on the AMENT_PREFIX_PATH.

Parameters

topics_interface	NodeTopicsInterface pointer used in parts of the setup.
topic_name	Topic name
topic_type	Topic type
qos	QoS settings
callback	Callback for new messages of serialized form
options	Publisher options. Not all publisher options are currently respected, the only relevant options for this publisher are `event_callbacks`, `use_default_callbacks`, and `callback_group`.

Definition at line 49 of file create_generic_subscription.hpp.

References get_typesupport_library().

Referenced by rclcpp::Node::create_generic_subscription().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_publisher()

template<typename MessageT , typename AllocatorT = std::allocator<void>, typename PublisherT = rclcpp::Publisher<MessageT, AllocatorT>, typename NodeT >

std::shared_ptr<PublisherT> rclcpp::create_publisher	(	NodeT &&	node,
		const std::string &	topic_name,
		const rclcpp::QoS &	qos,
		const rclcpp::PublisherOptionsWithAllocator< AllocatorT > &	options = `( rclcpp::PublisherOptionsWithAllocator<AllocatorT>() )`
	)

Create and return a publisher of the given MessageT type.

The NodeT type only needs to have a method called get_node_topics_interface() which returns a shared_ptr to a NodeTopicsInterface.

In case options.qos_overriding_options is enabling qos parameter overrides, NodeT must also have a method called get_node_parameters_interface() which returns a shared_ptr to a NodeParametersInterface.

Definition at line 94 of file create_publisher.hpp.

◆ create_service()

template<typename ServiceT , typename CallbackT >

rclcpp::Service<ServiceT>::SharedPtr rclcpp::create_service	(	std::shared_ptr< node_interfaces::NodeBaseInterface >	node_base,
		std::shared_ptr< node_interfaces::NodeServicesInterface >	node_services,
		const std::string &	service_name,
		CallbackT &&	callback,
		const rmw_qos_profile_t &	qos_profile,
		rclcpp::CallbackGroup::SharedPtr	group
	)

Create a service with a given type.

Definition at line 34 of file create_service.hpp.

References rcl_service_options_s::qos, and rcl_service_get_default_options().

Here is the call graph for this function:

◆ create_subscription() [1/2]

template<typename MessageT , typename CallbackT , typename AllocatorT = std::allocator<void>, typename SubscriptionT = rclcpp::Subscription<MessageT, AllocatorT>, typename MessageMemoryStrategyT = typename SubscriptionT::MessageMemoryStrategyType, typename NodeT >

std::shared_ptr<SubscriptionT> rclcpp::create_subscription	(	NodeT &	node,
		const std::string &	topic_name,
		const rclcpp::QoS &	qos,
		CallbackT &&	callback,
		const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &	options = `( rclcpp::SubscriptionOptionsWithAllocator<AllocatorT>() )`,
		typename MessageMemoryStrategyT::SharedPtr	msg_mem_strat = `( MessageMemoryStrategyT::create_default() )`
	)

Create and return a subscription of the given MessageT type.

The NodeT type only needs to have a method called get_node_topics_interface() which returns a shared_ptr to a NodeTopicsInterface, or be a NodeTopicsInterface pointer itself.

In case options.qos_overriding_options is enabling qos parameter overrides, NodeT must also have a method called get_node_parameters_interface() which returns a shared_ptr to a NodeParametersInterface.

Template Parameters

MessageT
CallbackT
AllocatorT
SubscriptionT
MessageMemoryStrategyT
NodeT

Parameters

node
topic_name
qos
callback
options
msg_mem_strat

Returns: the created subscription

Exceptions

std::invalid_argument if topic statistics is enabled and the publish period is less than or equal to zero.

Definition at line 177 of file create_subscription.hpp.

◆ create_subscription() [2/2]

template<typename MessageT , typename CallbackT , typename AllocatorT = std::allocator<void>, typename SubscriptionT = rclcpp::Subscription<MessageT, AllocatorT>, typename MessageMemoryStrategyT = typename SubscriptionT::MessageMemoryStrategyType>

std::shared_ptr<SubscriptionT> rclcpp::create_subscription	(	rclcpp::node_interfaces::NodeParametersInterface::SharedPtr &	node_parameters,
		rclcpp::node_interfaces::NodeTopicsInterface::SharedPtr &	node_topics,
		const std::string &	topic_name,
		const rclcpp::QoS &	qos,
		CallbackT &&	callback,
		const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &	options = `( rclcpp::SubscriptionOptionsWithAllocator<AllocatorT>() )`,
		typename MessageMemoryStrategyT::SharedPtr	msg_mem_strat = `( MessageMemoryStrategyT::create_default() )`
	)

Create and return a subscription of the given MessageT type.

See create_subscription().

Definition at line 206 of file create_subscription.hpp.

◆ create_subscription_factory()

template<typename MessageT , typename CallbackT , typename AllocatorT , typename SubscriptionT = rclcpp::Subscription<MessageT, AllocatorT>, typename MessageMemoryStrategyT = typename SubscriptionT::MessageMemoryStrategyType, typename ROSMessageType = typename SubscriptionT::ROSMessageType>

SubscriptionFactory rclcpp::create_subscription_factory	(	CallbackT &&	callback,
		const rclcpp::SubscriptionOptionsWithAllocator< AllocatorT > &	options,
		typename MessageMemoryStrategyT::SharedPtr	msg_mem_strat,
		std::shared_ptr< rclcpp::topic_statistics::SubscriptionTopicStatistics< ROSMessageType >>	subscription_topic_stats = `nullptr`
	)

Return a SubscriptionFactory setup to create a SubscriptionT<MessageT, AllocatorT>.

Parameters

[in]	callback	The user-defined callback function to receive a message
[in]	options	Additional options for the creation of the Subscription.
[in]	msg_mem_strat	The message memory strategy to use for allocating messages.
[in]	subscription_topic_stats	Optional stats callback for topic_statistics

Definition at line 82 of file subscription_factory.hpp.

References rclcpp::AnySubscriptionCallback< MessageT, AllocatorT >::set().

Here is the call graph for this function:

◆ create_timer()

template<typename CallbackT >

rclcpp::TimerBase::SharedPtr rclcpp::create_timer	(	std::shared_ptr< node_interfaces::NodeBaseInterface >	node_base,
		std::shared_ptr< node_interfaces::NodeTimersInterface >	node_timers,
		rclcpp::Clock::SharedPtr	clock,
		rclcpp::Duration	period,
		CallbackT &&	callback,
		rclcpp::CallbackGroup::SharedPtr	group = `nullptr`
	)

Create a timer with a given clock

Definition at line 36 of file create_timer.hpp.

References rclcpp::Duration::to_chrono().

Referenced by create_timer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_wall_timer()

template<typename DurationRepT , typename DurationT , typename CallbackT >

rclcpp::WallTimer<CallbackT>::SharedPtr rclcpp::create_wall_timer	(	std::chrono::duration< DurationRepT, DurationT >	period,
		CallbackT	callback,
		rclcpp::CallbackGroup::SharedPtr	group,
		node_interfaces::NodeBaseInterface *	node_base,
		node_interfaces::NodeTimersInterface *	node_timers
	)

Convenience method to create a timer with node resources.

Template Parameters

DurationRepT
DurationT
CallbackT

Parameters

period	period to execute callback. This duration must be 0 <= period < nanoseconds::max()
callback	callback to execute via the timer period
group
node_base
node_timers

Returns

Exceptions

std::invalid argument if either node_base or node_timers are null, or period is negative or too large

Definition at line 90 of file create_timer.hpp.

References rclcpp::node_interfaces::NodeTimersInterface::add_timer(), and rclcpp::node_interfaces::NodeBaseInterface::get_context().

Referenced by rclcpp::Node::create_wall_timer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ expand_topic_or_service_name()

std::string rclcpp::expand_topic_or_service_name	(	const std::string &	name,
		const std::string &	node_name,
		const std::string &	namespace_,
		bool	is_service = `false`
	)

Expand a topic or service name and throw if it is not valid.

This function can be used to "just" validate a topic or service name too, since expanding the topic name is required to fully validate a name.

If the name is invalid, then InvalidTopicNameError is thrown or InvalidServiceNameError if is_service is true.

This function can take any form of a topic or service name, i.e. it does not have to be a fully qualified name. The node name and namespace are used to expand it if necessary while validating it.

Expansion is done with rcl_expand_topic_name. The validation is doen with rcl_validate_topic_name and rmw_validate_full_topic_name, so details about failures can be found in the documentation for those functions.

Parameters

name	the topic or service name to be validated
node_name	the name of the node associated with the name
namespace_	the namespace of the node associated with the name
is_service	if true InvalidServiceNameError is thrown instead

Returns: expanded (and validated) topic name

Exceptions

InvalidTopicNameError	if name is invalid and is_service is false
InvalidServiceNameError	if name is invalid and is_service is true
std::bad_alloc	if memory cannot be allocated
RCLError	if an unexpect error occurs
std::runtime_error	if the topic name is unexpectedly valid or, if the rcl name is invalid or if the rcl namespace is invalid

Definition at line 32 of file expand_topic_or_service_name.cpp.

References rcl_expand_topic_name(), rcl_get_default_allocator, rcl_get_default_topic_name_substitutions(), RCL_RET_BAD_ALLOC, RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_NODE_INVALID_NAME, RCL_RET_NODE_INVALID_NAMESPACE, RCL_RET_OK, RCL_RET_TOPIC_NAME_INVALID, RCL_RET_UNKNOWN_SUBSTITUTION, RCL_TOPIC_NAME_VALID, rcl_topic_name_validation_result_string(), and rcl_validate_topic_name().

Referenced by rclcpp::Client< ServiceT >::Client(), rclcpp::node_interfaces::NodeGraph::count_publishers(), rclcpp::node_interfaces::NodeGraph::count_subscribers(), rclcpp::PublisherBase::PublisherBase(), rclcpp::Service< ServiceT >::Service(), and rclcpp::SubscriptionBase::SubscriptionBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_c_string() [1/2]

const char * rclcpp::get_c_string ( const char * string_in )

Return the given string.

This function is overloaded to transform any string to C-style string.

Parameters

[in] string_in is the string to be returned

Returns: the given string

Definition at line 206 of file utilities.cpp.

Referenced by rclcpp::SubscriptionBase::set_content_filter(), and rclcpp::SubscriptionOptionsWithAllocator< Allocator >::to_rcl_subscription_options().

Here is the caller graph for this function:

◆ get_c_string() [2/2]

const char * rclcpp::get_c_string ( const std::string & string_in )

Return the C string from the given std::string.

Parameters

[in] string_in is a std::string

Returns: the C string from the std::string

Definition at line 212 of file utilities.cpp.

◆ get_c_vector_string()

std::vector< const char * > rclcpp::get_c_vector_string ( const std::vector< std::string > & strings_in )

Return the std::vector of C string from the given std::vector<std::string>.

Parameters

[in] strings_in is a std::vector of std::string

Returns: the std::vector of C string from the std::vector<std::string>

Definition at line 218 of file utilities.cpp.

Referenced by rclcpp::SubscriptionBase::set_content_filter(), and rclcpp::SubscriptionOptionsWithAllocator< Allocator >::to_rcl_subscription_options().

Here is the caller graph for this function:

◆ get_contexts()

std::vector< Context::SharedPtr > rclcpp::get_contexts ( )

Return a copy of the list of context shared pointers.

This function is thread-safe.

Definition at line 523 of file context.cpp.

◆ get_current_signal_handler_options()

SignalHandlerOptions rclcpp::get_current_signal_handler_options ( )

Get the current signal handler options.

If no signal handler is installed, SignalHandlerOptions::None is returned.

Definition at line 59 of file utilities.cpp.

References rclcpp::SignalHandler::get_current_signal_handler_options(), and rclcpp::SignalHandler::get_global_signal_handler().

Here is the call graph for this function:

◆ get_logger()

Logger rclcpp::get_logger ( const std::string & name )

Return a named logger.

The returned logger's name will include any naming conventions, such as a name prefix. Currently there are no such naming conventions but they may be introduced in the future.

Parameters

[in] name the name of the logger

Returns: a logger with the fully-qualified name including naming conventions, or; a dummy logger if logging is disabled.

Definition at line 27 of file logger.cpp.

Referenced by rclcpp::SubscriptionBase::clear_on_new_intra_process_message_callback(), rclcpp::PublisherBase::clear_on_new_qos_event_callback(), rclcpp::SubscriptionBase::clear_on_new_qos_event_callback(), rclcpp::experimental::IntraProcessManager::do_intra_process_publish(), rclcpp::node_interfaces::NodeGraph::get_client_names_and_types_by_node(), rclcpp::SubscriptionBase::get_content_filter(), get_node_logger(), rclcpp::node_interfaces::NodeGraph::get_publisher_names_and_types_by_node(), rclcpp::node_interfaces::NodeGraph::get_subscriber_names_and_types_by_node(), rclcpp::experimental::IntraProcessManager::get_subscription_count(), rclcpp::Context::init(), rclcpp::LoanedMessage< MessageT, AllocatorT >::LoanedMessage(), rclcpp::SerializedMessage::operator=(), rclcpp::SubscriptionBase::set_content_filter(), rclcpp::SubscriptionBase::set_on_new_intra_process_message_callback(), rclcpp::PublisherBase::set_on_new_qos_event_callback(), rclcpp::SubscriptionBase::set_on_new_qos_event_callback(), rclcpp::experimental::SubscriptionIntraProcessBase::set_on_ready_callback(), rclcpp::QOSEventHandlerBase::set_on_ready_callback(), rclcpp::graph_listener::GraphListener::shutdown(), rclcpp::LoanedMessage< MessageT, AllocatorT >::~LoanedMessage(), rclcpp::SerializedMessage::~SerializedMessage(), and rclcpp::SubscriptionBase::~SubscriptionBase().

Here is the caller graph for this function:

◆ get_logging_directory()

rcpputils::fs::path rclcpp::get_logging_directory ( )

Get the current logging directory.

For more details of how the logging directory is determined, see rcl_logging_get_logging_directory().

Returns: the logging directory being used.

Exceptions

rclcpp::exceptions::RCLError if an unexpected error occurs.

Definition at line 52 of file logger.cpp.

◆ get_node_logger()

Logger rclcpp::get_node_logger ( const rcl_node_t * node )

Return a named logger using an rcl_node_t.

This is a convenience function that does error checking and returns the node logger name, or "rclcpp" if it is unable to get the node name.

Parameters

[in] node the rcl node from which to get the logger name

Returns: a logger based on the node name, or "rclcpp" if there's an error

Definition at line 38 of file logger.cpp.

References get_logger(), and rcl_node_get_logger_name().

Referenced by rclcpp::PublisherBase::PublisherBase(), and rclcpp::SubscriptionBase::SubscriptionBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_typesupport_handle()

const rosidl_message_type_support_t * rclcpp::get_typesupport_handle	(	const std::string &	type,
		const std::string &	typesupport_identifier,
		rcpputils::SharedLibrary &	library
	)

Extract the type support handle from the library.

The library needs to match the topic type. The shared library must stay loaded for the lifetime of the result.

Parameters

[in]	type	The topic type, e.g. "std_msgs/msg/String"
[in]	typesupport_identifier	Type support identifier, typically "rosidl_typesupport_cpp"
[in]	library	The shared type support library

Returns: A type support handle

Definition at line 105 of file typesupport_helpers.cpp.

◆ get_typesupport_library()

std::shared_ptr< rcpputils::SharedLibrary > rclcpp::get_typesupport_library	(	const std::string &	type,
		const std::string &	typesupport_identifier
	)

Load the type support library for the given type.

Parameters

[in]	type	The topic type, e.g. "std_msgs/msg/String"
[in]	typesupport_identifier	Type support identifier, typically "rosidl_typesupport_cpp"

Returns: A shared library

Definition at line 97 of file typesupport_helpers.cpp.

Referenced by create_generic_publisher(), and create_generic_subscription().

Here is the caller graph for this function:

◆ init()

void rclcpp::init	(	int	argc,
		char const const	argv,
		const InitOptions &	init_options = `InitOptions()`,
		SignalHandlerOptions	signal_handler_options = `SignalHandlerOptions::All`
	)

Initialize communications via the rmw implementation and set up a global signal handler.

Initializes the global context which is accessible via the function rclcpp::contexts::get_global_default_context(). Also, installs the global signal handlers with the function rclcpp::install_signal_handlers().

See also: rclcpp::Context::init() for more details on arguments and possible exceptions

Parameters

[in]	argc	number of command-line arguments to parse.
[in]	argv	array of command-line arguments to parse.
[in]	init_options	initialization options to apply.
[in]	signal_handler_options	option to indicate which signal handlers should be installed.

Definition at line 34 of file utilities.cpp.

References install_signal_handlers().

Referenced by init_and_remove_ros_arguments().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init_and_remove_ros_arguments()

std::vector< std::string > rclcpp::init_and_remove_ros_arguments	(	int	argc,
		char const const	argv,
		const InitOptions &	init_options = `InitOptions()`
	)

Initialize communications via the rmw implementation and set up a global signal handler.

Additionally removes ROS-specific arguments from the argument vector.

See also: rclcpp::Context::init() for more details on arguments and possible exceptions

Returns: Members of the argument vector that are not ROS arguments.

Exceptions

anything remove_ros_arguments can throw

Definition at line 113 of file utilities.cpp.

References init(), and rcl_get_default_allocator.

Here is the call graph for this function:

◆ install_signal_handlers()

bool rclcpp::install_signal_handlers ( SignalHandlerOptions signal_handler_options = SignalHandlerOptions::All )

Install the global signal handler for rclcpp.

This function should only need to be run one time per process. It is implicitly run by rclcpp::init(), and therefore this function does not need to be run manually if rclcpp::init() has already been run.

The signal handler will shutdown all initialized context. It will also interrupt any blocking functions in ROS allowing them react to any changes in the state of the system (like shutdown).

This function is thread-safe.

Parameters

[in] signal_handler_options option to indicate which signal handlers should be installed.

Returns: true if signal handler was installed by this function, false if already installed.

Definition at line 47 of file utilities.cpp.

References rclcpp::SignalHandler::get_global_signal_handler(), and rclcpp::SignalHandler::install().

Referenced by init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ok()

RCLCPP_PUBLIC bool rclcpp::ok ( rclcpp::Context::SharedPtr context = nullptr )

Check rclcpp's status.

This may return false for a context which has been shutdown, or for a context that was shutdown due to SIGINT being received by the rclcpp signal handler.

If nullptr is given for the context, then the global context is used, i.e. the context initialized by rclcpp::init().

Parameters

[in] context Optional check for shutdown of this Context.

Returns: true if shutdown has been called, false otherwise

Referenced by rclcpp::executors::SingleThreadedExecutor::spin(), rclcpp::executors::StaticSingleThreadedExecutor::spin(), and rclcpp::node_interfaces::NodeGraph::wait_for_graph_change().

Here is the caller graph for this function:

◆ on_shutdown()

RCLCPP_PUBLIC void rclcpp::on_shutdown	(	std::function< void()>	callback,
		rclcpp::Context::SharedPtr	context = `nullptr`
	)

Register a function to be called when shutdown is called on the context.

If nullptr is given for the context, then the global context is used, i.e. the context initialized by rclcpp::init().

These callbacks are called when the associated Context is shutdown with the Context::shutdown() method. When shutdown by the SIGINT handler, shutdown, and therefore these callbacks, is called asynchronously from the dedicated signal handling thread, at some point after the SIGINT signal is received.

See also: rclcpp::Context::on_shutdown()

Parameters

[in]	callback	to be called when the given context is shutdown
[in]	context	with which to associate the context

◆ operator+()

Time rclcpp::operator+	(	const rclcpp::Duration &	lhs,
		const rclcpp::Time &	rhs
	)

Exceptions

std::overflow_error if addition leads to overflow

Definition at line 237 of file time.cpp.

References add_will_overflow(), add_will_underflow(), rclcpp::Time::get_clock_type(), rclcpp::Duration::nanoseconds(), and rclcpp::Time::nanoseconds().

Here is the call graph for this function:

◆ parameter_map_from() [1/2]

ParameterMap rclcpp::parameter_map_from ( const rcl_params_t *const c_params )

Convert parameters from rcl_yaml_param_parser into C++ class instances.

Parameters

[in] c_params C structures containing parameters for multiple nodes.

Returns: a map where the keys are fully qualified node names and values a list of parameters.

Exceptions

InvalidParametersException if the rcl_params_t is inconsistent or invalid.

Definition at line 28 of file parameter_map.cpp.

References parameter_map_from().

Referenced by parameter_map_from(), and parameter_map_from_yaml_file().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parameter_map_from() [2/2]

ParameterMap rclcpp::parameter_map_from	(	const rcl_params_t *const	c_params,
		const char *	node_fqn
	)

Convert parameters from rcl_yaml_param_parser into C++ class instances.

Parameters

[in]	c_params	C structures containing parameters for multiple nodes.
[in]	node_fqn	a Fully Qualified Name of node, default value is nullptr. If it's not nullptr, return the relative node parameters belonging to this node_fqn.

Returns: a map where the keys are fully qualified node names and values a list of parameters.

Exceptions

InvalidParametersException if the rcl_params_t is inconsistent or invalid.

make sure there is a leading slash on the fully qualified node name

Definition at line 34 of file parameter_map.cpp.

References parameter_value_from().

Here is the call graph for this function:

◆ parameter_map_from_yaml_file()

ParameterMap rclcpp::parameter_map_from_yaml_file ( const std::string & yaml_filename )

Get the ParameterMap from a yaml file.

Parameters

[in] yaml_filename full name of the yaml file.

Returns: an instance of a parameter map

Exceptions

from	rcl error of rcl_parse_yaml_file()

Definition at line 151 of file parameter_map.cpp.

References parameter_map_from(), and RCL_RET_ERROR.

Referenced by rclcpp::AsyncParametersClient::load_parameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parameter_value_from()

ParameterValue rclcpp::parameter_value_from ( const rcl_variant_t *const c_value )

Convert parameter value from rcl_yaml_param_parser into a C++ class instance.

Parameters

[in] c_value C structure containing a value of a parameter.

Returns: an instance of a parameter value

Exceptions

InvalidParameterValueException if the rcl_variant_t is inconsistent or invalid.

Definition at line 92 of file parameter_map.cpp.

Referenced by parameter_map_from().

Here is the caller graph for this function:

◆ qos_check_compatible()

QoSCheckCompatibleResult rclcpp::qos_check_compatible	(	const QoS &	publisher_qos,
		const QoS &	subscription_qos
	)

Check if two QoS profiles are compatible.

Two QoS profiles are compatible if a publisher and subcription using the QoS policies can communicate with each other.

If any policies have value "system default" or "unknown" then it is possible that compatiblity cannot be determined. In this case, the value QoSCompatility::Warning is set as part of the returned structure.

Example usage:

rclcpp::QoSCheckCompatibleResult result = rclcpp::qos_check_compatible(
  publisher_qos, subscription_qos);
if (rclcpp::QoSCompatibility::Error != result.compatibility) {
  // QoS not compatible ...
  // result.reason contains info about the incompatibility
} else if (rclcpp::QoSCompatibility::Warning != result.compatibility) {
  // QoS may not be compatible ...
  // result.reason contains info about the possible incompatibility
}

Parameters

[in]	publisher_qos	The QoS profile for a publisher.
[in]	subscription_qos	The QoS profile for a subscription.

Returns: Struct with compatiblity set to QoSCompatibility::Ok if the QoS profiles are compatible, or; Struct with compatibility set to QoSCompatibility::Warning if there is a chance the QoS profiles are not compatible, or; Struct with compatibility set to QoSCompatibility::Error if the QoS profiles are not compatible.

Exceptions

rclcpp::exceptions::QoSCheckCompatibilityException if an unexpected error occurs.

Definition at line 317 of file qos.cpp.

References rclcpp::QoSCheckCompatibleResult::compatibility, rclcpp::QoS::get_rmw_qos_profile(), and rclcpp::QoSCheckCompatibleResult::reason.

Here is the call graph for this function:

◆ remove_ros_arguments()

std::vector< std::string > rclcpp::remove_ros_arguments	(	int	argc,
		char const const	argv
	)

Remove ROS-specific arguments from argument vector.

Some arguments may not have been intended as ROS arguments. This function populates the arguments in a vector. Since the first argument is always assumed to be a process name, the vector will always contain the process name.

Parameters

[in]	argc	Number of arguments.
[in]	argv	Argument vector.

Returns: Members of the argument vector that are not ROS arguments.

Exceptions

anything	throw_from_rcl_error can throw
rclcpp::exceptions::RCLError	if the parsing fails

Definition at line 126 of file utilities.cpp.

References rcl_arguments_fini(), rcl_get_default_allocator, rcl_get_zero_initialized_arguments(), rcl_parse_arguments(), and RCL_RET_OK.

Here is the call graph for this function:

◆ shutdown()

RCLCPP_PUBLIC bool rclcpp::shutdown	(	rclcpp::Context::SharedPtr	context = `nullptr`,
		const std::string &	reason = `"user called rclcpp::shutdown()"`
	)

Shutdown rclcpp context, invalidating it for derived entities.

If nullptr is given for the context, then the global context is used, i.e. the context initialized by rclcpp::init().

If the global context is used, then the signal handlers are also uninstalled.

This will also cause the "on_shutdown" callbacks to be called.

See also: rclcpp::Context::shutdown()

Parameters

[in]	context	Optional to be shutdown
[in]	reason	Optional string passed to the context shutdown method

Returns: true if shutdown was successful, false if context was already shutdown

◆ sleep_for()

RCLCPP_PUBLIC bool rclcpp::sleep_for	(	const std::chrono::nanoseconds &	nanoseconds,
		rclcpp::Context::SharedPtr	context = `nullptr`
	)

Use the global condition variable to block for the specified amount of time.

This function can be interrupted early if the associated context becomes invalid due to shutdown() or the signal handler.

See also: rclcpp::Context::sleep_for

If nullptr is given for the context, then the global context is used, i.e. the context initialized by rclcpp::init().

Parameters

[in]	nanoseconds	A std::chrono::duration representing how long to sleep for.
[in]	context	Optional which may interrupt this sleep

Returns: true if the condition variable did not timeout.

◆ spin()

void rclcpp::spin ( rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr )

Create a default single-threaded executor and spin the specified node.

Parameters

[in] node_ptr Shared pointer to the node to spin.

Definition at line 33 of file executors.cpp.

References rclcpp::Executor::add_node(), rclcpp::Executor::remove_node(), and rclcpp::executors::SingleThreadedExecutor::spin().

Here is the call graph for this function:

◆ spin_some()

void rclcpp::spin_some ( rclcpp::node_interfaces::NodeBaseInterface::SharedPtr node_ptr )

Create a default single-threaded executor and execute any immediately available work.

Parameters

[in] node_ptr Shared pointer to the node to spin.

Definition at line 18 of file executors.cpp.

References rclcpp::Executor::spin_node_some().

Here is the call graph for this function:

◆ sub_will_overflow()

template<typename T >

bool rclcpp::sub_will_overflow	(	const T	x,
		const T	y
	)

Safely check if subtraction will overflow.

The type of the operands, T, should have defined std::numeric_limits<T>::max(), >, < and + operators.

Parameters

[in]	x	is the minuend.
[in]	y	is the subtrahend.

Template Parameters

T	is type of the operands.

Returns: True if the difference x - y sum is grater than T::max value.

Definition at line 282 of file utilities.hpp.

Referenced by rclcpp::Time::operator-(), and rclcpp::Time::operator-=().

Here is the caller graph for this function:

◆ sub_will_underflow()

template<typename T >

bool rclcpp::sub_will_underflow	(	const T	x,
		const T	y
	)

Safely check if subtraction will underflow.

The type of the operands, T, should have defined std::numeric_limits<T>::min(), >, < and + operators.

Parameters

[in]	x	is the minuend.
[in]	y	is the subtrahend.

Template Parameters

T	is type of the operands.

Returns: True if the difference x - y sum is less than T::min value.

Definition at line 299 of file utilities.hpp.

Referenced by rclcpp::Time::operator-(), and rclcpp::Time::operator-=().

Here is the caller graph for this function:

◆ uninstall_signal_handlers()

bool rclcpp::uninstall_signal_handlers ( )

Uninstall the global signal handler for rclcpp.

This function does not necessarily need to be called, but can be used to undo what rclcpp::install_signal_handlers() or rclcpp::init() do with respect to signal handling. If you choose to use it, this function only needs to be run one time. It is implicitly run by rclcpp::shutdown(), and therefore this function does not need to be run manually if rclcpp::shutdown() has already been run.

This function is thread-safe.

Returns: true if signal handler was uninstalled by this function, false if was not installed.

Definition at line 66 of file utilities.cpp.

References rclcpp::SignalHandler::get_global_signal_handler(), and rclcpp::SignalHandler::uninstall().

Here is the call graph for this function:

◆ wait_for_message() [1/2]

template<class MsgT , class Rep = int64_t, class Period = std::milli>

bool rclcpp::wait_for_message	(	MsgT &	out,
		rclcpp::Node::SharedPtr	node,
		const std::string &	topic,
		std::chrono::duration< Rep, Period >	time_to_wait = `std::chrono::duration<Rep, Period>(-1)`,
		const rclcpp::QoS &	qos = `rclcpp::SystemDefaultsQoS()`
	)

Wait for the next incoming message.

Wait for the next incoming message to arrive on a specified topic before the specified timeout.

Parameters

[out]	out	is the message to be filled when a new message is arriving
[in]	node	the node pointer to initialize the subscription on.
[in]	topic	the topic to wait for messages.
[in]	time_to_wait	parameter specifying the timeout before returning.
[in]	qos	parameter specifying QoS settings for the subscription.

Returns: true if a message was successfully received, false if message could not be obtained or shutdown was triggered asynchronously on the context.

Definition at line 93 of file wait_for_message.hpp.

◆ wait_for_message() [2/2]

template<class MsgT , class Rep = int64_t, class Period = std::milli>

bool rclcpp::wait_for_message	(	MsgT &	out,
		std::shared_ptr< rclcpp::Subscription< MsgT >>	subscription,
		std::shared_ptr< rclcpp::Context >	context,
		std::chrono::duration< Rep, Period >	time_to_wait = `std::chrono::duration<Rep, Period>(-1)`
	)

Wait for the next incoming message.

Given an already initialized subscription, wait for the next incoming message to arrive before the specified timeout.

Parameters

[out]	out	is the message to be filled when a new message is arriving.
[in]	subscription	shared pointer to a previously initialized subscription.
[in]	context	shared pointer to a context to watch for SIGINT requests.
[in]	time_to_wait	parameter specifying the timeout before returning.

Returns: true if a message was successfully received, false if message could not be obtained or shutdown was triggered asynchronously on the context.

Definition at line 44 of file wait_for_message.hpp.

References rclcpp::WaitSetTemplate< SynchronizationPolicy, StoragePolicy >::add_guard_condition(), rclcpp::WaitSetTemplate< SynchronizationPolicy, StoragePolicy >::add_subscription(), rclcpp::WaitSetTemplate< SynchronizationPolicy, StoragePolicy >::get_rcl_wait_set(), rcl_wait_set_s::guard_conditions, rclcpp::WaitSetTemplate< SynchronizationPolicy, StoragePolicy >::remove_subscription(), and rclcpp::WaitSetTemplate< SynchronizationPolicy, StoragePolicy >::wait().

Here is the call graph for this function:

Classes

Typedefs

Enumerations

Functions

Detailed Description

Typedef Documentation

◆ StaticWaitSet

◆ ThreadSafeWaitSet

◆ WaitSet

Enumeration Type Documentation

◆ FutureReturnCode

◆ IntraProcessBufferType

◆ IntraProcessSetting

◆ SignalHandlerOptions

◆ TopicStatisticsState

Function Documentation

◆ add_will_overflow()

◆ add_will_underflow()

◆ create_client()

◆ create_generic_publisher()

◆ create_generic_subscription()

◆ create_publisher()

◆ create_service()

◆ create_subscription() [1/2]

◆ create_subscription() [2/2]

◆ create_subscription_factory()

◆ create_timer()

◆ create_wall_timer()

◆ expand_topic_or_service_name()

◆ get_c_string() [1/2]

◆ get_c_string() [2/2]

◆ get_c_vector_string()

◆ get_contexts()

◆ get_current_signal_handler_options()

◆ get_logger()

◆ get_logging_directory()

◆ get_node_logger()

◆ get_typesupport_handle()

◆ get_typesupport_library()

◆ init()

◆ init_and_remove_ros_arguments()

◆ install_signal_handlers()

◆ ok()

◆ on_shutdown()

◆ operator+()

◆ parameter_map_from() [1/2]

◆ parameter_map_from() [2/2]

◆ parameter_map_from_yaml_file()

◆ parameter_value_from()

◆ qos_check_compatible()

◆ remove_ros_arguments()

◆ shutdown()

◆ sleep_for()

◆ spin()

◆ spin_some()

◆ sub_will_overflow()

◆ sub_will_underflow()

◆ uninstall_signal_handlers()

◆ wait_for_message() [1/2]

◆ wait_for_message() [2/2]
