Inheritance diagram for rclcpp::QOSEventHandler< EventCallbackT, ParentHandleT >:

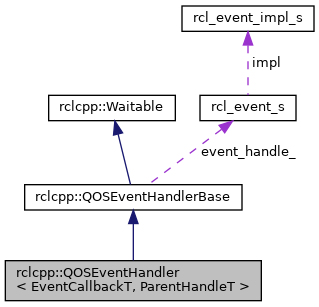

Collaboration diagram for rclcpp::QOSEventHandler< EventCallbackT, ParentHandleT >:
Public Member Functions | |
| template<typename InitFuncT , typename EventTypeEnum > | |
| QOSEventHandler (const EventCallbackT &callback, InitFuncT init_func, ParentHandleT parent_handle, EventTypeEnum event_type) | |
| std::shared_ptr< void > | take_data () override |
| Take data so that the callback cannot be scheduled again. | |
| std::shared_ptr< void > | take_data_by_entity_id (size_t id) override |
Take the data so that it can be consumed with execute. More... | |
| void | execute (std::shared_ptr< void > &data) override |
| Execute any entities of the Waitable that are ready. | |
 Public Member Functions inherited from rclcpp::QOSEventHandlerBase | |
| RCLCPP_PUBLIC size_t | get_number_of_ready_events () override |
| Get the number of ready events. | |
| RCLCPP_PUBLIC void | add_to_wait_set (rcl_wait_set_t *wait_set) override |
| Add the Waitable to a wait set. | |
| RCLCPP_PUBLIC bool | is_ready (rcl_wait_set_t *wait_set) override |
| Check if the Waitable is ready. | |
| void | set_on_ready_callback (std::function< void(size_t, int)> callback) override |
| Set a callback to be called when each new event instance occurs. More... | |
| void | clear_on_ready_callback () override |
| Unset the callback registered for new events, if any. | |
| Public Member Functions inherited from rclcpp::Waitable | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_subscriptions () |
| Get the number of ready subscriptions. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_timers () |
| Get the number of ready timers. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_clients () |
| Get the number of ready clients. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_services () |
| Get the number of ready services. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_guard_conditions () |
| Get the number of ready guard_conditions. More... | |
| RCLCPP_PUBLIC bool | exchange_in_use_by_wait_set_state (bool in_use_state) |
| Exchange the "in use by wait set" state for this timer. More... | |
Additional Inherited Members | |
| Public Types inherited from rclcpp::QOSEventHandlerBase | |
| enum class | EntityType : std::size_t { Event } |
| Protected Member Functions inherited from rclcpp::QOSEventHandlerBase | |
| RCLCPP_PUBLIC void | set_on_new_event_callback (rcl_event_callback_t callback, const void *user_data) |
| Protected Attributes inherited from rclcpp::QOSEventHandlerBase | |
| rcl_event_t | event_handle_ |
| size_t | wait_set_event_index_ |
| std::recursive_mutex | callback_mutex_ |
| std::function< void(size_t)> | on_new_event_callback_ {nullptr} |
Detailed Description
template<typename EventCallbackT, typename ParentHandleT>
class rclcpp::QOSEventHandler< EventCallbackT, ParentHandleT >
Definition at line 223 of file qos_event.hpp.
Member Function Documentation
◆ take_data_by_entity_id()
template<typename EventCallbackT , typename ParentHandleT >
|
inlineoverridevirtual |
Take the data so that it can be consumed with execute.
This function allows to specify an entity ID to take the data from. Entity IDs are identifiers that can be defined by waitable-derived classes that are composed of several distinct entities. The main use-case is in conjunction with the listener APIs.
- Parameters
-
[in] id the id of the entity from which to take
- Returns
- the type-erased data taken from entity specified
Reimplemented from rclcpp::Waitable.
Definition at line 263 of file qos_event.hpp.
References rclcpp::QOSEventHandler< EventCallbackT, ParentHandleT >::take_data().
Here is the call graph for this function:
The documentation for this class was generated from the following file:
- rclcpp/include/rclcpp/qos_event.hpp
