This class hosts variety of plugins of different algorithms to smooth or refine a path from the exposed SmoothPath action server. More...

#include <nav2_smoother/include/nav2_smoother/nav2_smoother.hpp>

Inheritance diagram for nav2_smoother::SmootherServer:

[legend]

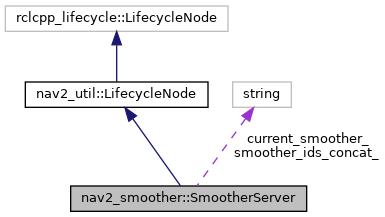

Collaboration diagram for nav2_smoother::SmootherServer:

[legend]

Public Types
using	SmootherMap = std::unordered_map< std::string, nav2_core::Smoother::Ptr >

Public Member Functions
	SmootherServer (const rclcpp::NodeOptions &options=rclcpp::NodeOptions())
	A constructor for nav2_smoother::SmootherServer. More...

	~SmootherServer ()
	Destructor for nav2_smoother::SmootherServer.

Public Member Functions inherited from nav2_util::LifecycleNode
	LifecycleNode (const std::string &node_name, const std::string &ns="", const rclcpp::NodeOptions &options=rclcpp::NodeOptions())
	A lifecycle node constructor. More...

void	add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const std::string &description="", const std::string &additional_constraints="", bool read_only=false)
	Declare a parameter that has no integer or floating point range constraints. More...

void	add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const floating_point_range fp_range, const std::string &description="", const std::string &additional_constraints="", bool read_only=false)
	Declare a parameter that has a floating point range constraint. More...

void	add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const integer_range int_range, const std::string &description="", const std::string &additional_constraints="", bool read_only=false)
	Declare a parameter that has an integer range constraint. More...

std::shared_ptr< nav2_util::LifecycleNode >	shared_from_this ()
	Get a shared pointer of this.

nav2_util::CallbackReturn	on_error (const rclcpp_lifecycle::State &)
	Abstracted on_error state transition callback, since unimplemented as of 2020 in the managed ROS2 node state machine. More...

virtual void	on_rcl_preshutdown ()
	Perform preshutdown activities before our Context is shutdown. Note that this is related to our Context's shutdown sequence, not the lifecycle node state machine.

void	createBond ()
	Create bond connection to lifecycle manager.

void	destroyBond ()
	Destroy bond connection to lifecycle manager.

Protected Types
using	Action = nav2_msgs::action::SmoothPath

using	ActionServer = nav2_util::SimpleActionServer< Action >

Protected Member Functions
nav2_util::CallbackReturn	on_configure (const rclcpp_lifecycle::State &state) override
	Configures smoother parameters and member variables. More...

bool	loadSmootherPlugins ()
	Loads smoother plugins from parameter file. More...

nav2_util::CallbackReturn	on_activate (const rclcpp_lifecycle::State &state) override
	Activates member variables. More...

nav2_util::CallbackReturn	on_deactivate (const rclcpp_lifecycle::State &state) override
	Deactivates member variables. More...

nav2_util::CallbackReturn	on_cleanup (const rclcpp_lifecycle::State &state) override
	Calls clean up states and resets member variables. More...

nav2_util::CallbackReturn	on_shutdown (const rclcpp_lifecycle::State &state) override
	Called when in Shutdown state. More...

void	smoothPlan ()
	SmoothPath action server callback. Handles action server updates and spins server until goal is reached. More...

bool	findSmootherId (const std::string &c_name, std::string &name)
	Find the valid smoother ID name for the given request. More...

Protected Member Functions inherited from nav2_util::LifecycleNode
void	printLifecycleNodeNotification ()
	Print notifications for lifecycle node.

void	register_rcl_preshutdown_callback ()

void	runCleanups ()

Protected Attributes
std::unique_ptr< ActionServer >	action_server_

std::shared_ptr< tf2_ros::Buffer >	tf_

std::shared_ptr< tf2_ros::TransformListener >	transform_listener_

rclcpp_lifecycle::LifecyclePublisher< nav_msgs::msg::Path >::SharedPtr	plan_publisher_

pluginlib::ClassLoader< nav2_core::Smoother >	lp_loader_

SmootherMap	smoothers_

std::vector< std::string >	default_ids_

std::vector< std::string >	default_types_

std::vector< std::string >	smoother_ids_

std::vector< std::string >	smoother_types_

std::string	smoother_ids_concat_

std::string	current_smoother_

std::shared_ptr< nav2_costmap_2d::CostmapSubscriber >	costmap_sub_

std::shared_ptr< nav2_costmap_2d::FootprintSubscriber >	footprint_sub_

std::shared_ptr< nav2_costmap_2d::CostmapTopicCollisionChecker >	collision_checker_

Protected Attributes inherited from nav2_util::LifecycleNode
std::unique_ptr< rclcpp::PreShutdownCallbackHandle >	rcl_preshutdown_cb_handle_ {nullptr}

std::unique_ptr< bond::Bond >	bond_ {nullptr}

Detailed Description

This class hosts variety of plugins of different algorithms to smooth or refine a path from the exposed SmoothPath action server.

Definition at line 45 of file nav2_smoother.hpp.

Constructor & Destructor Documentation

◆ SmootherServer()

nav2_smoother::SmootherServer::SmootherServer ( const rclcpp::NodeOptions & options = rclcpp::NodeOptions() )

explicit

A constructor for nav2_smoother::SmootherServer.

Parameters

options Additional options to control creation of the node.

Definition at line 37 of file nav2_smoother.cpp.

Member Function Documentation

◆ findSmootherId()

bool nav2_smoother::SmootherServer::findSmootherId	(	const std::string &	c_name,
		std::string &	name
	)

protected

Find the valid smoother ID name for the given request.

Parameters

c_name	The requested smoother name
name	Reference to the name to use for control if any valid available

Returns: bool Whether it found a valid smoother to use

Definition at line 226 of file nav2_smoother.cpp.

Referenced by smoothPlan().

Here is the caller graph for this function:

◆ loadSmootherPlugins()

bool nav2_smoother::SmootherServer::loadSmootherPlugins ( )

protected

Loads smoother plugins from parameter file.

Returns: bool if successfully loaded the plugins

Definition at line 121 of file nav2_smoother.cpp.

References nav2_util::LifecycleNode::shared_from_this().

Referenced by on_configure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ on_activate()

nav2_util::CallbackReturn nav2_smoother::SmootherServer::on_activate ( const rclcpp_lifecycle::State & state )

overrideprotected

Activates member variables.

Activates smoother, costmap, velocity publisher and smooth path action server

Parameters

state LifeCycle Node's state

Returns: Success or Failure

Definition at line 160 of file nav2_smoother.cpp.

References nav2_util::LifecycleNode::createBond().

Here is the call graph for this function:

◆ on_cleanup()

nav2_util::CallbackReturn nav2_smoother::SmootherServer::on_cleanup ( const rclcpp_lifecycle::State & state )

overrideprotected

Calls clean up states and resets member variables.

Smoother and costmap clean up state is called, and resets rest of the variables

Parameters

state LifeCycle Node's state

Returns: Success or Failure

Definition at line 196 of file nav2_smoother.cpp.

◆ on_configure()

nav2_util::CallbackReturn nav2_smoother::SmootherServer::on_configure ( const rclcpp_lifecycle::State & state )

overrideprotected

Configures smoother parameters and member variables.

Configures smoother plugin and costmap; Initialize odom subscriber, velocity publisher and smooth path action server.

Parameters

state LifeCycle Node's state

Returns: Success or Failure

Exceptions

pluginlib::PluginlibException When failed to initialize smoother plugin

Definition at line 66 of file nav2_smoother.cpp.

References loadSmootherPlugins(), nav2_util::LifecycleNode::shared_from_this(), and smoothPlan().

Here is the call graph for this function:

◆ on_deactivate()

nav2_util::CallbackReturn nav2_smoother::SmootherServer::on_deactivate ( const rclcpp_lifecycle::State & state )

overrideprotected

Deactivates member variables.

Deactivates smooth path action server, smoother, costmap and velocity publisher. Before calling deactivate state, velocity is being set to zero.

Parameters

state LifeCycle Node's state

Returns: Success or Failure

Definition at line 178 of file nav2_smoother.cpp.

References nav2_util::LifecycleNode::destroyBond().

Here is the call graph for this function:

◆ on_shutdown()

nav2_util::CallbackReturn nav2_smoother::SmootherServer::on_shutdown ( const rclcpp_lifecycle::State & state )

overrideprotected

Called when in Shutdown state.

Parameters

state LifeCycle Node's state

Returns: Success or Failure

Definition at line 220 of file nav2_smoother.cpp.

◆ smoothPlan()

void nav2_smoother::SmootherServer::smoothPlan ( )

protected

SmoothPath action server callback. Handles action server updates and spins server until goal is reached.

Provides global path to smoother received from action client. Local section of the path is optimized using smoother.

Exceptions

nav2_core::PlannerException

Definition at line 255 of file nav2_smoother.cpp.

References findSmootherId().

Referenced by on_configure().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

nav2_smoother/include/nav2_smoother/nav2_smoother.hpp
nav2_smoother/src/nav2_smoother.cpp
