#include "rosidl_runtime_c/message_type_support_struct.h"
#include "rcl/macros.h"
#include "rcl/node.h"
#include "rcl/visibility_control.h"
#include "rcl/time.h"

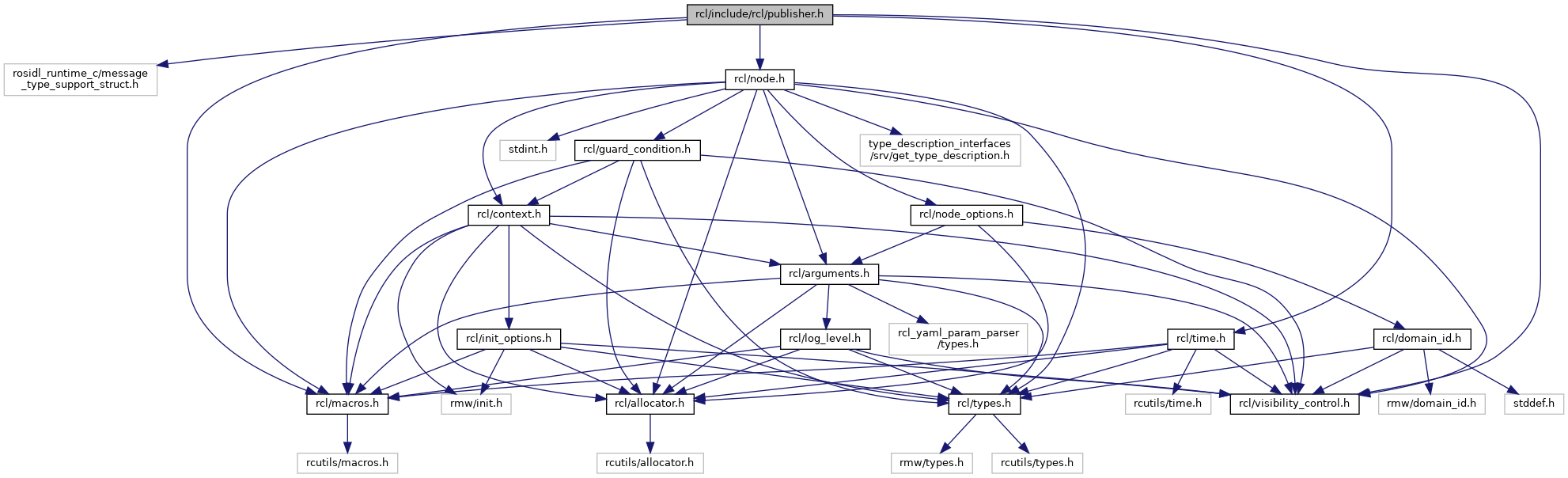

Include dependency graph for publisher.h:

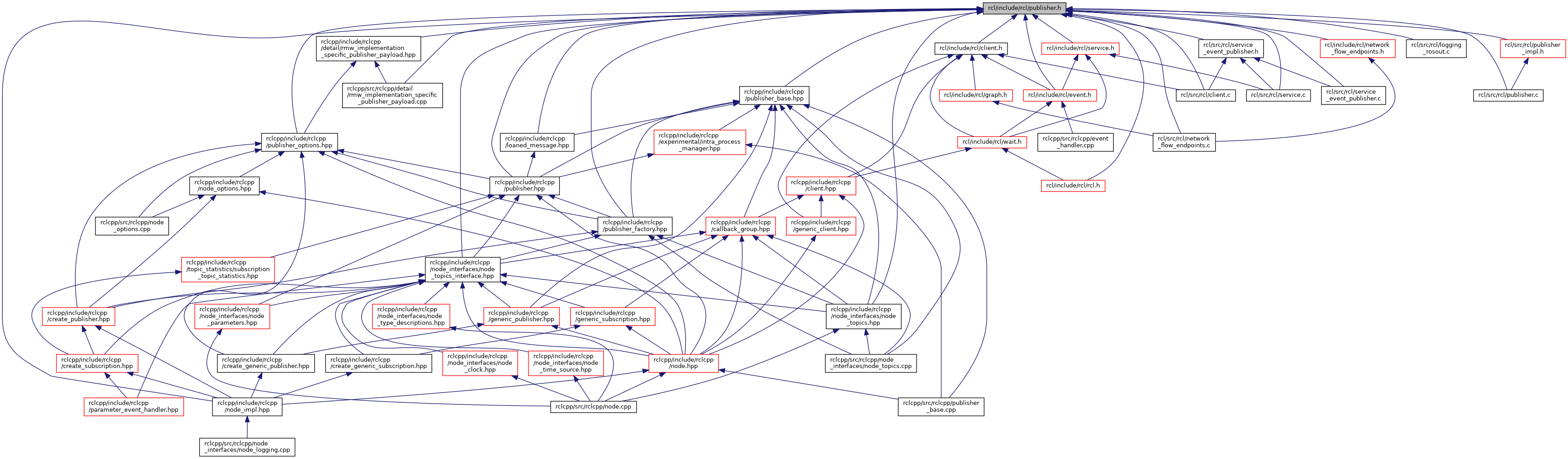

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	rcl_publisher_s
	Structure which encapsulates a ROS Publisher. More...

struct	rcl_publisher_options_s
	Options available for a rcl publisher. More...

Typedefs
typedef struct rcl_publisher_impl_s	rcl_publisher_impl_t
	Internal rcl publisher implementation struct.

typedef struct rcl_publisher_s	rcl_publisher_t
	Structure which encapsulates a ROS Publisher.

typedef struct rcl_publisher_options_s	rcl_publisher_options_t
	Options available for a rcl publisher.

Functions
RCL_PUBLIC RCL_WARN_UNUSED rcl_publisher_t	rcl_get_zero_initialized_publisher (void)
	Return a rcl_publisher_t struct with members set to `NULL`. More...

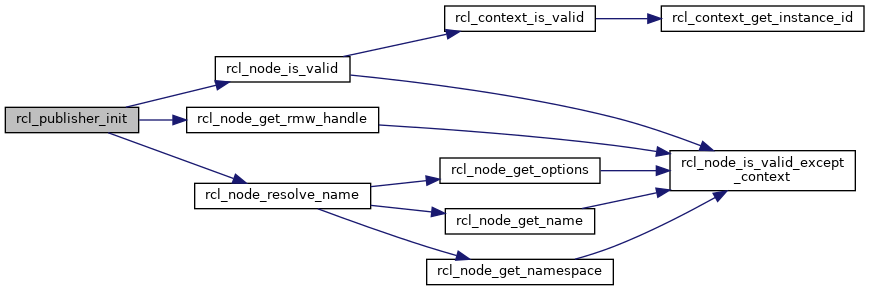

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publisher_init (rcl_publisher_t publisher, const rcl_node_t node, const rosidl_message_type_support_t type_support, const char topic_name, const rcl_publisher_options_t *options)
	Initialize a rcl publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publisher_fini (rcl_publisher_t publisher, rcl_node_t node)
	Finalize a rcl_publisher_t. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_publisher_options_t	rcl_publisher_get_default_options (void)
	Return the default publisher options in a rcl_publisher_options_t. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_borrow_loaned_message (const rcl_publisher_t publisher, const rosidl_message_type_support_t type_support, void **ros_message)
	Borrow a loaned message. More...

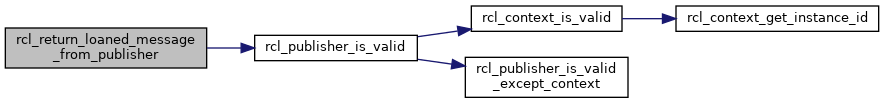

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_return_loaned_message_from_publisher (const rcl_publisher_t publisher, void loaned_message)
	Return a loaned message previously borrowed from a publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publish (const rcl_publisher_t publisher, const void ros_message, rmw_publisher_allocation_t *allocation)
	Publish a ROS message on a topic using a publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publish_serialized_message (const rcl_publisher_t publisher, const rcl_serialized_message_t serialized_message, rmw_publisher_allocation_t *allocation)
	Publish a serialized message on a topic using a publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publish_loaned_message (const rcl_publisher_t publisher, void ros_message, rmw_publisher_allocation_t *allocation)
	Publish a loaned message on a topic using a publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publisher_assert_liveliness (const rcl_publisher_t *publisher)
	Manually assert that this Publisher is alive (for RMW_QOS_POLICY_LIVELINESS_MANUAL_BY_TOPIC) More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publisher_wait_for_all_acked (const rcl_publisher_t *publisher, rcl_duration_value_t timeout)
	Wait until all published message data is acknowledged or until the specified timeout elapses. More...

RCL_PUBLIC RCL_WARN_UNUSED const char *	rcl_publisher_get_topic_name (const rcl_publisher_t *publisher)
	Get the topic name for the publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED const rcl_publisher_options_t *	rcl_publisher_get_options (const rcl_publisher_t *publisher)
	Return the rcl publisher options. More...

RCL_PUBLIC RCL_WARN_UNUSED rmw_publisher_t *	rcl_publisher_get_rmw_handle (const rcl_publisher_t *publisher)
	Return the rmw publisher handle. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_context_t *	rcl_publisher_get_context (const rcl_publisher_t *publisher)
	Return the context associated with this publisher. More...

RCL_PUBLIC bool	rcl_publisher_is_valid (const rcl_publisher_t *publisher)
	Return true if the publisher is valid, otherwise false. More...

RCL_PUBLIC bool	rcl_publisher_is_valid_except_context (const rcl_publisher_t *publisher)
	Return true if the publisher is valid except the context, otherwise false. More...

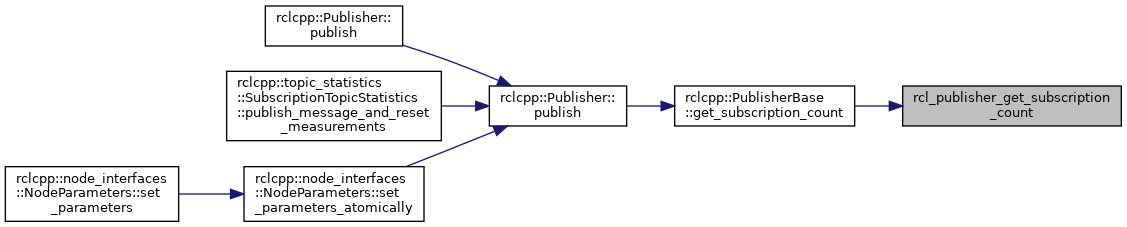

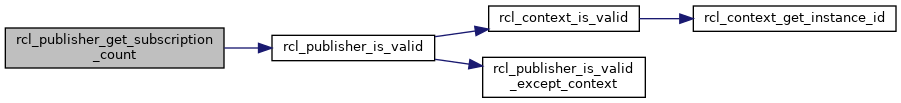

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_publisher_get_subscription_count (const rcl_publisher_t publisher, size_t subscription_count)
	Get the number of subscriptions matched to a publisher. More...

RCL_PUBLIC RCL_WARN_UNUSED const rmw_qos_profile_t *	rcl_publisher_get_actual_qos (const rcl_publisher_t *publisher)
	Get the actual qos settings of the publisher. More...

RCL_PUBLIC bool	rcl_publisher_can_loan_messages (const rcl_publisher_t *publisher)
	Check if publisher instance can loan messages. More...

Function Documentation

◆ rcl_borrow_loaned_message()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_borrow_loaned_message	(	const rcl_publisher_t *	publisher,
		const rosidl_message_type_support_t *	type_support,
		void **	ros_message
	)

Borrow a loaned message.

The memory allocated for the ros message belongs to the middleware and must not be deallocated other than by a call to

See also: rcl_return_loaned_message_from_publisher.

Attribute	Adherence
Allocates Memory	No [0]
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

[0] the underlying middleware might allocate new memory or returns an existing chunk form a pool. The function in rcl however does not allocate any additional memory.

Parameters

[in]	publisher	Publisher to which the allocated message is associated.
[in]	type_support	Typesupport to which the internal ros message is allocated.
[out]	ros_message	The pointer to be filled to a valid ros message by the middleware.

Returns: RCL_RET_OK if the ros message was correctly initialized, or; RCL_RET_PUBLISHER_INVALID if the passed publisher is invalid, or; RCL_RET_INVALID_ARGUMENT if an argument other than the ros message is null, or; RCL_RET_BAD_ALLOC if the ros message could not be correctly created, or; RCL_RET_UNSUPPORTED if the middleware does not support that feature, or; RCL_RET_ERROR if an unexpected error occured.

Definition at line 244 of file publisher.c.

References rcl_publisher_s::impl, rcl_publisher_is_valid(), and RCL_RET_PUBLISHER_INVALID.

Referenced by rclcpp::LoanedMessage< MessageT, AllocatorT >::LoanedMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_get_zero_initialized_publisher()

RCL_PUBLIC RCL_WARN_UNUSED rcl_publisher_t rcl_get_zero_initialized_publisher ( void )

Return a rcl_publisher_t struct with members set to NULL.

Should be called to get a null rcl_publisher_t before passing to rcl_publisher_init().

Definition at line 40 of file publisher.c.

Referenced by rclcpp::PublisherBase::PublisherBase(), and rcl_logging_rosout_init_publisher_for_node().

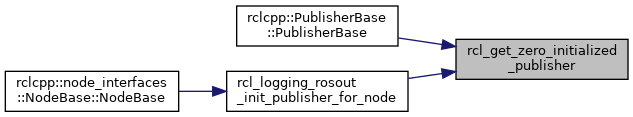

Here is the caller graph for this function:

◆ rcl_publish()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publish	(	const rcl_publisher_t *	publisher,
		const void *	ros_message,
		rmw_publisher_allocation_t *	allocation
	)

Publish a ROS message on a topic using a publisher.

It is the job of the caller to ensure that the type of the ros_message parameter and the type associate with the publisher (via the type support) match. Passing a different type to publish produces undefined behavior and cannot be checked by this function and therefore no deliberate error will occur.

Todo:: TODO(wjwwood): The blocking behavior of publish is a still a point of dispute. This section should be updated once the behavior is clearly defined. See: https://github.com/ros2/ros2/issues/255

Calling rcl_publish() is a potentially blocking call. When called rcl_publish() will immediately do any publishing related work, including, but not limited to, converting the message into a different type, serializing the message, collecting publish statistics, etc. The last thing it will do is call the underlying middleware's publish function which may or may not block based on the quality of service settings given via the publisher options in rcl_publisher_init(). For example, if the reliability is set to reliable, then a publish may block until space in the publish queue is available, but if the reliability is set to best effort then it should not block.

The ROS message given by the ros_message void pointer is always owned by the calling code, but should remain constant during publish.

This function is thread safe so long as access to both the publisher and the ros_message is synchronized. That means that calling rcl_publish() from multiple threads is allowed, but calling rcl_publish() at the same time as non-thread safe publisher functions is not, e.g. calling rcl_publish() and rcl_publisher_fini() concurrently is not allowed. The message cannot change during the rcl_publish() call. Before calling rcl_publish() the message can change but after calling rcl_publish() it depends on RMW implementation behavior. The same ros_message, however, can be passed to multiple calls of rcl_publish() simultaneously, even if the publishers differ. The ros_message is unmodified by rcl_publish().

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes [1]
Uses Atomics	No
Lock-Free	Yes

[1] for unique pairs of publishers and messages, see above for more

Parameters

[in]	publisher	handle to the publisher which will do the publishing
[in]	ros_message	type-erased pointer to the ROS message
[in]	allocation	structure pointer, used for memory preallocation (may be NULL)

Returns: RCL_RET_OK if the message was published successfully, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 270 of file publisher.c.

References rcl_publisher_s::impl, rcl_publisher_is_valid(), RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_OK, and RCL_RET_PUBLISHER_INVALID.

Referenced by rcl_logging_rosout_output_handler(), rcl_publish_loaned_message(), and rcl_publish_serialized_message().

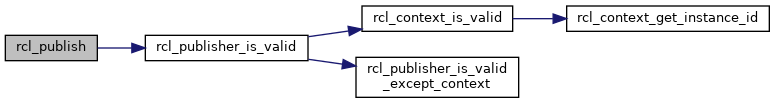

Here is the call graph for this function:

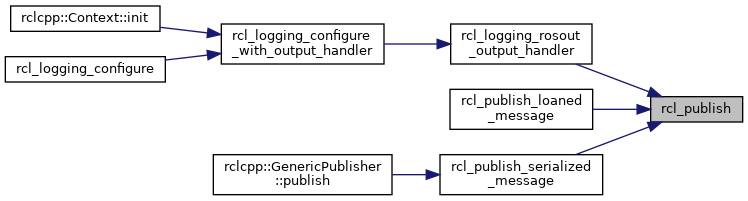

Here is the caller graph for this function:

◆ rcl_publish_loaned_message()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publish_loaned_message	(	const rcl_publisher_t *	publisher,
		void *	ros_message,
		rmw_publisher_allocation_t *	allocation
	)

Publish a loaned message on a topic using a publisher.

A previously borrowed loaned message can be sent via this call to rcl_publish_loaned_message(). By calling this function, the ownership of the loaned message is getting transferred back to the middleware. The pointer to the ros_message is not guaranteed to be valid after as the middleware migth deallocate the memory for this message internally. It is thus recommended to call this function only in combination with

See also: rcl_borrow_loaned_message().

Apart from this, the publish_loaned_message function has the same behavior as rcl_publish() except that no serialization step is done.

Attribute	Adherence
Allocates Memory	No [0]
Thread-Safe	Yes [1]
Uses Atomics	No
Lock-Free	Yes

[0] the middleware might deallocate the loaned message. The RCL function however does not allocate any memory. [1] for unique pairs of publishers and messages, see above for more

Parameters

[in]	publisher	handle to the publisher which will do the publishing
[in]	ros_message	pointer to the previously borrow loaned message
[in]	allocation	structure pointer, used for memory preallocation (may be NULL)

Returns: RCL_RET_OK if the message was published successfully, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_UNSUPPORTED if the middleware does not support that feature, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 314 of file publisher.c.

References rcl_publisher_s::impl, rcl_publish(), rcl_publisher_is_valid(), RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_OK, and RCL_RET_PUBLISHER_INVALID.

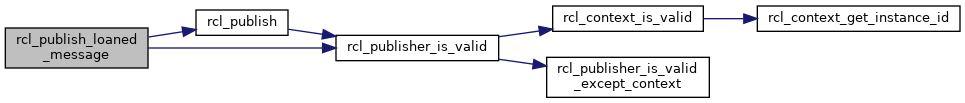

Here is the call graph for this function:

◆ rcl_publish_serialized_message()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publish_serialized_message	(	const rcl_publisher_t *	publisher,
		const rcl_serialized_message_t *	serialized_message,
		rmw_publisher_allocation_t *	allocation
	)

Publish a serialized message on a topic using a publisher.

It is the job of the caller to ensure that the type of the serialized message parameter and the type associate with the publisher (via the type support) match. Even though this call to publish takes an already serialized serialized message, the publisher has to register its type as a ROS known message type. Passing a serialized message from a different type leads to undefined behavior on the subscriber side. The publish call might be able to send any abitrary serialized message, it is however not garantueed that the subscriber side successfully deserializes this byte stream.

Apart from this, the publish_serialized function has the same behavior as rcl_publish() expect that no serialization step is done.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes [1]
Uses Atomics	No
Lock-Free	Yes

[1] for unique pairs of publishers and messages, see above for more

Parameters

[in]	publisher	handle to the publisher which will do the publishing
[in]	serialized_message	pointer to the already serialized message in raw form
[in]	allocation	structure pointer, used for memory preallocation (may be NULL)

Returns: RCL_RET_OK if the message was published successfully, or; RCL_RET_BAD_ALLOC if allocating memory failed, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 291 of file publisher.c.

References rcl_publisher_s::impl, rcl_publish(), rcl_publisher_is_valid(), RCL_RET_BAD_ALLOC, RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_OK, and RCL_RET_PUBLISHER_INVALID.

Referenced by rclcpp::GenericPublisher::publish().

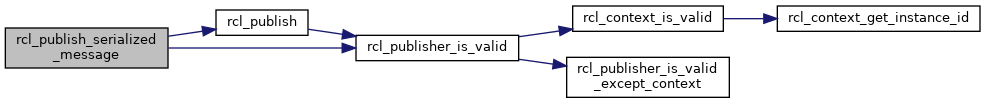

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_assert_liveliness()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publisher_assert_liveliness ( const rcl_publisher_t * publisher )

Manually assert that this Publisher is alive (for RMW_QOS_POLICY_LIVELINESS_MANUAL_BY_TOPIC)

If the rmw Liveliness policy is set to RMW_QOS_POLICY_LIVELINESS_MANUAL_BY_TOPIC, the creator of this publisher may manually call assert_liveliness at some point in time to signal to the rest of the system that this Node is still alive. This function must be called at least as often as the qos_profile's liveliness_lease_duration

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher handle to the publisher that needs liveliness to be asserted

Returns: RCL_RET_OK if the liveliness assertion was completed successfully, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 333 of file publisher.c.

References rcl_publisher_s::impl, rcl_publisher_is_valid(), RCL_RET_ERROR, RCL_RET_OK, and RCL_RET_PUBLISHER_INVALID.

Referenced by rclcpp::PublisherBase::assert_liveliness().

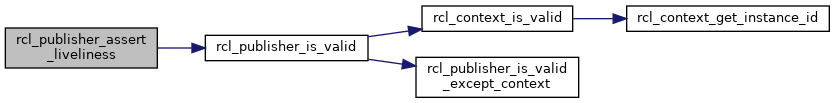

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_can_loan_messages()

RCL_PUBLIC bool rcl_publisher_can_loan_messages ( const rcl_publisher_t * publisher )

Check if publisher instance can loan messages.

Depending on the middleware and the message type, this will return true if the middleware can allocate a ROS message instance.

Definition at line 472 of file publisher.c.

References rcl_publisher_options_s::disable_loaned_message, rcl_publisher_s::impl, and rcl_publisher_is_valid().

Referenced by rclcpp::PublisherBase::can_loan_messages().

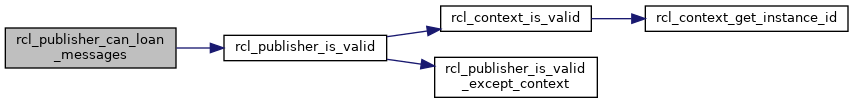

Here is the call graph for this function:

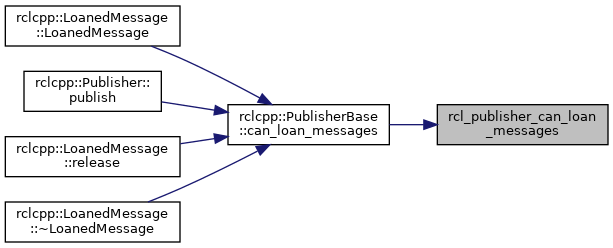

Here is the caller graph for this function:

◆ rcl_publisher_fini()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publisher_fini	(	rcl_publisher_t *	publisher,
		rcl_node_t *	node
	)

Finalize a rcl_publisher_t.

After calling, the node will no longer be advertising that it is publishing on this topic (assuming this is the only publisher on this topic).

After calling, calls to rcl_publish will fail when using this publisher. However, the given node handle is still valid.

Attribute	Adherence
Allocates Memory	Yes
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in,out]	publisher	handle to the publisher to be finalized
[in]	node	a valid (not finalized) handle to the node used to create the publisher

Returns: RCL_RET_OK if publisher was finalized successfully, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_NODE_INVALID if the node is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 178 of file publisher.c.

References rcl_publisher_options_s::allocator, rcl_publisher_s::impl, rcl_node_get_rmw_handle(), rcl_node_is_valid_except_context(), RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_NODE_INVALID, RCL_RET_OK, and RCL_RET_PUBLISHER_INVALID.

Referenced by rclcpp::PublisherBase::PublisherBase(), rcl_logging_rosout_fini_publisher_for_node(), and rcl_logging_rosout_init_publisher_for_node().

Here is the call graph for this function:

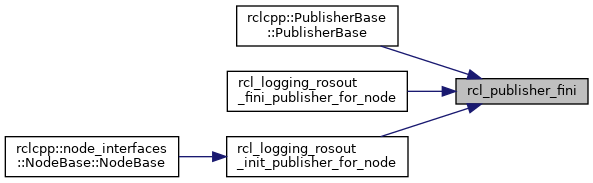

Here is the caller graph for this function:

◆ rcl_publisher_get_actual_qos()

RCL_PUBLIC RCL_WARN_UNUSED const rmw_qos_profile_t* rcl_publisher_get_actual_qos ( const rcl_publisher_t * publisher )

Get the actual qos settings of the publisher.

Used to get the actual qos settings of the publisher. The actual configuration applied when using RMW_*_SYSTEM_DEFAULT can only be resolved after the creation of the publisher, and it depends on the underlying rmw implementation. If the underlying setting in use can't be represented in ROS terms, it will be set to RMW_*_UNKNOWN. The returned struct is only valid as long as the rcl_publisher_t is valid.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher pointer to the rcl publisher

Returns: qos struct if successful, otherwise NULL

Definition at line 463 of file publisher.c.

References rcl_publisher_s::impl, and rcl_publisher_is_valid_except_context().

Referenced by rclcpp::PublisherBase::get_actual_qos(), and rclcpp::PublisherBase::is_durability_transient_local().

Here is the call graph for this function:

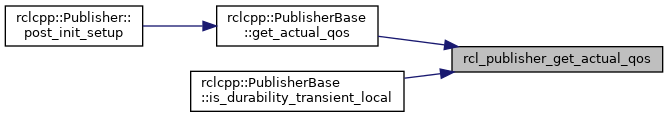

Here is the caller graph for this function:

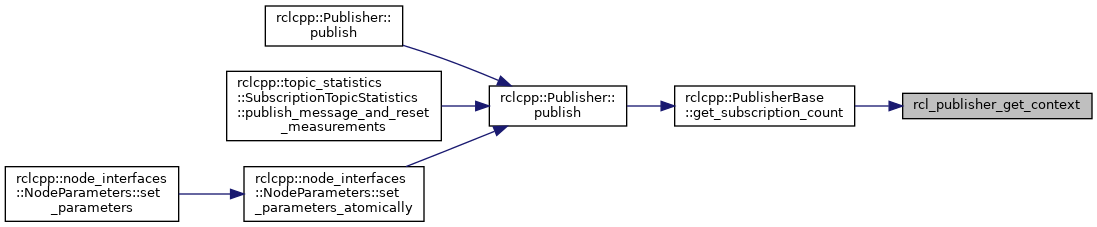

◆ rcl_publisher_get_context()

RCL_PUBLIC RCL_WARN_UNUSED rcl_context_t* rcl_publisher_get_context ( const rcl_publisher_t * publisher )

Return the context associated with this publisher.

This function can fail, and therefore return NULL, if the:

publisher is NULL
publisher is invalid (never called init, called fini, etc.)

The returned context is made invalid if the publisher is finalized or if rcl_shutdown() is called. Therefore it is recommended to get the handle from the publisher using this function each time it is needed and avoid use of the handle concurrently with functions that might change it.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher pointer to the rcl publisher

Returns: context if successful, otherwise NULL

Definition at line 408 of file publisher.c.

References rcl_publisher_s::impl, and rcl_publisher_is_valid_except_context().

Referenced by rclcpp::PublisherBase::get_subscription_count().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_get_default_options()

RCL_PUBLIC RCL_WARN_UNUSED rcl_publisher_options_t rcl_publisher_get_default_options ( void )

Return the default publisher options in a rcl_publisher_options_t.

The defaults are:

qos = rmw_qos_profile_default
allocator = rcl_get_default_allocator()
rmw_publisher_options = rmw_get_default_publisher_options()
disable_loaned_message = false, true only if ROS_DISABLE_LOANED_MESSAGES=1

Returns: A structure with the default publisher options.

Definition at line 219 of file publisher.c.

References rcl_publisher_options_s::allocator, rcl_publisher_options_s::disable_loaned_message, rcl_publisher_options_s::qos, rcl_get_default_allocator, rcl_get_disable_loaned_message(), RCL_RET_OK, and rcl_publisher_options_s::rmw_publisher_options.

Referenced by rclcpp::Client< ServiceT >::configure_introspection(), rclcpp::Service< ServiceT >::configure_introspection(), rcl_logging_rosout_init_publisher_for_node(), and rclcpp::PublisherOptionsWithAllocator< Allocator >::to_rcl_publisher_options().

Here is the call graph for this function:

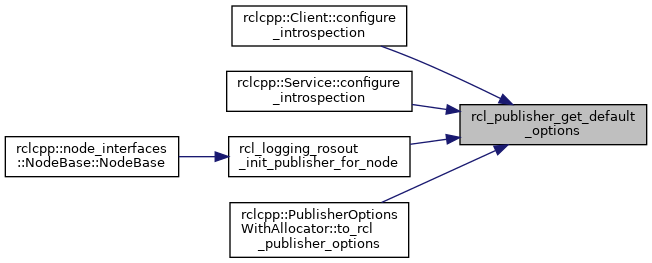

Here is the caller graph for this function:

◆ rcl_publisher_get_options()

RCL_PUBLIC RCL_WARN_UNUSED const rcl_publisher_options_t* rcl_publisher_get_options ( const rcl_publisher_t * publisher )

Return the rcl publisher options.

This function returns the publisher's internal options struct. This function can fail, and therefore return NULL, if the:

publisher is NULL
publisher is invalid (never called init, called fini, or invalid node)

The returned struct is only valid as long as the rcl_publisher_t is valid. The values in the struct may change if the options of the publisher change, and therefore copying the struct is recommended if this is a concern.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher pointer to the publisher

Returns: options struct if successful, otherwise NULL

Definition at line 390 of file publisher.c.

References rcl_publisher_s::impl, and rcl_publisher_is_valid_except_context().

Referenced by rclcpp::PublisherBase::get_queue_size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_get_rmw_handle()

RCL_PUBLIC RCL_WARN_UNUSED rmw_publisher_t* rcl_publisher_get_rmw_handle ( const rcl_publisher_t * publisher )

Return the rmw publisher handle.

The handle returned is a pointer to the internally held rmw handle. This function can fail, and therefore return NULL, if the:

publisher is NULL
publisher is invalid (never called init, called fini, or invalid node)

The returned handle is made invalid if the publisher is finalized or if rcl_shutdown() is called. The returned handle is not guaranteed to be valid for the life time of the publisher as it may be finalized and recreated itself. Therefore it is recommended to get the handle from the publisher using this function each time it is needed and avoid use of the handle concurrently with functions that might change it.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher pointer to the rcl publisher

Returns: rmw publisher handle if successful, otherwise NULL

Definition at line 399 of file publisher.c.

References rcl_publisher_s::impl, and rcl_publisher_is_valid_except_context().

Referenced by rclcpp::PublisherBase::PublisherBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_get_subscription_count()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publisher_get_subscription_count	(	const rcl_publisher_t *	publisher,
		size_t *	subscription_count
	)

Get the number of subscriptions matched to a publisher.

Used to get the internal count of subscriptions matched to a publisher.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes
Uses Atomics	Maybe [1]
Lock-Free	Maybe [1]

[1] only if the underlying rmw doesn't make use of this feature

Parameters

[in]	publisher	pointer to the rcl publisher
[out]	subscription_count	number of matched subscriptions

Returns: RCL_RET_OK if the count was retrieved, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 443 of file publisher.c.

References rcl_publisher_s::impl, rcl_publisher_is_valid(), RCL_RET_INVALID_ARGUMENT, RCL_RET_OK, and RCL_RET_PUBLISHER_INVALID.

Referenced by rclcpp::PublisherBase::get_subscription_count().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_get_topic_name()

RCL_PUBLIC RCL_WARN_UNUSED const char* rcl_publisher_get_topic_name ( const rcl_publisher_t * publisher )

Get the topic name for the publisher.

This function returns the publisher's internal topic name string. This function can fail, and therefore return NULL, if the:

publisher is NULL
publisher is invalid (never called init, called fini, or invalid node)

The returned string is only valid as long as the rcl_publisher_t is valid. The value of the string may change if the topic name changes, and therefore copying the string is recommended if this is a concern.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher pointer to the publisher

Returns: name string if successful, otherwise NULL

Definition at line 381 of file publisher.c.

References rcl_publisher_s::impl, and rcl_publisher_is_valid_except_context().

Referenced by rclcpp::PublisherBase::get_topic_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_publisher_init()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publisher_init	(	rcl_publisher_t *	publisher,
		const rcl_node_t *	node,
		const rosidl_message_type_support_t *	type_support,
		const char *	topic_name,
		const rcl_publisher_options_t *	options
	)

Initialize a rcl publisher.

After calling this function on a rcl_publisher_t, it can be used to publish messages of the given type to the given topic using rcl_publish().

The given rcl_node_t must be valid and the resulting rcl_publisher_t is only valid as long as the given rcl_node_t remains valid.

The rosidl_message_type_support_t is obtained on a per .msg type basis. When the user defines a ROS message, code is generated which provides the required rosidl_message_type_support_t object. This object can be obtained using a language appropriate mechanism.

Todo:: TODO(wjwwood) write these instructions once and link to it instead

For C, a macro can be used (for example std_msgs/String):

#include <rosidl_runtime_c/message_type_support_struct.h>
#include <std_msgs/msg/string.h>
const rosidl_message_type_support_t * string_ts =
  ROSIDL_GET_MSG_TYPE_SUPPORT(std_msgs, msg, String);

For C++, a template function is used:

#include <rosidl_typesupport_cpp/message_type_support.hpp>
#include <std_msgs/msg/string.hpp>
const rosidl_message_type_support_t * string_ts =
  rosidl_typesupport_cpp::get_message_type_support_handle<std_msgs::msg::String>();

The rosidl_message_type_support_t object contains message type specific information used to publish messages.

The topic name must be a c string which follows the topic and service name format rules for unexpanded names, also known as non-fully qualified names:

See also: rcl_expand_topic_name

The options struct allows the user to set the quality of service settings as well as a custom allocator which is used when initializing/finalizing the publisher to allocate space for incidentals, e.g. the topic name string.

Expected usage (for C messages):

#include <rcl/rcl.h>
#include <rosidl_runtime_c/message_type_support_struct.h>
#include <std_msgs/msg/string.h>

rcl_node_t node = rcl_get_zero_initialized_node();
rcl_node_options_t node_ops = rcl_node_get_default_options();
rcl_ret_t ret = rcl_node_init(&node, "node_name", "/my_namespace", &node_ops);
// ... error handling
const rosidl_message_type_support_t * ts = ROSIDL_GET_MSG_TYPE_SUPPORT(std_msgs, msg, String);
rcl_publisher_t publisher = rcl_get_zero_initialized_publisher();
rcl_publisher_options_t publisher_ops = rcl_publisher_get_default_options();
ret = rcl_publisher_init(&publisher, &node, ts, "chatter", &publisher_ops);
// ... error handling, and on shutdown do finalization:
ret = rcl_publisher_fini(&publisher, &node);
// ... error handling for rcl_publisher_fini()
ret = rcl_node_fini(&node);
// ... error handling for rcl_deinitialize_node()

Attribute	Adherence
Allocates Memory	Yes
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in,out]	publisher	preallocated publisher structure
[in]	node	valid rcl node handle
[in]	type_support	type support object for the topic's type
[in]	topic_name	the name of the topic to publish on
[in]	options	publisher options, including quality of service settings

Returns: RCL_RET_OK if the publisher was initialized successfully, or; RCL_RET_NODE_INVALID if the node is invalid, or; RCL_RET_ALREADY_INIT if the publisher is already initialized, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_BAD_ALLOC if allocating memory fails, or; RCL_RET_TOPIC_NAME_INVALID if the given topic name is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 47 of file publisher.c.

References rcl_publisher_options_s::allocator, rcl_node_s::context, rcl_publisher_s::impl, rcl_publisher_options_s::qos, RCL_CHECK_ALLOCATOR_WITH_MSG, rcl_node_get_rmw_handle(), rcl_node_is_valid(), rcl_node_resolve_name(), RCL_RET_ALREADY_INIT, RCL_RET_BAD_ALLOC, RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_NODE_INVALID, RCL_RET_OK, RCL_RET_TOPIC_NAME_INVALID, RCL_RET_UNKNOWN_SUBSTITUTION, and rcl_publisher_options_s::rmw_publisher_options.

Referenced by rclcpp::PublisherBase::PublisherBase(), and rcl_logging_rosout_init_publisher_for_node().

Here is the call graph for this function:

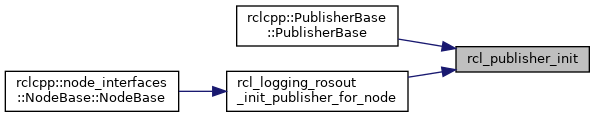

Here is the caller graph for this function:

◆ rcl_publisher_is_valid()

RCL_PUBLIC bool rcl_publisher_is_valid ( const rcl_publisher_t * publisher )

Return true if the publisher is valid, otherwise false.

The bool returned is false if publisher is invalid. The bool returned is true otherwise. In the case where false is to be returned, an error message is set. This function cannot fail.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] publisher pointer to the rcl publisher

Returns: true if publisher is valid, otherwise false

Definition at line 417 of file publisher.c.

References rcl_publisher_s::impl, rcl_context_is_valid(), and rcl_publisher_is_valid_except_context().

Referenced by rcl_borrow_loaned_message(), rcl_publish(), rcl_publish_loaned_message(), rcl_publish_serialized_message(), rcl_publisher_assert_liveliness(), rcl_publisher_can_loan_messages(), rcl_publisher_get_subscription_count(), rcl_publisher_wait_for_all_acked(), and rcl_return_loaned_message_from_publisher().

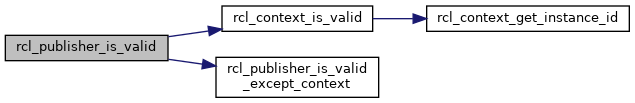

Here is the call graph for this function:

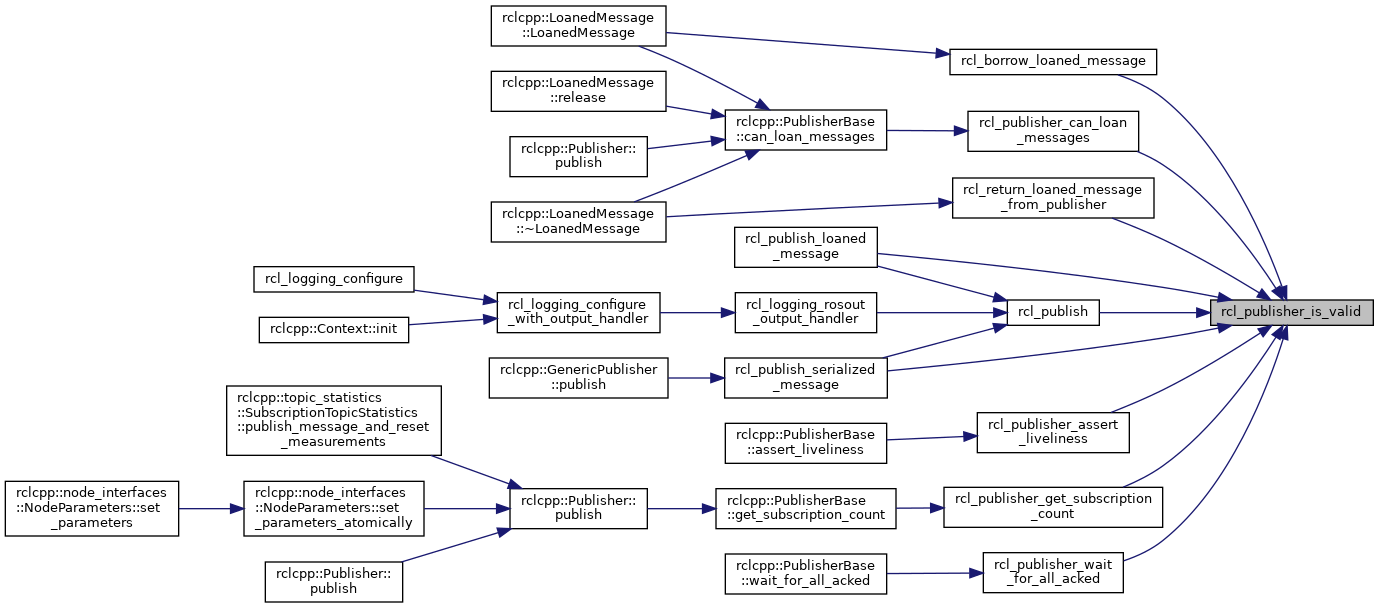

Here is the caller graph for this function:

◆ rcl_publisher_is_valid_except_context()

RCL_PUBLIC bool rcl_publisher_is_valid_except_context ( const rcl_publisher_t * publisher )

Return true if the publisher is valid except the context, otherwise false.

This is used in clean up functions that need to access the publisher, but do not need use any functions with the context.

It is identical to rcl_publisher_is_valid except it ignores the state of the context associated with the publisher.

See also: rcl_publisher_is_valid()

Definition at line 432 of file publisher.c.

References rcl_publisher_s::impl.

Referenced by rclcpp::PublisherBase::get_subscription_count(), rcl_publisher_get_actual_qos(), rcl_publisher_get_context(), rcl_publisher_get_options(), rcl_publisher_get_rmw_handle(), rcl_publisher_get_topic_name(), and rcl_publisher_is_valid().

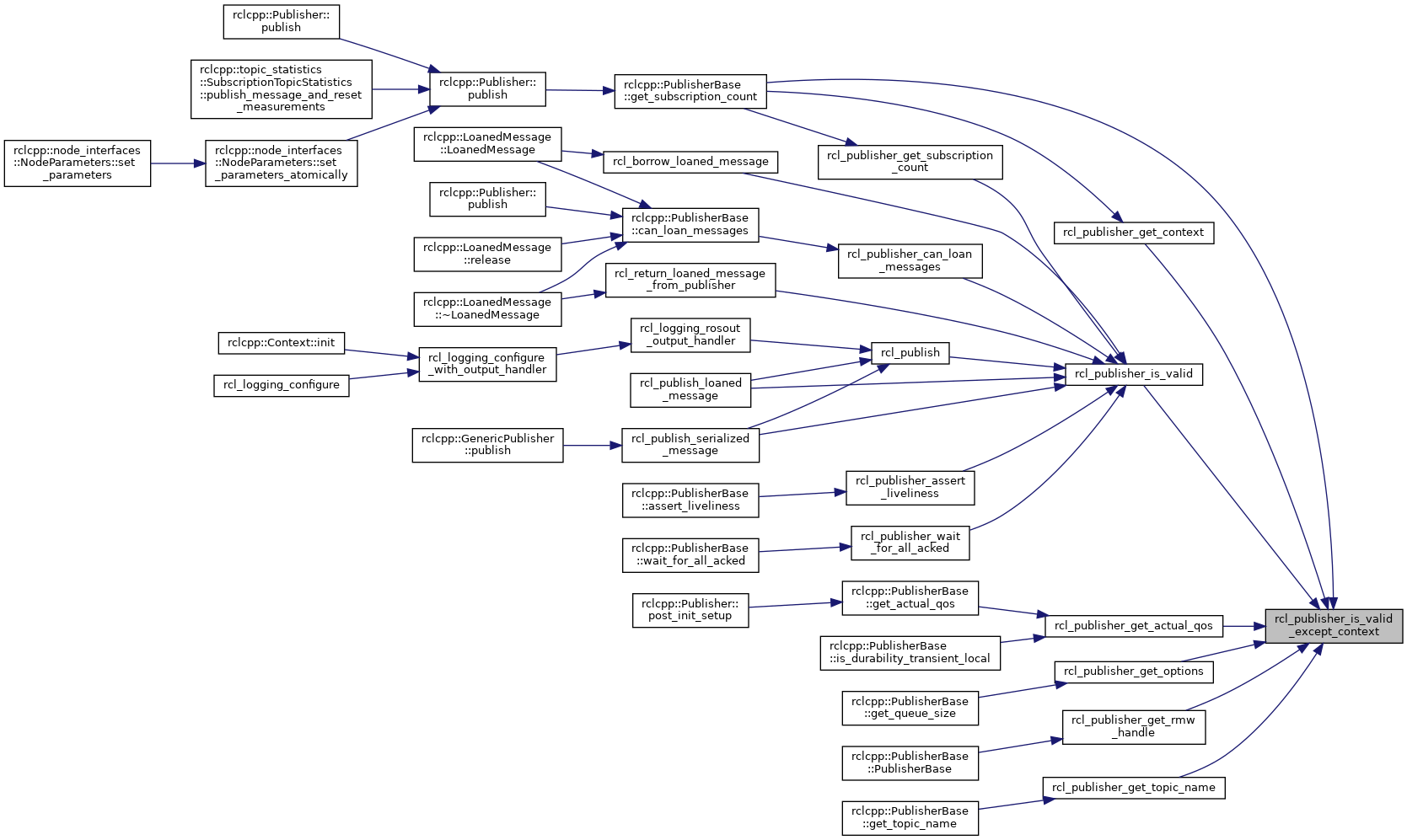

Here is the caller graph for this function:

◆ rcl_publisher_wait_for_all_acked()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_publisher_wait_for_all_acked	(	const rcl_publisher_t *	publisher,
		rcl_duration_value_t	timeout
	)

Wait until all published message data is acknowledged or until the specified timeout elapses.

This function waits until all published message data were acknowledged by peer node or timeout.

The timeout unit is nanoseconds. If the timeout is negative then this function will block indefinitely until all published message data were acknowledged. If the timeout is 0 then this function will be non-blocking; checking all published message data were acknowledged (If acknowledged, return RCL_RET_OK. Otherwise, return RCL_RET_TIMEOUT), but not waiting. If the timeout is greater than 0 then this function will return after that period of time has elapsed (return RCL_RET_TIMEOUT) or all published message data were acknowledged (return RCL_RET_OK).

This function only waits for acknowledgments if the publisher's QOS profile is RELIABLE. Otherwise this function will immediately return RCL_RET_OK.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes
Uses Atomics	No
Lock-Free	No

Parameters

[in]	publisher	handle to the publisher that needs to wait for all acked.
[in]	timeout	the duration to wait for all published message data were acknowledged, in nanoseconds.

Returns: RCL_RET_OK if successful, or; RCL_RET_TIMEOUT if timed out, or; RCL_RET_PUBLISHER_INVALID if publisher is invalid, or; RCL_RET_ERROR if an unspecified error occurs, or; RCL_RET_UNSUPPORTED if the middleware does not support that feature.

Definition at line 346 of file publisher.c.

References rcl_publisher_s::impl, RCL_NS_TO_S, rcl_publisher_is_valid(), RCL_RET_ERROR, RCL_RET_OK, RCL_RET_PUBLISHER_INVALID, RCL_RET_TIMEOUT, and RCL_RET_UNSUPPORTED.

Referenced by rclcpp::PublisherBase::wait_for_all_acked().

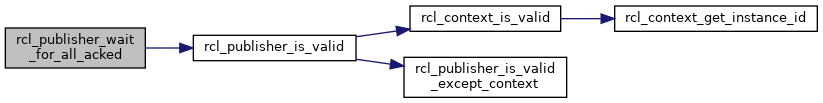

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_return_loaned_message_from_publisher()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_return_loaned_message_from_publisher	(	const rcl_publisher_t *	publisher,
		void *	loaned_message
	)

Return a loaned message previously borrowed from a publisher.

The ownership of the passed in ros message will be transferred back to the middleware. The middleware might deallocate and destroy the message so that the pointer is no longer guaranteed to be valid after that call.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in]	publisher	Publisher to which the loaned message is associated.
[in]	loaned_message	Loaned message to be deallocated and destroyed.

Returns: RCL_RET_OK if successful, or; RCL_RET_INVALID_ARGUMENT if an argument is null, or; RCL_RET_UNSUPPORTED if the middleware does not support that feature, or; RCL_RET_PUBLISHER_INVALID if the publisher is invalid, or; RCL_RET_ERROR if an unexpected error occurs and no message can be initialized.

Definition at line 257 of file publisher.c.

References rcl_publisher_s::impl, rcl_publisher_is_valid(), RCL_RET_INVALID_ARGUMENT, and RCL_RET_PUBLISHER_INVALID.

Referenced by rclcpp::LoanedMessage< MessageT, AllocatorT >::~LoanedMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

Classes

Typedefs

Functions

Function Documentation

◆ rcl_borrow_loaned_message()

◆ rcl_get_zero_initialized_publisher()

◆ rcl_publish()

◆ rcl_publish_loaned_message()

◆ rcl_publish_serialized_message()

◆ rcl_publisher_assert_liveliness()

◆ rcl_publisher_can_loan_messages()

◆ rcl_publisher_fini()

◆ rcl_publisher_get_actual_qos()

◆ rcl_publisher_get_context()

◆ rcl_publisher_get_default_options()

◆ rcl_publisher_get_options()

◆ rcl_publisher_get_rmw_handle()

◆ rcl_publisher_get_subscription_count()

◆ rcl_publisher_get_topic_name()

◆ rcl_publisher_init()

◆ rcl_publisher_is_valid()

◆ rcl_publisher_is_valid_except_context()

◆ rcl_publisher_wait_for_all_acked()

◆ rcl_return_loaned_message_from_publisher()
