#include <rclcpp/subscription_base.hpp>

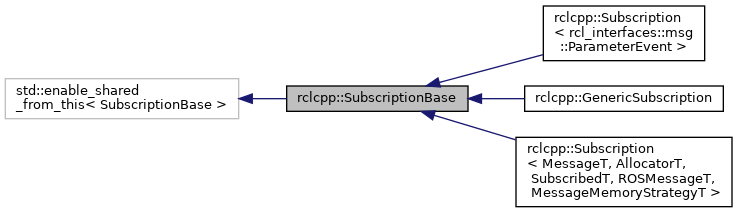

Inheritance diagram for rclcpp::SubscriptionBase:

[legend]

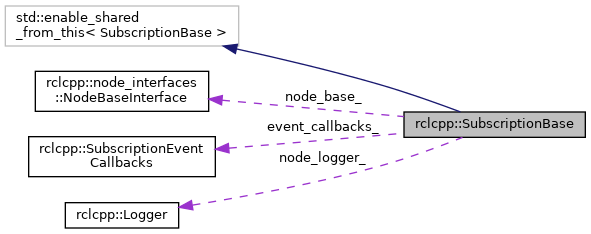

Collaboration diagram for rclcpp::SubscriptionBase:

[legend]

Public Types
using	IntraProcessManagerWeakPtr = std::weak_ptr< rclcpp::experimental::IntraProcessManager >

Public Member Functions
RCLCPP_PUBLIC	SubscriptionBase (rclcpp::node_interfaces::NodeBaseInterface *node_base, const rosidl_message_type_support_t &type_support_handle, const std::string &topic_name, const rcl_subscription_options_t &subscription_options, const SubscriptionEventCallbacks &event_callbacks, bool use_default_callbacks, DeliveredMessageKind delivered_message_kind=DeliveredMessageKind::ROS_MESSAGE)
	Constructor. More...

virtual RCLCPP_PUBLIC	~SubscriptionBase ()
	Destructor.

RCLCPP_PUBLIC void	bind_event_callbacks (const SubscriptionEventCallbacks &event_callbacks, bool use_default_callbacks)
	Add event handlers for passed in event_callbacks.

RCLCPP_PUBLIC const char *	get_topic_name () const
	Get the topic that this subscription is subscribed on.

RCLCPP_PUBLIC std::shared_ptr< rcl_subscription_t >	get_subscription_handle ()

RCLCPP_PUBLIC std::shared_ptr< const rcl_subscription_t >	get_subscription_handle () const

RCLCPP_PUBLIC const std::unordered_map< rcl_subscription_event_type_t, std::shared_ptr< rclcpp::EventHandlerBase > > &	get_event_handlers () const
	Get all the QoS event handlers associated with this subscription. More...

RCLCPP_PUBLIC rclcpp::QoS	get_actual_qos () const
	Get the actual QoS settings, after the defaults have been determined. More...

RCLCPP_PUBLIC bool	take_type_erased (void *message_out, rclcpp::MessageInfo &message_info_out)
	Take the next inter-process message from the subscription as a type erased pointer. More...

RCLCPP_PUBLIC bool	take_serialized (rclcpp::SerializedMessage &message_out, rclcpp::MessageInfo &message_info_out)
	Take the next inter-process message, in its serialized form, from the subscription. More...

virtual RCLCPP_PUBLIC std::shared_ptr< void >	create_message ()=0
	Borrow a new message. More...

virtual RCLCPP_PUBLIC std::shared_ptr< rclcpp::SerializedMessage >	create_serialized_message ()=0
	Borrow a new serialized message. More...

virtual RCLCPP_PUBLIC void	handle_message (std::shared_ptr< void > &message, const rclcpp::MessageInfo &message_info)=0
	Check if we need to handle the message, and execute the callback if we do. More...

virtual RCLCPP_PUBLIC void	handle_serialized_message (const std::shared_ptr< rclcpp::SerializedMessage > &serialized_message, const rclcpp::MessageInfo &message_info)=0

virtual RCLCPP_PUBLIC void	handle_loaned_message (void *loaned_message, const rclcpp::MessageInfo &message_info)=0

virtual RCLCPP_PUBLIC void	return_message (std::shared_ptr< void > &message)=0
	Return the message borrowed in create_message. More...

virtual RCLCPP_PUBLIC void	return_serialized_message (std::shared_ptr< rclcpp::SerializedMessage > &message)=0
	Return the message borrowed in create_serialized_message. More...

RCLCPP_PUBLIC const rosidl_message_type_support_t &	get_message_type_support_handle () const

RCLCPP_PUBLIC bool	is_serialized () const
	Return if the subscription is serialized. More...

RCLCPP_PUBLIC DeliveredMessageKind	get_delivered_message_kind () const
	Return the delivered message kind. More...

RCLCPP_PUBLIC size_t	get_publisher_count () const
	Get matching publisher count. More...

RCLCPP_PUBLIC bool	can_loan_messages () const
	Check if subscription instance can loan messages. More...

RCLCPP_PUBLIC void	setup_intra_process (uint64_t intra_process_subscription_id, IntraProcessManagerWeakPtr weak_ipm)
	Implemenation detail.

RCLCPP_PUBLIC rclcpp::Waitable::SharedPtr	get_intra_process_waitable () const
	Return the waitable for intra-process. More...

RCLCPP_PUBLIC bool	exchange_in_use_by_wait_set_state (void *pointer_to_subscription_part, bool in_use_state)
	Exchange state of whether or not a part of the subscription is used by a wait set. More...

RCLCPP_PUBLIC std::vector< rclcpp::NetworkFlowEndpoint >	get_network_flow_endpoints () const
	Get network flow endpoints. More...

void	set_on_new_message_callback (std::function< void(size_t)> callback)
	Set a callback to be called when each new message is received. More...

void	clear_on_new_message_callback ()
	Unset the callback registered for new messages, if any.

void	set_on_new_intra_process_message_callback (std::function< void(size_t)> callback)
	Set a callback to be called when each new intra-process message is received. More...

void	clear_on_new_intra_process_message_callback ()
	Unset the callback registered for new intra-process messages, if any.

void	set_on_new_qos_event_callback (std::function< void(size_t)> callback, rcl_subscription_event_type_t event_type)
	Set a callback to be called when each new qos event instance occurs. More...

void	clear_on_new_qos_event_callback (rcl_subscription_event_type_t event_type)
	Unset the callback registered for new qos events, if any.

RCLCPP_PUBLIC bool	is_cft_enabled () const
	Check if content filtered topic feature of the subscription instance is enabled. More...

RCLCPP_PUBLIC void	set_content_filter (const std::string &filter_expression, const std::vector< std::string > &expression_parameters={})
	Set the filter expression and expression parameters for the subscription. More...

RCLCPP_PUBLIC rclcpp::ContentFilterOptions	get_content_filter () const
	Get the filter expression and expression parameters for the subscription. More...

virtual RCLCPP_PUBLIC rclcpp::dynamic_typesupport::DynamicMessageType::SharedPtr	get_shared_dynamic_message_type ()=0

virtual RCLCPP_PUBLIC rclcpp::dynamic_typesupport::DynamicMessage::SharedPtr	get_shared_dynamic_message ()=0

virtual RCLCPP_PUBLIC rclcpp::dynamic_typesupport::DynamicSerializationSupport::SharedPtr	get_shared_dynamic_serialization_support ()=0

virtual RCLCPP_PUBLIC rclcpp::dynamic_typesupport::DynamicMessage::SharedPtr	create_dynamic_message ()=0
	Borrow a new serialized message (this clones!) More...

virtual RCLCPP_PUBLIC void	return_dynamic_message (rclcpp::dynamic_typesupport::DynamicMessage::SharedPtr &message)=0

virtual RCLCPP_PUBLIC void	handle_dynamic_message (const rclcpp::dynamic_typesupport::DynamicMessage::SharedPtr &message, const rclcpp::MessageInfo &message_info)=0

RCLCPP_PUBLIC bool	take_dynamic_message (rclcpp::dynamic_typesupport::DynamicMessage &message_out, rclcpp::MessageInfo &message_info_out)

Protected Member Functions
template<typename EventCallbackT >
void	add_event_handler (const EventCallbackT &callback, const rcl_subscription_event_type_t event_type)

RCLCPP_PUBLIC void	default_incompatible_qos_callback (QOSRequestedIncompatibleQoSInfo &info) const

RCLCPP_PUBLIC void	default_incompatible_type_callback (IncompatibleTypeInfo &info) const

RCLCPP_PUBLIC bool	matches_any_intra_process_publishers (const rmw_gid_t *sender_gid) const

RCLCPP_PUBLIC void	set_on_new_message_callback (rcl_event_callback_t callback, const void *user_data)

Protected Attributes
rclcpp::node_interfaces::NodeBaseInterface *const	node_base_

std::shared_ptr< rcl_node_t >	node_handle_

std::recursive_mutex	callback_mutex_

std::function< void(size_t)>	on_new_message_callback_ {nullptr}

std::shared_ptr< rcl_subscription_t >	subscription_handle_

std::shared_ptr< rcl_subscription_t >	intra_process_subscription_handle_

rclcpp::Logger	node_logger_

std::unordered_map< rcl_subscription_event_type_t, std::shared_ptr< rclcpp::EventHandlerBase > >	event_handlers_

bool	use_intra_process_

IntraProcessManagerWeakPtr	weak_ipm_

uint64_t	intra_process_subscription_id_

std::shared_ptr< rclcpp::experimental::SubscriptionIntraProcessBase >	subscription_intra_process_

const SubscriptionEventCallbacks	event_callbacks_

Detailed Description

Virtual base class for subscriptions. This pattern allows us to iterate over different template specializations of Subscription, among other things.

Definition at line 89 of file subscription_base.hpp.

Constructor & Destructor Documentation

◆ SubscriptionBase()

SubscriptionBase::SubscriptionBase	(	rclcpp::node_interfaces::NodeBaseInterface *	node_base,
		const rosidl_message_type_support_t &	type_support_handle,
		const std::string &	topic_name,
		const rcl_subscription_options_t &	subscription_options,
		const SubscriptionEventCallbacks &	event_callbacks,
		bool	use_default_callbacks,
		DeliveredMessageKind	delivered_message_kind = `DeliveredMessageKind::ROS_MESSAGE`
	)

Constructor.

This accepts rcl_subscription_options_t instead of rclcpp::SubscriptionOptions because rclcpp::SubscriptionOptions::to_rcl_subscription_options depends on the message type.

Parameters

[in]	node_base	NodeBaseInterface pointer used in parts of the setup.
[in]	type_support_handle	rosidl type support struct, for the Message type of the topic.
[in]	topic_name	Name of the topic to subscribe to.
[in]	subscription_options	Options for the subscription.
[in]	delivered_message_kind	Enum flag to change how the message will be received and delivered

Definition at line 40 of file subscription_base.cpp.

References bind_event_callbacks(), rclcpp::expand_topic_or_service_name(), rclcpp::Logger::get_child(), rclcpp::get_node_logger(), rcl_get_zero_initialized_subscription(), rcl_node_get_name(), rcl_node_get_namespace(), RCL_RET_OK, RCL_RET_TOPIC_NAME_INVALID, rcl_subscription_fini(), and rcl_subscription_init().

Here is the call graph for this function:

Member Function Documentation

◆ can_loan_messages()

bool SubscriptionBase::can_loan_messages ( ) const

Check if subscription instance can loan messages.

Depending on the middleware and the message type, this will return true if the middleware can allocate a ROS message instance.

Returns: boolean flag indicating if middleware can loan messages.

Definition at line 302 of file subscription_base.cpp.

References rcl_subscription_can_loan_messages().

Here is the call graph for this function:

◆ create_dynamic_message()

virtual RCLCPP_PUBLIC rclcpp::dynamic_typesupport::DynamicMessage::SharedPtr rclcpp::SubscriptionBase::create_dynamic_message ( )

pure virtual

Borrow a new serialized message (this clones!)

Returns: Shared pointer to a rclcpp::dynamic_typesupport::DynamicMessage.

Implemented in rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >, rclcpp::Subscription< rcl_interfaces::msg::ParameterEvent >, and rclcpp::GenericSubscription.

◆ create_message()

virtual RCLCPP_PUBLIC std::shared_ptr<void> rclcpp::SubscriptionBase::create_message ( )

pure virtual

Borrow a new message.

Returns: Shared pointer to the fresh message.

Implemented in rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >, rclcpp::Subscription< rcl_interfaces::msg::ParameterEvent >, and rclcpp::GenericSubscription.

◆ create_serialized_message()

virtual RCLCPP_PUBLIC std::shared_ptr<rclcpp::SerializedMessage> rclcpp::SubscriptionBase::create_serialized_message ( )

pure virtual

Borrow a new serialized message.

Returns: Shared pointer to a rcl_message_serialized_t.

Implemented in rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >, rclcpp::Subscription< rcl_interfaces::msg::ParameterEvent >, and rclcpp::GenericSubscription.

◆ exchange_in_use_by_wait_set_state()

bool SubscriptionBase::exchange_in_use_by_wait_set_state	(	void *	pointer_to_subscription_part,
		bool	in_use_state
	)

Exchange state of whether or not a part of the subscription is used by a wait set.

Used to ensure parts of the subscription are not used with multiple wait sets simultaneously.

Parameters

[in]	pointer_to_subscription_part	address of a subscription part
[in]	in_use_state	the new state to exchange, true means "now in use", and false means "no longer in use".

Returns: the current "in use" state.

Exceptions

std::invalid_argument	If pointer_to_subscription_part is nullptr.
std::runtime_error	If the pointer given is not a pointer to one of the parts of the subscription which can be used with a wait set.

Definition at line 380 of file subscription_base.cpp.

References get_intra_process_waitable().

Here is the call graph for this function:

◆ get_actual_qos()

rclcpp::QoS SubscriptionBase::get_actual_qos ( ) const

Get the actual QoS settings, after the defaults have been determined.

The actual configuration applied when using RMW_QOS_POLICY_*_SYSTEM_DEFAULT can only be resolved after the creation of the subscription, and it depends on the underlying rmw implementation. If the underlying setting in use can't be represented in ROS terms, it will be set to RMW_QOS_POLICY_*_UNKNOWN. May throw runtime_error when an unexpected error occurs.

Returns: The actual qos settings.

Exceptions

std::runtime_error if failed to get qos settings

Definition at line 200 of file subscription_base.cpp.

References rclcpp::QoSInitialization::from_rmw(), and rcl_subscription_get_actual_qos().

Referenced by rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >::Subscription().

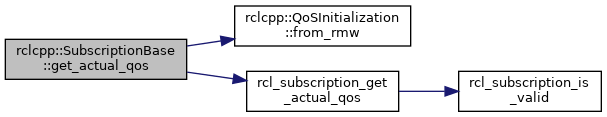

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_content_filter()

rclcpp::ContentFilterOptions SubscriptionBase::get_content_filter ( ) const

Get the filter expression and expression parameters for the subscription.

Returns: rclcpp::ContentFilterOptions The content filter options to get.

Exceptions

RCLBadAlloc	if memory cannot be allocated
RCLError	if an unexpect error occurs

Definition at line 504 of file subscription_base.cpp.

References rclcpp::ContentFilterOptions::expression_parameters, rclcpp::ContentFilterOptions::filter_expression, rclcpp::get_logger(), rcl_get_zero_initialized_subscription_content_filter_options(), RCL_RET_OK, rcl_subscription_content_filter_options_fini(), and rcl_subscription_get_content_filter().

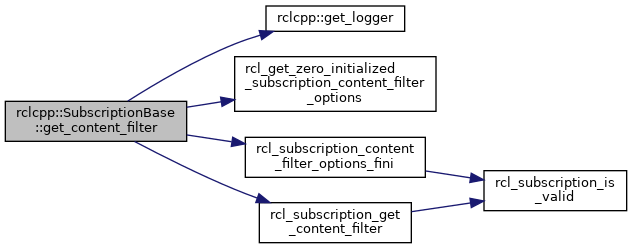

Here is the call graph for this function:

◆ get_delivered_message_kind()

rclcpp::DeliveredMessageKind SubscriptionBase::get_delivered_message_kind ( ) const

Return the delivered message kind.

Returns: DeliveredMessageKind, which adjusts how messages are received and delivered.

Definition at line 271 of file subscription_base.cpp.

◆ get_event_handlers()

const std::unordered_map< rcl_subscription_event_type_t, std::shared_ptr< rclcpp::EventHandlerBase > > & SubscriptionBase::get_event_handlers ( ) const

Get all the QoS event handlers associated with this subscription.

Returns: The map of QoS event handlers.

Definition at line 194 of file subscription_base.cpp.

◆ get_intra_process_waitable()

rclcpp::Waitable::SharedPtr SubscriptionBase::get_intra_process_waitable ( ) const

Return the waitable for intra-process.

Returns: the waitable sharedpointer for intra-process, or nullptr if intra-process is not setup.

Exceptions

std::runtime_error if the intra process manager is destroyed

Definition at line 321 of file subscription_base.cpp.

Referenced by exchange_in_use_by_wait_set_state().

Here is the caller graph for this function:

◆ get_network_flow_endpoints()

std::vector< rclcpp::NetworkFlowEndpoint > SubscriptionBase::get_network_flow_endpoints ( ) const

Get network flow endpoints.

Describes network flow endpoints that this subscription is receiving messages on

Returns: vector of NetworkFlowEndpoint

Definition at line 403 of file subscription_base.cpp.

References RCL_RET_OK.

◆ get_publisher_count()

size_t SubscriptionBase::get_publisher_count ( ) const

Get matching publisher count.

Returns: The number of publishers on this topic.

Definition at line 277 of file subscription_base.cpp.

References RCL_RET_OK, and rcl_subscription_get_publisher_count().

Here is the call graph for this function:

◆ handle_message()

virtual RCLCPP_PUBLIC void rclcpp::SubscriptionBase::handle_message	(	std::shared_ptr< void > &	message,
		const rclcpp::MessageInfo &	message_info
	)

pure virtual

Check if we need to handle the message, and execute the callback if we do.

Parameters

[in]	message	Shared pointer to the message to handle.
[in]	message_info	Metadata associated with this message.

Implemented in rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >, rclcpp::Subscription< rcl_interfaces::msg::ParameterEvent >, and rclcpp::GenericSubscription.

◆ is_cft_enabled()

bool SubscriptionBase::is_cft_enabled ( ) const

Check if content filtered topic feature of the subscription instance is enabled.

Returns: boolean flag indicating if the content filtered topic of this subscription is enabled.

Definition at line 457 of file subscription_base.cpp.

References rcl_subscription_is_cft_enabled().

Here is the call graph for this function:

◆ is_serialized()

bool SubscriptionBase::is_serialized ( ) const

Return if the subscription is serialized.

Returns: true if the subscription is serialized, false otherwise

Definition at line 265 of file subscription_base.cpp.

◆ return_message()

virtual RCLCPP_PUBLIC void rclcpp::SubscriptionBase::return_message ( std::shared_ptr< void > & message )

pure virtual

Return the message borrowed in create_message.

Parameters

[in] message Shared pointer to the returned message.

Implemented in rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >, rclcpp::Subscription< rcl_interfaces::msg::ParameterEvent >, and rclcpp::GenericSubscription.

◆ return_serialized_message()

virtual RCLCPP_PUBLIC void rclcpp::SubscriptionBase::return_serialized_message ( std::shared_ptr< rclcpp::SerializedMessage > & message )

pure virtual

Return the message borrowed in create_serialized_message.

Parameters

[in] message Shared pointer to the returned message.

Implemented in rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >, rclcpp::Subscription< rcl_interfaces::msg::ParameterEvent >, and rclcpp::GenericSubscription.

◆ set_content_filter()

void SubscriptionBase::set_content_filter	(	const std::string &	filter_expression,
		const std::vector< std::string > &	expression_parameters = `{}`
	)

Set the filter expression and expression parameters for the subscription.

Parameters

[in] filter_expression A filter expression to set.

See also: ContentFilterOptions::filter_expression An empty string ("") will clear the content filter setting of the subscription.

Parameters

[in] expression_parameters Array of expression parameters to set.

See also: ContentFilterOptions::expression_parameters

Exceptions

RCLBadAlloc	if memory cannot be allocated
RCLError	if an unexpect error occurs

Definition at line 463 of file subscription_base.cpp.

References rclcpp::get_c_string(), rclcpp::get_c_vector_string(), rclcpp::get_logger(), rcl_get_zero_initialized_subscription_content_filter_options(), RCL_RET_OK, rcl_subscription_content_filter_options_fini(), rcl_subscription_content_filter_options_init(), and rcl_subscription_set_content_filter().

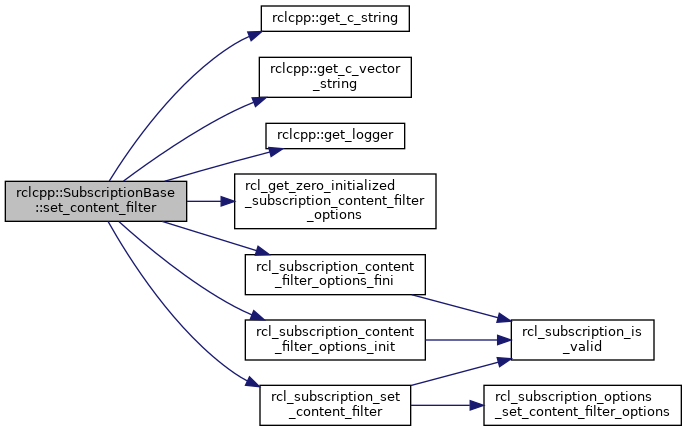

Here is the call graph for this function:

◆ set_on_new_intra_process_message_callback()

void rclcpp::SubscriptionBase::set_on_new_intra_process_message_callback ( std::function< void(size_t)> callback )

inline

Set a callback to be called when each new intra-process message is received.

The callback receives a size_t which is the number of messages received since the last time this callback was called. Normally this is 1, but can be > 1 if messages were received before any callback was set.

Calling it again will clear any previously set callback.

This function is thread-safe.

If you want more information available in the callback, like the subscription or other information, you may use a lambda with captures or std::bind.

See also: rclcpp::SubscriptionIntraProcessBase::set_on_ready_callback

Parameters

[in] callback functor to be called when a new message is received

Definition at line 436 of file subscription_base.hpp.

References rclcpp::get_logger().

Here is the call graph for this function:

◆ set_on_new_message_callback()

void rclcpp::SubscriptionBase::set_on_new_message_callback ( std::function< void(size_t)> callback )

inline

Set a callback to be called when each new message is received.

The callback receives a size_t which is the number of messages received since the last time this callback was called. Normally this is 1, but can be > 1 if messages were received before any callback was set.

Since this callback is called from the middleware, you should aim to make it fast and not blocking. If you need to do a lot of work or wait for some other event, you should spin it off to another thread, otherwise you risk blocking the middleware.

Calling it again will clear any previously set callback.

This function is thread-safe.

If you want more information available in the callback, like the subscription or other information, you may use a lambda with captures or std::bind.

See also: rmw_subscription_set_on_new_message_callback; rcl_subscription_set_on_new_message_callback

Parameters

[in] callback functor to be called when a new message is received

Definition at line 358 of file subscription_base.hpp.

Referenced by clear_on_new_message_callback().

Here is the caller graph for this function:

◆ set_on_new_qos_event_callback()

void rclcpp::SubscriptionBase::set_on_new_qos_event_callback	(	std::function< void(size_t)>	callback,
		rcl_subscription_event_type_t	event_type
	)

inline

Set a callback to be called when each new qos event instance occurs.

The callback receives a size_t which is the number of events that occurred since the last time this callback was called. Normally this is 1, but can be > 1 if events occurred before any callback was set.

Since this callback is called from the middleware, you should aim to make it fast and not blocking. If you need to do a lot of work or wait for some other event, you should spin it off to another thread, otherwise you risk blocking the middleware.

Calling it again will clear any previously set callback.

An exception will be thrown if the callback is not callable.

This function is thread-safe.

If you want more information available in the callback, like the qos event or other information, you may use a lambda with captures or std::bind.

See also: rclcpp::EventHandlerBase::set_on_ready_callback

Parameters

[in]	callback	functor to be called when a new event occurs
[in]	event_type	identifier for the qos event we want to attach the callback to

Definition at line 499 of file subscription_base.hpp.

References rclcpp::get_logger().

Here is the call graph for this function:

◆ take_serialized()

bool SubscriptionBase::take_serialized	(	rclcpp::SerializedMessage &	message_out,
		rclcpp::MessageInfo &	message_info_out
	)

Take the next inter-process message, in its serialized form, from the subscription.

For now, if data is taken (written) into the message_out and message_info_out then true will be returned. Unlike Subscription::take(), taking data serialized is not possible via intra-process for the time being, so it will not need to de-duplicate data in any case.

Parameters

[out]	message_out	The serialized message data structure used to store the taken message.
[out]	message_info_out	The message info for the taken message.

Returns: true if data was taken and is valid, otherwise false

Exceptions

any	rcl errors from rcl_take,

See also: rclcpp::exceptions::throw_from_rcl_error()

Definition at line 238 of file subscription_base.cpp.

References rclcpp::SerializedMessage::get_rcl_serialized_message(), rclcpp::MessageInfo::get_rmw_message_info(), RCL_RET_OK, RCL_RET_SUBSCRIPTION_TAKE_FAILED, and rcl_take_serialized_message().

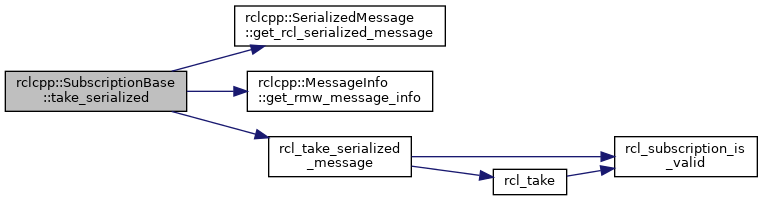

Here is the call graph for this function:

◆ take_type_erased()

bool SubscriptionBase::take_type_erased	(	void *	message_out,
		rclcpp::MessageInfo &	message_info_out
	)

Take the next inter-process message from the subscription as a type erased pointer.

See also: Subscription::take() for details on how this function works.

The only difference is that it takes a type erased pointer rather than a reference to the exact message type.

This type erased version facilitates using the subscriptions in a type agnostic way using SubscriptionBase::create_message() and SubscriptionBase::handle_message().

Parameters

[out]	message_out	The type erased message pointer into which take will copy the data.
[out]	message_info_out	The message info for the taken message.

Returns: true if data was taken and is valid, otherwise false

Exceptions

any	rcl errors from rcl_take,

See also: rclcpp::exceptions::throw_from_rcl_error()

Definition at line 213 of file subscription_base.cpp.

References rclcpp::MessageInfo::get_rmw_message_info(), RCL_RET_OK, RCL_RET_SUBSCRIPTION_TAKE_FAILED, and rcl_take().

Referenced by rclcpp::Subscription< MessageT, AllocatorT, SubscribedT, ROSMessageT, MessageMemoryStrategyT >::take().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

rclcpp/include/rclcpp/subscription_base.hpp
rclcpp/src/rclcpp/subscription_base.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SubscriptionBase()

Member Function Documentation

◆ can_loan_messages()

◆ create_dynamic_message()

◆ create_message()

◆ create_serialized_message()

◆ exchange_in_use_by_wait_set_state()

◆ get_actual_qos()

◆ get_content_filter()

◆ get_delivered_message_kind()

◆ get_event_handlers()

◆ get_intra_process_waitable()

◆ get_network_flow_endpoints()

◆ get_publisher_count()

◆ handle_message()

◆ is_cft_enabled()

◆ is_serialized()

◆ return_message()

◆ return_serialized_message()

◆ set_content_filter()

◆ set_on_new_intra_process_message_callback()

◆ set_on_new_message_callback()

◆ set_on_new_qos_event_callback()

◆ take_serialized()

◆ take_type_erased()
