Inheritance diagram for rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >:

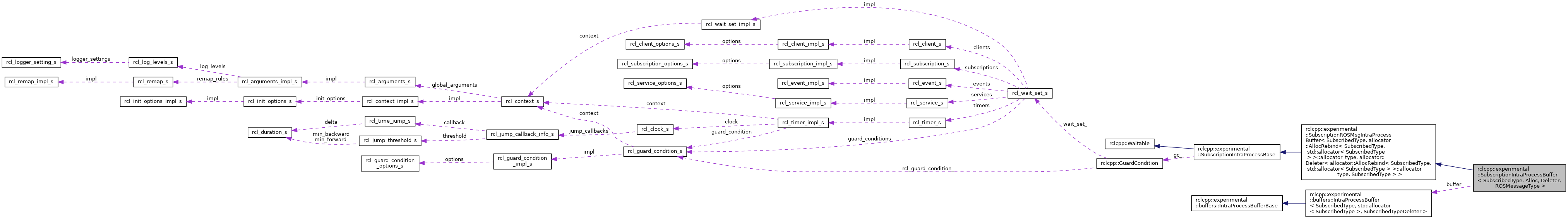

Collaboration diagram for rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >:
Public Types | |
| using | SubscribedTypeAllocatorTraits = allocator::AllocRebind< SubscribedType, Alloc > |
| using | SubscribedTypeAllocator = typename SubscribedTypeAllocatorTraits::allocator_type |
| using | SubscribedTypeDeleter = allocator::Deleter< SubscribedTypeAllocator, SubscribedType > |
| using | ROSMessageTypeAllocatorTraits = allocator::AllocRebind< ROSMessageType, Alloc > |
| using | ROSMessageTypeAllocator = typename ROSMessageTypeAllocatorTraits::allocator_type |
| using | ROSMessageTypeDeleter = allocator::Deleter< ROSMessageTypeAllocator, ROSMessageType > |
| using | ConstMessageSharedPtr = std::shared_ptr< const ROSMessageType > |
| using | MessageUniquePtr = std::unique_ptr< ROSMessageType, ROSMessageTypeDeleter > |
| using | ConstDataSharedPtr = std::shared_ptr< const SubscribedType > |
| using | SubscribedTypeUniquePtr = std::unique_ptr< SubscribedType, SubscribedTypeDeleter > |
| using | BufferUniquePtr = typename rclcpp::experimental::buffers::IntraProcessBuffer< SubscribedType, Alloc, SubscribedTypeDeleter >::UniquePtr |
 Public Types inherited from rclcpp::experimental::SubscriptionROSMsgIntraProcessBuffer< SubscribedType, allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, allocator::Deleter< allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, SubscribedType > > | |
| using | ROSMessageTypeAllocatorTraits = allocator::AllocRebind< SubscribedType, allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type > |
| using | ROSMessageTypeAllocator = typename ROSMessageTypeAllocatorTraits::allocator_type |
| using | ROSMessageTypeDeleter = allocator::Deleter< ROSMessageTypeAllocator, SubscribedType > |
| using | ConstMessageSharedPtr = std::shared_ptr< const SubscribedType > |
| using | MessageUniquePtr = std::unique_ptr< SubscribedType, ROSMessageTypeDeleter > |
| Public Types inherited from rclcpp::experimental::SubscriptionIntraProcessBase | |
| enum class | EntityType : std::size_t { Subscription } |
Public Member Functions | |
| SubscriptionIntraProcessBuffer (std::shared_ptr< Alloc > allocator, rclcpp::Context::SharedPtr context, const std::string &topic_name, const rclcpp::QoS &qos_profile, rclcpp::IntraProcessBufferType buffer_type) | |
| bool | is_ready (rcl_wait_set_t *wait_set) override |
| Check if the Waitable is ready. More... | |
| SubscribedTypeUniquePtr | convert_ros_message_to_subscribed_type_unique_ptr (const ROSMessageType &msg) |
| void | provide_intra_process_message (ConstMessageSharedPtr message) override |
| void | provide_intra_process_message (MessageUniquePtr message) override |
| void | provide_intra_process_data (ConstDataSharedPtr message) |
| void | provide_intra_process_data (SubscribedTypeUniquePtr message) |
| bool | use_take_shared_method () const override |
| Public Member Functions inherited from rclcpp::experimental::SubscriptionROSMsgIntraProcessBuffer< SubscribedType, allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, allocator::Deleter< allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, SubscribedType > > | |
| SubscriptionROSMsgIntraProcessBuffer (rclcpp::Context::SharedPtr context, const std::string &topic_name, const rclcpp::QoS &qos_profile) | |
| virtual void | provide_intra_process_message (ConstMessageSharedPtr message)=0 |
| virtual void | provide_intra_process_message (MessageUniquePtr message)=0 |
| Public Member Functions inherited from rclcpp::experimental::SubscriptionIntraProcessBase | |
| RCLCPP_PUBLIC | SubscriptionIntraProcessBase (rclcpp::Context::SharedPtr context, const std::string &topic_name, const rclcpp::QoS &qos_profile) |
| RCLCPP_PUBLIC size_t | get_number_of_ready_guard_conditions () override |
| Get the number of ready guard_conditions. More... | |
| RCLCPP_PUBLIC void | add_to_wait_set (rcl_wait_set_t *wait_set) override |
| Add the Waitable to a wait set. More... | |
| std::shared_ptr< void > | take_data () override=0 |
Take the data so that it can be consumed with execute. More... | |
| std::shared_ptr< void > | take_data_by_entity_id (size_t id) override |
Take the data so that it can be consumed with execute. More... | |
| void | execute (std::shared_ptr< void > &data) override=0 |
| Execute data that is passed in. More... | |
| RCLCPP_PUBLIC const char * | get_topic_name () const |
| RCLCPP_PUBLIC QoS | get_actual_qos () const |
| void | set_on_ready_callback (std::function< void(size_t, int)> callback) override |
| Set a callback to be called when each new message arrives. More... | |
| void | clear_on_ready_callback () override |
| Unset the callback registered for new messages, if any. | |
| Public Member Functions inherited from rclcpp::Waitable | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_subscriptions () |
| Get the number of ready subscriptions. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_timers () |
| Get the number of ready timers. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_clients () |
| Get the number of ready clients. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_events () |
| Get the number of ready events. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_services () |
| Get the number of ready services. More... | |
| RCLCPP_PUBLIC bool | exchange_in_use_by_wait_set_state (bool in_use_state) |
| Exchange the "in use by wait set" state for this timer. More... | |
Protected Member Functions | |
| void | trigger_guard_condition () override |
| Protected Member Functions inherited from rclcpp::experimental::SubscriptionIntraProcessBase | |
| void | invoke_on_new_message () |
Protected Attributes | |
| BufferUniquePtr | buffer_ |
| SubscribedTypeAllocator | subscribed_type_allocator_ |
| SubscribedTypeDeleter | subscribed_type_deleter_ |
| Protected Attributes inherited from rclcpp::experimental::SubscriptionIntraProcessBase | |
| std::recursive_mutex | callback_mutex_ |
| std::function< void(size_t)> | on_new_message_callback_ {nullptr} |
| size_t | unread_count_ {0} |
| rclcpp::GuardCondition | gc_ |
Detailed Description
template<typename SubscribedType, typename Alloc = std::allocator<SubscribedType>, typename Deleter = std::default_delete<SubscribedType>, typename ROSMessageType = SubscribedType>
class rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >
Definition at line 47 of file subscription_intra_process_buffer.hpp.
Member Function Documentation
◆ is_ready()
template<typename SubscribedType , typename Alloc = std::allocator<SubscribedType>, typename Deleter = std::default_delete<SubscribedType>, typename ROSMessageType = SubscribedType>
|
inlineoverridevirtual |
Check if the Waitable is ready.
The input wait set should be the same that was used in a previously call to add_to_wait_set(). The wait set should also have been previously waited on with rcl_wait().
- Parameters
-
[in] wait_set A handle to the wait set the Waitable was previously added to and that has been waited on.
- Returns
trueif the Waitable is ready,falseotherwise.
Implements rclcpp::experimental::SubscriptionIntraProcessBase.
Definition at line 97 of file subscription_intra_process_buffer.hpp.
The documentation for this class was generated from the following file:
- rclcpp/include/rclcpp/experimental/subscription_intra_process_buffer.hpp
