rclcpp::node_interfaces::NodeInterfaces< InterfaceTs > Class Template Reference

A helper class for aggregating node interfaces. More...

#include <rclcpp/node_interfaces/node_interfaces.hpp>

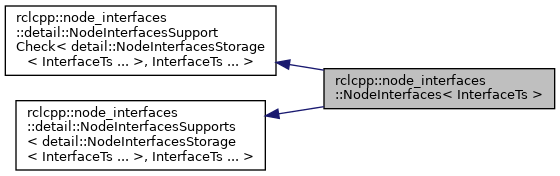

Inheritance diagram for rclcpp::node_interfaces::NodeInterfaces< InterfaceTs >:

Collaboration diagram for rclcpp::node_interfaces::NodeInterfaces< InterfaceTs >:

Public Member Functions
template<typename NodeT >
	NodeInterfaces (NodeT &node)
	Create a new NodeInterfaces object using the given node-like object's interfaces. More...
	NodeInterfaces (std::shared_ptr< InterfaceTs >... args)

Additional Inherited Members
Public Types inherited from rclcpp::node_interfaces::detail::NodeInterfacesSupports< detail::NodeInterfacesStorage< InterfaceTs ... >, InterfaceTs ... >
using	is_supported = std::false_type

Detailed Description

template<typename ... InterfaceTs>
class rclcpp::node_interfaces::NodeInterfaces< InterfaceTs >

A helper class for aggregating node interfaces.

Definition at line 45 of file node_interfaces.hpp.

Constructor & Destructor Documentation

NodeInterfaces()

template<typename ... InterfaceTs>

template<typename NodeT >

rclcpp::node_interfaces::NodeInterfaces< InterfaceTs >::NodeInterfaces ( NodeT &  node )

inline

Create a new NodeInterfaces object using the given node-like object's interfaces.

Specify which interfaces you need by passing them as template parameters.

This allows you to aggregate interfaces from different sources together to pass as a single aggregate object to any functions that take node interfaces or node-likes, without needing to templatize that function.

You may also use this constructor to create a NodeInterfaces that contains a subset of another NodeInterfaces' interfaces.

Finally, this class supports implicit conversion from node-like objects, allowing you to directly pass a node-like to a function that takes a NodeInterfaces object.

Usage examples:

// Suppose we have some function:
void fn(NodeInterfaces<NodeBaseInterface, NodeClockInterface> interfaces);

// Then we can, explicitly:
rclcpp::Node node("some_node");
auto ni = NodeInterfaces<NodeBaseInterface, NodeClockInterface>(node);
fn(ni);

// But also:
fn(node);

// Subsetting a NodeInterfaces object also works!
auto ni_base = NodeInterfaces<NodeBaseInterface>(ni);

// Or aggregate them (you could aggregate interfaces from disparate node-likes)
auto ni_aggregated = NodeInterfaces<NodeBaseInterface, NodeClockInterface>(
  node->get_node_base_interface(),
  node->get_node_clock_interface()
)

// And then to access the interfaces:
// Get with get<>
auto base = ni.get<NodeBaseInterface>();

// Or the appropriate getter
auto clock = ni.get_clock_interface();

You may use any of the standard node interfaces that come with rclcpp:

• rclcpp::node_interfaces::NodeBaseInterface
• rclcpp::node_interfaces::NodeClockInterface
• rclcpp::node_interfaces::NodeGraphInterface
• rclcpp::node_interfaces::NodeLoggingInterface
• rclcpp::node_interfaces::NodeParametersInterface
• rclcpp::node_interfaces::NodeServicesInterface
• rclcpp::node_interfaces::NodeTimeSourceInterface
• rclcpp::node_interfaces::NodeTimersInterface
• rclcpp::node_interfaces::NodeTopicsInterface
• rclcpp::node_interfaces::NodeTypeDescriptionsInterface
• rclcpp::node_interfaces::NodeWaitablesInterface

Or you use custom interfaces as long as you make a template specialization of the rclcpp::node_interfaces::detail::NodeInterfacesSupport struct using the RCLCPP_NODE_INTERFACE_HELPERS_SUPPORT macro.

Usage example:

RCLCPP_NODE_INTERFACE_HELPERS_SUPPORT(rclcpp::node_interfaces::NodeBaseInterface, base)

If you choose not to use the helper macro, then you can specialize the template yourself, but you must:

• Provide a template specialization of the get_from_node_like method that gets the interface from any node-like that stores the interface, using the node-like's getter
• Designate the is_supported type as std::true_type using a using directive
• Provide any number of getter methods to be used to obtain the interface with the NodeInterface object, noting that the getters of the storage class will apply to all supported interfaces.
  • The getter method names should not clash in name with any other interface getter specializations if those other interfaces are meant to be aggregated in the same NodeInterfaces object.

Parameters

[in]

node

Node-like object from which to get the node interfaces

Definition at line 150 of file node_interfaces.hpp.

---

The documentation for this class was generated from the following file:

• rclcpp/include/rclcpp/node_interfaces/node_interfaces.hpp
