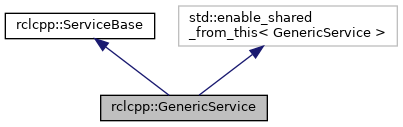

Inheritance diagram for rclcpp::GenericService:

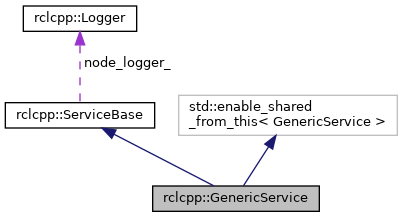

Collaboration diagram for rclcpp::GenericService:

[legend]

Public Types
using	Request = void *

using	Response = void *

using	SharedRequest = std::shared_ptr< void >

using	SharedResponse = std::shared_ptr< void >

using	CallbackType = std::function< void(const SharedRequest, SharedResponse)>

using	CallbackWithHeaderType = std::function< void(const std::shared_ptr< rmw_request_id_t >, const SharedRequest, SharedResponse)>

Public Member Functions
RCLCPP_PUBLIC	GenericService (std::shared_ptr< rcl_node_t > node_handle, const std::string &service_name, const std::string &service_type, GenericServiceCallback any_callback, rcl_service_options_t &service_options)
	Default constructor. More...

RCLCPP_PUBLIC bool	take_request (SharedRequest request_out, rmw_request_id_t &request_id_out)
	Take the next request from the service. More...

RCLCPP_PUBLIC std::shared_ptr< void >	create_request () override

RCLCPP_PUBLIC std::shared_ptr< void >	create_response ()

RCLCPP_PUBLIC std::shared_ptr< rmw_request_id_t >	create_request_header () override

RCLCPP_PUBLIC void	handle_request (std::shared_ptr< rmw_request_id_t > request_header, std::shared_ptr< void > request) override

RCLCPP_PUBLIC void	send_response (rmw_request_id_t &req_id, SharedResponse &response)

Public Member Functions inherited from rclcpp::ServiceBase
RCLCPP_PUBLIC	ServiceBase (std::shared_ptr< rcl_node_t > node_handle)

RCLCPP_PUBLIC const char *	get_service_name ()
	Return the name of the service. More...

RCLCPP_PUBLIC std::shared_ptr< rcl_service_t >	get_service_handle ()
	Return the rcl_service_t service handle in a std::shared_ptr. More...

RCLCPP_PUBLIC std::shared_ptr< const rcl_service_t >	get_service_handle () const
	Return the rcl_service_t service handle in a std::shared_ptr. More...

RCLCPP_PUBLIC bool	take_type_erased_request (void *request_out, rmw_request_id_t &request_id_out)
	Take the next request from the service as a type erased pointer. More...

RCLCPP_PUBLIC bool	exchange_in_use_by_wait_set_state (bool in_use_state)
	Exchange the "in use by wait set" state for this service. More...

RCLCPP_PUBLIC rclcpp::QoS	get_response_publisher_actual_qos () const
	Get the actual response publisher QoS settings, after the defaults have been determined. More...

RCLCPP_PUBLIC rclcpp::QoS	get_request_subscription_actual_qos () const
	Get the actual request subscription QoS settings, after the defaults have been determined. More...

void	set_on_new_request_callback (std::function< void(size_t)> callback)
	Set a callback to be called when each new request is received. More...

void	clear_on_new_request_callback ()
	Unset the callback registered for new requests, if any.

Additional Inherited Members
Protected Member Functions inherited from rclcpp::ServiceBase
RCLCPP_PUBLIC rcl_node_t *	get_rcl_node_handle ()

RCLCPP_PUBLIC const rcl_node_t *	get_rcl_node_handle () const

RCLCPP_PUBLIC void	set_on_new_request_callback (rcl_event_callback_t callback, const void *user_data)

Protected Attributes inherited from rclcpp::ServiceBase
std::shared_ptr< rcl_node_t >	node_handle_

std::recursive_mutex	callback_mutex_

std::function< void(size_t)>	on_new_request_callback_ {nullptr}

std::shared_ptr< rcl_service_t >	service_handle_

bool	owns_rcl_handle_ = true

rclcpp::Logger	node_logger_

std::atomic< bool >	in_use_by_wait_set_ {false}

Detailed Description

Definition at line 216 of file generic_service.hpp.

Constructor & Destructor Documentation

◆ GenericService()

rclcpp::GenericService::GenericService	(	std::shared_ptr< rcl_node_t >	node_handle,
		const std::string &	service_name,
		const std::string &	service_type,
		GenericServiceCallback	any_callback,
		rcl_service_options_t &	service_options
	)

Default constructor.

The constructor for a Service is almost never called directly. Instead, services should be instantiated through the function rclcpp::create_service().

Parameters

[in]	node_handle	NodeBaseInterface pointer that is used in part of the setup.
[in]	service_name	Name of the topic to publish to.
[in]	service_type	The name of service type, e.g. "std_srvs/srv/SetBool".
[in]	any_callback	User defined callback to call when a client request is received.
[in]	service_options	options for the service.

Definition at line 19 of file generic_service.cpp.

References rclcpp::expand_topic_or_service_name(), rclcpp::Logger::get_child(), rclcpp::get_message_typesupport_handle(), rclcpp::get_node_logger(), rclcpp::ServiceBase::get_service_handle(), rclcpp::get_service_typesupport_handle(), rclcpp::get_typesupport_library(), rcl_get_zero_initialized_service(), rcl_node_get_name(), rcl_node_get_namespace(), RCL_RET_OK, RCL_RET_SERVICE_NAME_INVALID, rcl_service_fini(), and rcl_service_init().

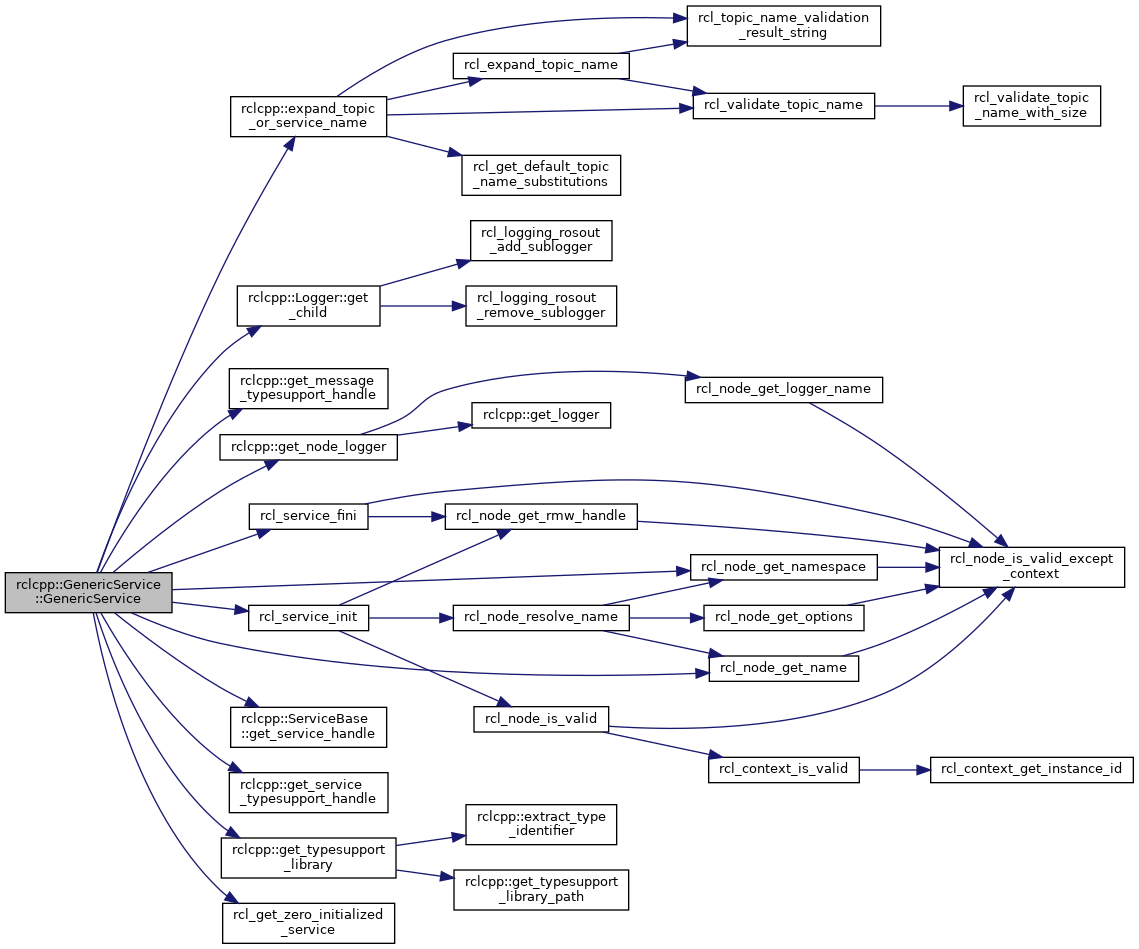

Here is the call graph for this function:

Member Function Documentation

◆ take_request()

bool rclcpp::GenericService::take_request	(	SharedRequest	request_out,
		rmw_request_id_t &	request_id_out
	)

Take the next request from the service.

See also: ServiceBase::take_type_erased_request().

Parameters

[out]	request_out	The reference to a service deserialized request object into which the middleware will copy the taken request.
[out]	request_id_out	The output id for the request which can be used to associate response with this request in the future.

Returns: true if the request was taken, otherwise false.

Exceptions

rclcpp::exceptions::RCLError based exceptions if the underlying rcl calls fail.

Definition at line 100 of file generic_service.cpp.

References rclcpp::ServiceBase::take_type_erased_request().

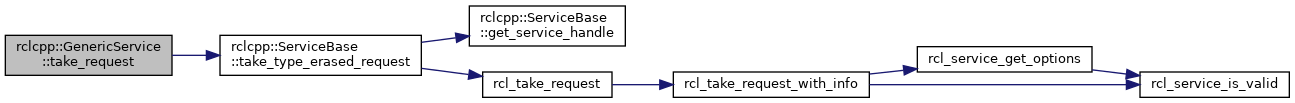

Here is the call graph for this function:

The documentation for this class was generated from the following files:

rclcpp/include/rclcpp/generic_service.hpp
rclcpp/src/rclcpp/generic_service.cpp
