Inheritance diagram for opennav_docking::SimpleNonChargingDock:

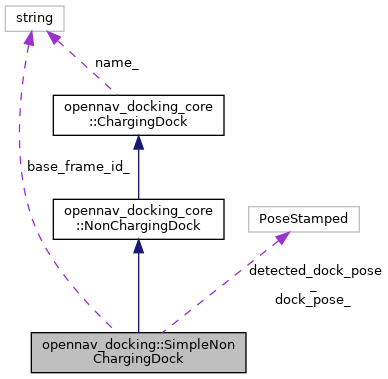

Collaboration diagram for opennav_docking::SimpleNonChargingDock:
Public Member Functions | |
| SimpleNonChargingDock () | |
| Constructor. | |
| virtual void | configure (const rclcpp_lifecycle::LifecycleNode::WeakPtr &parent, const std::string &name, std::shared_ptr< tf2_ros::Buffer > tf) |
| virtual void | cleanup () |
| Method to cleanup resources used on shutdown. | |
| virtual void | activate () |
| Method to active Behavior and any threads involved in execution. | |
| virtual void | deactivate () |
| Method to deactive Behavior and any threads involved in execution. | |
| virtual geometry_msgs::msg::PoseStamped | getStagingPose (const geometry_msgs::msg::Pose &pose, const std::string &frame) |
| Method to obtain the dock's staging pose. This method should likely be using TF and the dock's pose information to find the staging pose from a static or parameterized staging pose relative to the docking pose. More... | |
| virtual bool | getRefinedPose (geometry_msgs::msg::PoseStamped &pose, std::string id) |
| Method to obtain the refined pose of the dock, usually based on sensors. More... | |
| virtual bool | isDocked () |
| Have we made contact with dock? This can be implemented in a variety of ways: by establishing communications with the dock, by monitoring the the drive motor efforts, etc. More... | |
 Public Member Functions inherited from opennav_docking_core::NonChargingDock | |
| virtual | ~NonChargingDock () |
| Virtual destructor. | |
| bool | isCharging () final |
| Are we charging? If a charge dock requires any sort of negotiation to begin charging, that should happen inside this function as this function will be called repeatedly after the docking loop to check if successful. More... | |
| bool | disableCharging () final |
| Undocking while current is still flowing can damage a charge dock so some charge docks provide the ability to disable charging before the robot physically disconnects. The undocking action will not command the robot to move until this returns true. More... | |
| bool | hasStoppedCharging () final |
| Similar to isCharging() but called when undocking. | |
| bool | isCharger () final |
| Gets if this is a charging-typed dock. | |
| Public Member Functions inherited from opennav_docking_core::ChargingDock | |
| virtual | ~ChargingDock () |
| Virtual destructor. | |
| std::string | getName () |
Protected Member Functions | |
| void | jointStateCallback (const sensor_msgs::msg::JointState::SharedPtr state) |
Protected Attributes | |
| rclcpp::Subscription< geometry_msgs::msg::PoseStamped >::SharedPtr | dock_pose_sub_ |
| rclcpp::Publisher< geometry_msgs::msg::PoseStamped >::SharedPtr | dock_pose_pub_ |
| rclcpp::Publisher< geometry_msgs::msg::PoseStamped >::SharedPtr | filtered_dock_pose_pub_ |
| rclcpp::Publisher< geometry_msgs::msg::PoseStamped >::SharedPtr | staging_pose_pub_ |
| geometry_msgs::msg::PoseStamped | detected_dock_pose_ |
| geometry_msgs::msg::PoseStamped | dock_pose_ |
| rclcpp::Subscription< sensor_msgs::msg::JointState >::SharedPtr | joint_state_sub_ |
| std::vector< std::string > | stall_joint_names_ |
| double | stall_velocity_threshold_ |
| double | stall_effort_threshold_ |
| bool | is_stalled_ |
| bool | use_external_detection_pose_ |
| double | external_detection_timeout_ |
| tf2::Quaternion | external_detection_rotation_ |
| double | external_detection_translation_x_ |
| double | external_detection_translation_y_ |
| std::shared_ptr< PoseFilter > | filter_ |
| double | docking_threshold_ |
| std::string | base_frame_id_ |
| double | staging_x_offset_ |
| double | staging_yaw_offset_ |
| rclcpp_lifecycle::LifecycleNode::SharedPtr | node_ |
| std::shared_ptr< tf2_ros::Buffer > | tf2_buffer_ |
| Protected Attributes inherited from opennav_docking_core::ChargingDock | |
| std::string | name_ |
Additional Inherited Members | |
| Public Types inherited from opennav_docking_core::NonChargingDock | |
| using | Ptr = std::shared_ptr< NonChargingDock > |
| Public Types inherited from opennav_docking_core::ChargingDock | |
| using | Ptr = std::shared_ptr< ChargingDock > |
Detailed Description
Definition at line 34 of file simple_non_charging_dock.hpp.
Member Function Documentation
◆ configure()
|
virtual |
- Parameters
-
parent pointer to user's node name The name of this planner tf A pointer to a TF buffer
Implements opennav_docking_core::NonChargingDock.
Definition at line 23 of file simple_non_charging_dock.cpp.
◆ getRefinedPose()
|
virtual |
Method to obtain the refined pose of the dock, usually based on sensors.
- Parameters
-
pose The initial estimate of the dock pose. frame The frame of the initial estimate.
Implements opennav_docking_core::NonChargingDock.
Definition at line 151 of file simple_non_charging_dock.cpp.
◆ getStagingPose()
|
virtual |
Method to obtain the dock's staging pose. This method should likely be using TF and the dock's pose information to find the staging pose from a static or parameterized staging pose relative to the docking pose.
- Returns
- PoseStamped of staging pose in the specified frame
Implements opennav_docking_core::NonChargingDock.
Definition at line 123 of file simple_non_charging_dock.cpp.
◆ isDocked()
|
virtual |
Have we made contact with dock? This can be implemented in a variety of ways: by establishing communications with the dock, by monitoring the the drive motor efforts, etc.
NOTE: this function is expected to return QUICKLY. Blocking here will block the docking controller loop.
Implements opennav_docking_core::NonChargingDock.
Definition at line 220 of file simple_non_charging_dock.cpp.
The documentation for this class was generated from the following files:
- nav2_docking/opennav_docking/include/opennav_docking/simple_non_charging_dock.hpp
- nav2_docking/opennav_docking/src/simple_non_charging_dock.cpp
