Inheritance diagram for nav2_system_tests::NavFnPlannerTester:

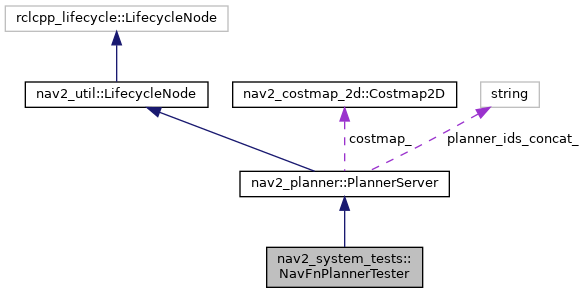

Collaboration diagram for nav2_system_tests::NavFnPlannerTester:
Public Member Functions | |
| void | printCostmap () |
| void | setCostmap (nav2_util::Costmap *costmap) |
| bool | createPath (const geometry_msgs::msg::PoseStamped &goal, nav_msgs::msg::Path &path) |
| void | onCleanup (const rclcpp_lifecycle::State &state) |
| void | onActivate (const rclcpp_lifecycle::State &state) |
| void | onDeactivate (const rclcpp_lifecycle::State &state) |
| void | onConfigure (const rclcpp_lifecycle::State &state) |
 Public Member Functions inherited from nav2_planner::PlannerServer | |
| PlannerServer (const rclcpp::NodeOptions &options=rclcpp::NodeOptions()) | |
| A constructor for nav2_planner::PlannerServer. More... | |
| ~PlannerServer () | |
| A destructor for nav2_planner::PlannerServer. | |
| nav_msgs::msg::Path | getPlan (const geometry_msgs::msg::PoseStamped &start, const geometry_msgs::msg::PoseStamped &goal, const std::string &planner_id, std::function< bool()> cancel_checker) |
| Method to get plan from the desired plugin. More... | |
| Public Member Functions inherited from nav2_util::LifecycleNode | |
| LifecycleNode (const std::string &node_name, const std::string &ns="", const rclcpp::NodeOptions &options=rclcpp::NodeOptions()) | |
| A lifecycle node constructor. More... | |
| void | add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const std::string &description="", const std::string &additional_constraints="", bool read_only=false) |
| Declare a parameter that has no integer or floating point range constraints. More... | |
| void | add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const floating_point_range fp_range, const std::string &description="", const std::string &additional_constraints="", bool read_only=false) |
| Declare a parameter that has a floating point range constraint. More... | |
| void | add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const integer_range int_range, const std::string &description="", const std::string &additional_constraints="", bool read_only=false) |
| Declare a parameter that has an integer range constraint. More... | |
| std::shared_ptr< nav2_util::LifecycleNode > | shared_from_this () |
| Get a shared pointer of this. | |
| nav2_util::CallbackReturn | on_error (const rclcpp_lifecycle::State &) |
| Abstracted on_error state transition callback, since unimplemented as of 2020 in the managed ROS2 node state machine. More... | |
| void | autostart () |
| Automatically configure and active the node. | |
| virtual void | on_rcl_preshutdown () |
| Perform preshutdown activities before our Context is shutdown. Note that this is related to our Context's shutdown sequence, not the lifecycle node state machine. | |
| void | createBond () |
| Create bond connection to lifecycle manager. | |
| void | destroyBond () |
| Destroy bond connection to lifecycle manager. | |
Additional Inherited Members | |
| Public Types inherited from nav2_planner::PlannerServer | |
| using | PlannerMap = std::unordered_map< std::string, nav2_core::GlobalPlanner::Ptr > |
| Protected Types inherited from nav2_planner::PlannerServer | |
| using | ActionToPose = nav2_msgs::action::ComputePathToPose |
| using | ActionToPoseResult = ActionToPose::Result |
| using | ActionThroughPoses = nav2_msgs::action::ComputePathThroughPoses |
| using | ActionThroughPosesResult = ActionThroughPoses::Result |
| using | ActionServerToPose = nav2_util::SimpleActionServer< ActionToPose > |
| using | ActionServerThroughPoses = nav2_util::SimpleActionServer< ActionThroughPoses > |
| Protected Member Functions inherited from nav2_planner::PlannerServer | |
| nav2_util::CallbackReturn | on_configure (const rclcpp_lifecycle::State &state) override |
| Configure member variables and initializes planner. More... | |
| nav2_util::CallbackReturn | on_activate (const rclcpp_lifecycle::State &state) override |
| Activate member variables. More... | |
| nav2_util::CallbackReturn | on_deactivate (const rclcpp_lifecycle::State &state) override |
| Deactivate member variables. More... | |
| nav2_util::CallbackReturn | on_cleanup (const rclcpp_lifecycle::State &state) override |
| Reset member variables. More... | |
| nav2_util::CallbackReturn | on_shutdown (const rclcpp_lifecycle::State &state) override |
| Called when in shutdown state. More... | |
| template<typename T > | |
| bool | isServerInactive (std::unique_ptr< nav2_util::SimpleActionServer< T >> &action_server) |
| Check if an action server is valid / active. More... | |
| template<typename T > | |
| bool | isCancelRequested (std::unique_ptr< nav2_util::SimpleActionServer< T >> &action_server) |
| Check if an action server has a cancellation request pending. More... | |
| void | waitForCostmap () |
| Wait for costmap to be valid with updated sensor data or repopulate after a clearing recovery. Blocks until true without timeout. | |
| template<typename T > | |
| void | getPreemptedGoalIfRequested (std::unique_ptr< nav2_util::SimpleActionServer< T >> &action_server, typename std::shared_ptr< const typename T::Goal > goal) |
| Check if an action server has a preemption request and replaces the goal with the new preemption goal. More... | |
| template<typename T > | |
| bool | getStartPose (typename std::shared_ptr< const typename T::Goal > goal, geometry_msgs::msg::PoseStamped &start) |
| Get the starting pose from costmap or message, if valid. More... | |
| bool | transformPosesToGlobalFrame (geometry_msgs::msg::PoseStamped &curr_start, geometry_msgs::msg::PoseStamped &curr_goal) |
| Transform start and goal poses into the costmap global frame for path planning plugins to utilize. More... | |
| template<typename T > | |
| bool | validatePath (const geometry_msgs::msg::PoseStamped &curr_goal, const nav_msgs::msg::Path &path, const std::string &planner_id) |
| Validate that the path contains a meaningful path. More... | |
| void | computePlan () |
| The action server callback which calls planner to get the path ComputePathToPose. | |
| void | computePlanThroughPoses () |
| The action server callback which calls planner to get the path ComputePathThroughPoses. | |
| void | isPathValid (const std::shared_ptr< nav2_msgs::srv::IsPathValid::Request > request, std::shared_ptr< nav2_msgs::srv::IsPathValid::Response > response) |
| The service callback to determine if the path is still valid. More... | |
| void | publishPlan (const nav_msgs::msg::Path &path) |
| Publish a path for visualization purposes. More... | |
| void | exceptionWarning (const geometry_msgs::msg::PoseStamped &start, const geometry_msgs::msg::PoseStamped &goal, const std::string &planner_id, const std::exception &ex) |
| rcl_interfaces::msg::SetParametersResult | dynamicParametersCallback (std::vector< rclcpp::Parameter > parameters) |
| Callback executed when a parameter change is detected. More... | |
| Protected Member Functions inherited from nav2_util::LifecycleNode | |
| void | printLifecycleNodeNotification () |
| Print notifications for lifecycle node. | |
| void | register_rcl_preshutdown_callback () |
| void | runCleanups () |
| Protected Attributes inherited from nav2_planner::PlannerServer | |
| std::unique_ptr< ActionServerToPose > | action_server_pose_ |
| std::unique_ptr< ActionServerThroughPoses > | action_server_poses_ |
| rclcpp::node_interfaces::OnSetParametersCallbackHandle::SharedPtr | dyn_params_handler_ |
| std::mutex | dynamic_params_lock_ |
| PlannerMap | planners_ |
| pluginlib::ClassLoader< nav2_core::GlobalPlanner > | gp_loader_ |
| std::vector< std::string > | default_ids_ |
| std::vector< std::string > | default_types_ |
| std::vector< std::string > | planner_ids_ |
| std::vector< std::string > | planner_types_ |
| double | max_planner_duration_ |
| rclcpp::Duration | costmap_update_timeout_ |
| std::string | planner_ids_concat_ |
| std::shared_ptr< tf2_ros::Buffer > | tf_ |
| std::shared_ptr< nav2_costmap_2d::Costmap2DROS > | costmap_ros_ |
| std::unique_ptr< nav2_util::NodeThread > | costmap_thread_ |
| nav2_costmap_2d::Costmap2D * | costmap_ |
| std::unique_ptr< nav2_costmap_2d::FootprintCollisionChecker< nav2_costmap_2d::Costmap2D * > > | collision_checker_ |
| rclcpp_lifecycle::LifecyclePublisher< nav_msgs::msg::Path >::SharedPtr | plan_publisher_ |
| rclcpp::Service< nav2_msgs::srv::IsPathValid >::SharedPtr | is_path_valid_service_ |
| Protected Attributes inherited from nav2_util::LifecycleNode | |
| std::unique_ptr< rclcpp::PreShutdownCallbackHandle > | rcl_preshutdown_cb_handle_ {nullptr} |
| std::unique_ptr< bond::Bond > | bond_ {nullptr} |
| double | bond_heartbeat_period |
| rclcpp::TimerBase::SharedPtr | autostart_timer_ |
Detailed Description
Definition at line 43 of file planner_tester.hpp.
The documentation for this class was generated from the following file:
- nav2_system_tests/src/planning/planner_tester.hpp
