nav2_smac_planner::SmacPlannerHybrid Class Reference

Inheritance diagram for nav2_smac_planner::SmacPlannerHybrid:

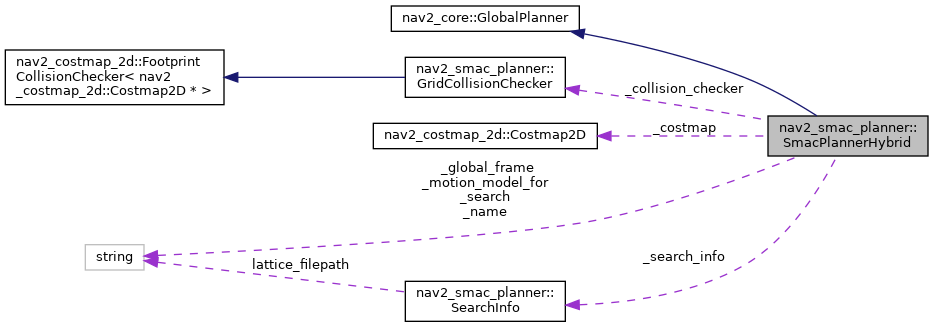

Collaboration diagram for nav2_smac_planner::SmacPlannerHybrid:

Public Member Functions
	SmacPlannerHybrid ()
	constructor
	~SmacPlannerHybrid ()
	destructor
void	configure (const rclcpp_lifecycle::LifecycleNode::WeakPtr &parent, std::string name, std::shared_ptr< tf2_ros::Buffer > tf, std::shared_ptr< nav2_costmap_2d::Costmap2DROS > costmap_ros) override
	Configuring plugin. More...
void	cleanup () override
	Cleanup lifecycle node.
void	activate () override
	Activate lifecycle node.
void	deactivate () override
	Deactivate lifecycle node.
nav_msgs::msg::Path	createPlan (const geometry_msgs::msg::PoseStamped &start, const geometry_msgs::msg::PoseStamped &goal, std::function< bool()> cancel_checker) override
	Creating a plan from start and goal poses. More...
Public Member Functions inherited from nav2_core::GlobalPlanner
virtual	~GlobalPlanner ()
	Virtual destructor.

Protected Member Functions
rcl_interfaces::msg::SetParametersResult	dynamicParametersCallback (std::vector< rclcpp::Parameter > parameters)
	Callback executed when a paramter change is detected. More...

Protected Attributes
std::unique_ptr< AStarAlgorithm< NodeHybrid > >	_a_star
GridCollisionChecker	_collision_checker
std::unique_ptr< Smoother >	_smoother
rclcpp::Clock::SharedPtr	_clock
rclcpp::Logger	_logger {rclcpp::get_logger("SmacPlannerHybrid")}
nav2_costmap_2d::Costmap2D *	_costmap
std::shared_ptr< nav2_costmap_2d::Costmap2DROS >	_costmap_ros
std::unique_ptr< CostmapDownsampler >	_costmap_downsampler
std::string	_global_frame
std::string	_name
float	_lookup_table_dim
float	_tolerance
bool	_downsample_costmap
int	_downsampling_factor
double	_angle_bin_size
unsigned int	_angle_quantizations
bool	_allow_unknown
int	_max_iterations
int	_max_on_approach_iterations
int	_terminal_checking_interval
SearchInfo	_search_info
double	_max_planning_time
double	_lookup_table_size
double	_minimum_turning_radius_global_coords
bool	_debug_visualizations
std::string	_motion_model_for_search
MotionModel	_motion_model
rclcpp_lifecycle::LifecyclePublisher< nav_msgs::msg::Path >::SharedPtr	_raw_plan_publisher
rclcpp_lifecycle::LifecyclePublisher< visualization_msgs::msg::MarkerArray >::SharedPtr	_planned_footprints_publisher
rclcpp_lifecycle::LifecyclePublisher< visualization_msgs::msg::MarkerArray >::SharedPtr	_smoothed_footprints_publisher
rclcpp_lifecycle::LifecyclePublisher< geometry_msgs::msg::PoseArray >::SharedPtr	_expansions_publisher
std::mutex	_mutex
rclcpp_lifecycle::LifecycleNode::WeakPtr	_node
rclcpp::node_interfaces::OnSetParametersCallbackHandle::SharedPtr	_dyn_params_handler
std::shared_ptr< rclcpp::ParameterEventHandler >	_remote_param_subscriber
std::shared_ptr< rclcpp::ParameterCallbackHandle >	_remote_resolution_handler

Additional Inherited Members
Public Types inherited from nav2_core::GlobalPlanner
using	Ptr = std::shared_ptr< GlobalPlanner >

Detailed Description

Definition at line 40 of file smac_planner_hybrid.hpp.

Member Function Documentation

configure()

void nav2_smac_planner::SmacPlannerHybrid::configure ( const rclcpp_lifecycle::LifecycleNode::WeakPtr &  parent, std::string  name, std::shared_ptr< tf2_ros::Buffer >  tf, std::shared_ptr< nav2_costmap_2d::Costmap2DROS >  costmap_ros  )

overridevirtual

Configuring plugin.

Parameters

parent	Lifecycle node pointer
name	Name of plugin map
tf	Shared ptr of TF2 buffer
costmap_ros	Costmap2DROS object

Implements nav2_core::GlobalPlanner.

Definition at line 51 of file smac_planner_hybrid.cpp.

References nav2_smac_planner::SmootherParams::get(), nav2_costmap_2d::Costmap2D::getResolution(), and nav2_smac_planner::GridCollisionChecker::setFootprint().

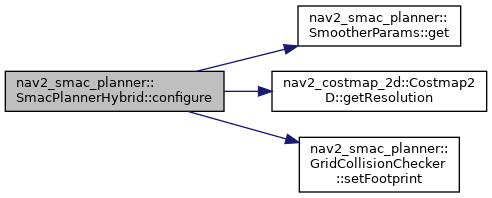

Here is the call graph for this function:

createPlan()

nav_msgs::msg::Path nav2_smac_planner::SmacPlannerHybrid::createPlan ( const geometry_msgs::msg::PoseStamped &  start, const geometry_msgs::msg::PoseStamped &  goal, std::function< bool()>  cancel_checker  )

overridevirtual

Creating a plan from start and goal poses.

Parameters

start	Start pose
goal	Goal pose
cancel_checker	Function to check if the action has been canceled

Returns

nav2_msgs::Path of the generated path

Implements nav2_core::GlobalPlanner.

Definition at line 347 of file smac_planner_hybrid.cpp.

References nav2_costmap_2d::Costmap2D::getResolution(), nav2_costmap_2d::FootprintCollisionChecker< CostmapT >::setCostmap(), nav2_smac_planner::GridCollisionChecker::setFootprint(), and nav2_costmap_2d::Costmap2D::worldToMapContinuous().

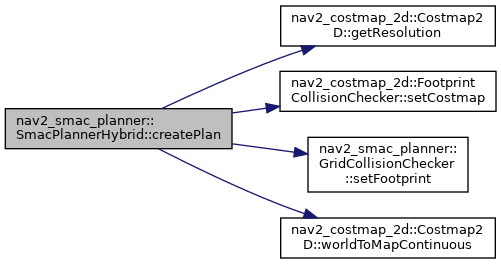

Here is the call graph for this function:

dynamicParametersCallback()

rcl_interfaces::msg::SetParametersResult nav2_smac_planner::SmacPlannerHybrid::dynamicParametersCallback ( std::vector< rclcpp::Parameter >  parameters )

protected

Callback executed when a paramter change is detected.

Parameters

parameters

list of changed parameters

Definition at line 576 of file smac_planner_hybrid.cpp.

References nav2_smac_planner::SmootherParams::get(), nav2_costmap_2d::Costmap2D::getResolution(), and nav2_smac_planner::GridCollisionChecker::setFootprint().

Referenced by activate().

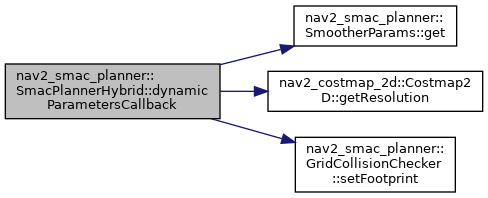

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• nav2_smac_planner/include/nav2_smac_planner/smac_planner_hybrid.hpp
• nav2_smac_planner/src/smac_planner_hybrid.cpp
