Collision Monitor ROS2 node. More...

#include <nav2_collision_monitor/include/nav2_collision_monitor/collision_monitor_node.hpp>

Inheritance diagram for nav2_collision_monitor::CollisionMonitor:

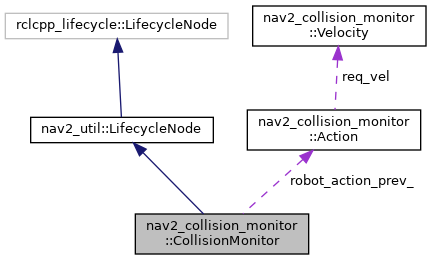

Collaboration diagram for nav2_collision_monitor::CollisionMonitor:

[legend]

Public Member Functions
	CollisionMonitor (const rclcpp::NodeOptions &options=rclcpp::NodeOptions())
	Constructor for the nav2_collision_safery::CollisionMonitor. More...

	~CollisionMonitor ()
	Destructor for the nav2_collision_safery::CollisionMonitor.

Public Member Functions inherited from nav2_util::LifecycleNode
	LifecycleNode (const std::string &node_name, const std::string &ns="", const rclcpp::NodeOptions &options=rclcpp::NodeOptions())
	A lifecycle node constructor. More...

void	add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const std::string &description="", const std::string &additional_constraints="", bool read_only=false)
	Declare a parameter that has no integer or floating point range constraints. More...

void	add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const floating_point_range fp_range, const std::string &description="", const std::string &additional_constraints="", bool read_only=false)
	Declare a parameter that has a floating point range constraint. More...

void	add_parameter (const std::string &name, const rclcpp::ParameterValue &default_value, const integer_range int_range, const std::string &description="", const std::string &additional_constraints="", bool read_only=false)
	Declare a parameter that has an integer range constraint. More...

std::shared_ptr< nav2_util::LifecycleNode >	shared_from_this ()
	Get a shared pointer of this.

nav2_util::CallbackReturn	on_error (const rclcpp_lifecycle::State &)
	Abstracted on_error state transition callback, since unimplemented as of 2020 in the managed ROS2 node state machine. More...

virtual void	on_rcl_preshutdown ()
	Perform preshutdown activities before our Context is shutdown. Note that this is related to our Context's shutdown sequence, not the lifecycle node state machine.

void	createBond ()
	Create bond connection to lifecycle manager.

void	destroyBond ()
	Destroy bond connection to lifecycle manager.

Protected Member Functions
nav2_util::CallbackReturn	on_configure (const rclcpp_lifecycle::State &state) override
	: Initializes and obtains ROS-parameters, creates main subscribers and publishers, creates polygons and data sources objects More...

nav2_util::CallbackReturn	on_activate (const rclcpp_lifecycle::State &state) override
	: Activates LifecyclePublishers, polygons and main processor, creates bond connection More...

nav2_util::CallbackReturn	on_deactivate (const rclcpp_lifecycle::State &state) override
	: Deactivates LifecyclePublishers, polygons and main processor, destroys bond connection More...

nav2_util::CallbackReturn	on_cleanup (const rclcpp_lifecycle::State &state) override
	: Resets all subscribers/publishers, polygons/data sources arrays More...

nav2_util::CallbackReturn	on_shutdown (const rclcpp_lifecycle::State &state) override
	Called in shutdown state. More...

void	cmdVelInCallback (geometry_msgs::msg::Twist::ConstSharedPtr msg)
	Callback for input cmd_vel. More...

void	publishVelocity (const Action &robot_action)
	Publishes output cmd_vel. If robot was stopped more than stop_pub_timeout_ seconds, quit to publish 0-velocity. More...

bool	getParameters (std::string &cmd_vel_in_topic, std::string &cmd_vel_out_topic)
	Supporting routine obtaining all ROS-parameters. More...

bool	configurePolygons (const std::string &base_frame_id, const tf2::Duration &transform_tolerance)
	Supporting routine creating and configuring all polygons. More...

bool	configureSources (const std::string &base_frame_id, const std::string &odom_frame_id, const tf2::Duration &transform_tolerance, const rclcpp::Duration &source_timeout, const bool base_shift_correction)
	Supporting routine creating and configuring all data sources. More...

void	process (const Velocity &cmd_vel_in)
	Main processing routine. More...

bool	processStopSlowdown (const std::shared_ptr< Polygon > polygon, const std::vector< Point > &collision_points, const Velocity &velocity, Action &robot_action) const
	Processes the polygon of STOP and SLOWDOWN action type. More...

bool	processApproach (const std::shared_ptr< Polygon > polygon, const std::vector< Point > &collision_points, const Velocity &velocity, Action &robot_action) const
	Processes APPROACH action type. More...

void	printAction (const Action &robot_action, const std::shared_ptr< Polygon > action_polygon) const
	Prints robot action and polygon caused it (if it was) More...

void	publishPolygons () const
	Polygons publishing routine. Made for visualization.

Protected Member Functions inherited from nav2_util::LifecycleNode
void	printLifecycleNodeNotification ()
	Print notifications for lifecycle node.

void	register_rcl_preshutdown_callback ()

void	runCleanups ()

Protected Attributes
std::shared_ptr< tf2_ros::Buffer >	tf_buffer_
	TF buffer.

std::shared_ptr< tf2_ros::TransformListener >	tf_listener_
	TF listener.

std::vector< std::shared_ptr< Polygon > >	polygons_
	Polygons array.

std::vector< std::shared_ptr< Source > >	sources_
	Data sources array.

rclcpp::Subscription< geometry_msgs::msg::Twist >::SharedPtr	cmd_vel_in_sub_
	@beirf Input cmd_vel subscriber

rclcpp_lifecycle::LifecyclePublisher< geometry_msgs::msg::Twist >::SharedPtr	cmd_vel_out_pub_
	Output cmd_vel publisher.

bool	process_active_
	Whether main routine is active.

Action	robot_action_prev_
	Previous robot action.

rclcpp::Time	stop_stamp_
	Latest timestamp when robot has 0-velocity.

rclcpp::Duration	stop_pub_timeout_
	Timeout after which 0-velocity ceases to be published.

Protected Attributes inherited from nav2_util::LifecycleNode
std::unique_ptr< rclcpp::PreShutdownCallbackHandle >	rcl_preshutdown_cb_handle_ {nullptr}

std::unique_ptr< bond::Bond >	bond_ {nullptr}

Detailed Description

Collision Monitor ROS2 node.

Definition at line 46 of file collision_monitor_node.hpp.

Constructor & Destructor Documentation

◆ CollisionMonitor()

nav2_collision_monitor::CollisionMonitor::CollisionMonitor ( const rclcpp::NodeOptions & options = rclcpp::NodeOptions() )

explicit

Constructor for the nav2_collision_safery::CollisionMonitor.

Parameters

options Additional options to control creation of the node.

Definition at line 30 of file collision_monitor_node.cpp.

Member Function Documentation

◆ cmdVelInCallback()

void nav2_collision_monitor::CollisionMonitor::cmdVelInCallback ( geometry_msgs::msg::Twist::ConstSharedPtr msg )

protected

Callback for input cmd_vel.

Parameters

msg	Input cmd_vel message

Definition at line 149 of file collision_monitor_node.cpp.

◆ configurePolygons()

bool nav2_collision_monitor::CollisionMonitor::configurePolygons	(	const std::string &	base_frame_id,
		const tf2::Duration &	transform_tolerance
	)

protected

Supporting routine creating and configuring all polygons.

Parameters

base_frame_id	Robot base frame ID
transform_tolerance	Transform tolerance

Returns: True if all polygons were configured successfully or false in failure case

Definition at line 238 of file collision_monitor_node.cpp.

◆ configureSources()

bool nav2_collision_monitor::CollisionMonitor::configureSources	(	const std::string &	base_frame_id,
		const std::string &	odom_frame_id,
		const tf2::Duration &	transform_tolerance,
		const rclcpp::Duration &	source_timeout,
		const bool	base_shift_correction
	)

protected

Supporting routine creating and configuring all data sources.

Parameters

base_frame_id	Robot base frame ID
odom_frame_id	Odometry frame ID. Used as global frame to get source->base time inerpolated transform.
transform_tolerance	Transform tolerance
source_timeout	Maximum time interval in which data is considered valid
base_shift_correction	Whether to correct source data towards to base frame movement, considering the difference between current time and latest source time

Returns: True if all sources were configured successfully or false in failure case

Definition at line 283 of file collision_monitor_node.cpp.

◆ getParameters()

bool nav2_collision_monitor::CollisionMonitor::getParameters	(	std::string &	cmd_vel_in_topic,
		std::string &	cmd_vel_out_topic
	)

protected

Supporting routine obtaining all ROS-parameters.

Parameters

cmd_vel_in_topic	Output name of cmd_vel_in topic
cmd_vel_out_topic	Output name of cmd_vel_out topic is required.

Returns: True if all parameters were obtained or false in failure case

Definition at line 183 of file collision_monitor_node.cpp.

◆ on_activate()

nav2_util::CallbackReturn nav2_collision_monitor::CollisionMonitor::on_activate ( const rclcpp_lifecycle::State & state )

overrideprotected

: Activates LifecyclePublishers, polygons and main processor, creates bond connection

Parameters

state Lifecycle Node's state

Returns: Success or Failure

Definition at line 74 of file collision_monitor_node.cpp.

◆ on_cleanup()

nav2_util::CallbackReturn nav2_collision_monitor::CollisionMonitor::on_cleanup ( const rclcpp_lifecycle::State & state )

overrideprotected

: Resets all subscribers/publishers, polygons/data sources arrays

Parameters

state Lifecycle Node's state

Returns: Success or Failure

Definition at line 125 of file collision_monitor_node.cpp.

◆ on_configure()

nav2_util::CallbackReturn nav2_collision_monitor::CollisionMonitor::on_configure ( const rclcpp_lifecycle::State & state )

overrideprotected

: Initializes and obtains ROS-parameters, creates main subscribers and publishers, creates polygons and data sources objects

Parameters

state Lifecycle Node's state

Returns: Success or Failure

Definition at line 44 of file collision_monitor_node.cpp.

◆ on_deactivate()

nav2_util::CallbackReturn nav2_collision_monitor::CollisionMonitor::on_deactivate ( const rclcpp_lifecycle::State & state )

overrideprotected

: Deactivates LifecyclePublishers, polygons and main processor, destroys bond connection

Parameters

state Lifecycle Node's state

Returns: Success or Failure

Definition at line 100 of file collision_monitor_node.cpp.

◆ on_shutdown()

nav2_util::CallbackReturn nav2_collision_monitor::CollisionMonitor::on_shutdown ( const rclcpp_lifecycle::State & state )

overrideprotected

Called in shutdown state.

Parameters

state Lifecycle Node's state

Returns: Success or Failure

Definition at line 142 of file collision_monitor_node.cpp.

◆ printAction()

void nav2_collision_monitor::CollisionMonitor::printAction	(	const Action &	robot_action,
		const std::shared_ptr< Polygon >	action_polygon
	)		const

protected

Prints robot action and polygon caused it (if it was)

Parameters

robot_action	Robot action to print
action_polygon	Pointer to a polygon causing a selected action

Definition at line 460 of file collision_monitor_node.cpp.

◆ process()

void nav2_collision_monitor::CollisionMonitor::process ( const Velocity & cmd_vel_in )

protected

Main processing routine.

Parameters

cmd_vel_in Input desired robot velocity

Definition at line 343 of file collision_monitor_node.cpp.

◆ processApproach()

bool nav2_collision_monitor::CollisionMonitor::processApproach	(	const std::shared_ptr< Polygon >	polygon,
		const std::vector< Point > &	collision_points,
		const Velocity &	velocity,
		Action &	robot_action
	)		const

protected

Processes APPROACH action type.

Parameters

polygon	Polygon to process
collision_points	Array of 2D obstacle points
velocity	Desired robot velocity
robot_action	Output processed robot action

Returns: True if returned action is caused by current polygon, otherwise false

Definition at line 434 of file collision_monitor_node.cpp.

◆ processStopSlowdown()

bool nav2_collision_monitor::CollisionMonitor::processStopSlowdown	(	const std::shared_ptr< Polygon >	polygon,
		const std::vector< Point > &	collision_points,
		const Velocity &	velocity,
		Action &	robot_action
	)		const

protected

Processes the polygon of STOP and SLOWDOWN action type.

Parameters

polygon	Polygon to process
collision_points	Array of 2D obstacle points
velocity	Desired robot velocity
robot_action	Output processed robot action

Returns: True if returned action is caused by current polygon, otherwise false

Definition at line 405 of file collision_monitor_node.cpp.

◆ publishVelocity()

void nav2_collision_monitor::CollisionMonitor::publishVelocity ( const Action & robot_action )

protected

Publishes output cmd_vel. If robot was stopped more than stop_pub_timeout_ seconds, quit to publish 0-velocity.

Parameters

robot_action Robot action to publish

Definition at line 160 of file collision_monitor_node.cpp.

The documentation for this class was generated from the following files:

nav2_collision_monitor/include/nav2_collision_monitor/collision_monitor_node.hpp
nav2_collision_monitor/src/collision_monitor_node.cpp
