Implementation for polygon source. More...

#include <nav2_collision_monitor/include/nav2_collision_monitor/polygon_source.hpp>

Inheritance diagram for nav2_collision_monitor::PolygonSource:

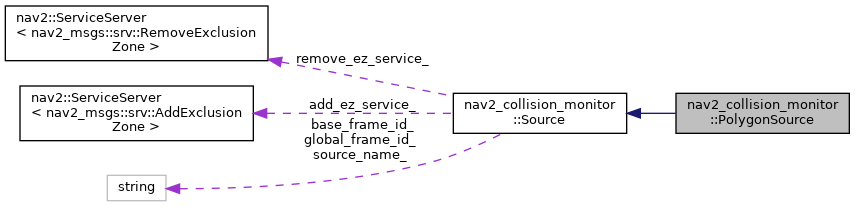

Collaboration diagram for nav2_collision_monitor::PolygonSource:

[legend]

Public Member Functions
	PolygonSource (const nav2::LifecycleNode::WeakPtr &node, const std::string &source_name, const nav2::TransformBuffer::SharedPtr tf_buffer, const std::string &base_frame_id, const std::string &global_frame_id, const tf2::Duration &transform_tolerance, const rclcpp::Duration &source_timeout, const bool base_shift_correction)
	PolygonSource constructor. More...

	~PolygonSource ()
	PolygonSource destructor.

bool	configure ()
	Data source configuration routine. Obtains ROS-parameters and creates subscriber. More...

bool	getSourceData (const rclcpp::Time &curr_time, std::vector< Point > &data) override
	Adds latest data from polygon source to the data array. More...

void	convertPolygonStampedToPoints (const geometry_msgs::msg::PolygonStamped &polygon, std::vector< Point > &data) const
	Converts a PolygonInstanceStamped to a std::vector<Point> More...

Public Member Functions inherited from nav2_collision_monitor::Source
	Source (const nav2::LifecycleNode::WeakPtr &node, const std::string &source_name, const nav2::TransformBuffer::SharedPtr tf_buffer, const std::string &base_frame_id, const std::string &global_frame_id, const tf2::Duration &transform_tolerance, const rclcpp::Duration &source_timeout, const bool base_shift_correction)
	Source constructor. More...

virtual	~Source ()
	Source destructor.

bool	getData (const rclcpp::Time &curr_time, std::vector< Point > &data)
	Adds latest data from source to the data array, then removes any points falling inside an enabled exclusion zone. More...

void	activate ()
	Activates the exclusion zone visualization publishers (if any)

void	deactivate ()
	Deactivates the exclusion zone visualization publishers (if any)

void	publishExclusionZones () const
	Publishes the source's exclusion zones for visualization.

bool	getEnabled () const
	Obtains source enabled state. More...

std::string	getSourceName () const
	Obtains the name of the data source. More...

rclcpp::Duration	getSourceTimeout () const
	Obtains the source_timeout parameter of the data source. More...

Protected Member Functions
void	getParameters (std::string &source_topic)
	Getting sensor-specific ROS-parameters. More...

void	dataCallback (geometry_msgs::msg::PolygonInstanceStamped::ConstSharedPtr msg)
	PolygonSource data callback. More...

Protected Member Functions inherited from nav2_collision_monitor::Source
bool	configure ()
	Source configuration routine. More...

void	getCommonParameters (std::string &source_topic)
	Supporting routine obtaining ROS-parameters common for all data sources. More...

bool	sourceValid (const rclcpp::Time &source_time, const rclcpp::Time &curr_time) const
	Checks whether the source data might be considered as valid. More...

void	addExclusionZoneCallback (const std::shared_ptr< rmw_request_id_t > request_header, const std::shared_ptr< nav2_msgs::srv::AddExclusionZone::Request > request, std::shared_ptr< nav2_msgs::srv::AddExclusionZone::Response > response)
	Service callback to add an exclusion zone at runtime.

void	removeExclusionZoneCallback (const std::shared_ptr< rmw_request_id_t > request_header, const std::shared_ptr< nav2_msgs::srv::RemoveExclusionZone::Request > request, std::shared_ptr< nav2_msgs::srv::RemoveExclusionZone::Response > response)
	Service callback to remove an exclusion zone at runtime.

rcl_interfaces::msg::SetParametersResult	validateParameterUpdatesCallback (const std::vector< rclcpp::Parameter > &parameters)
	Validate incoming parameter updates before applying them. This callback is triggered when one or more parameters are about to be updated. It checks the validity of parameter values and rejects updates that would lead to invalid or inconsistent configurations. More...

void	updateParametersCallback (const std::vector< rclcpp::Parameter > &parameters)
	Apply parameter updates after validation This callback is executed when parameters have been successfully updated. It updates the internal configuration of the node with the new parameter values. More...

bool	getTransform (const rclcpp::Time &curr_time, const std_msgs::msg::Header &data_header, tf2::Transform &tf_transform) const
	Obtain the transform to get data from source frame and time where it was received to the base frame and current time (if base_shift_correction_ is true) or the transform without time shift considered which is less accurate but much more faster option not dependent on state estimation frames. More...

Protected Attributes
nav2::Subscription< geometry_msgs::msg::PolygonInstanceStamped >::SharedPtr	data_sub_
	PolygonSource data subscriber.

std::vector< geometry_msgs::msg::PolygonInstanceStamped >	data_
	Latest data obtained.

double	sampling_distance_
	distance between sampled points on polygon edges

Protected Attributes inherited from nav2_collision_monitor::Source
nav2::LifecycleNode::WeakPtr	node_
	Collision Monitor node.

rclcpp::Logger	logger_ {rclcpp::get_logger("collision_monitor")}
	Collision monitor node logger stored for further usage.

std::mutex	mutex_
	Dynamic parameters handler.

rclcpp::node_interfaces::PostSetParametersCallbackHandle::SharedPtr	post_set_params_handler_

rclcpp::node_interfaces::OnSetParametersCallbackHandle::SharedPtr	on_set_params_handler_

std::string	source_name_
	Name of data source.

nav2::TransformBuffer::SharedPtr	tf_buffer_
	TF buffer.

std::string	base_frame_id_
	Robot base frame ID.

std::string	global_frame_id_
	Global frame ID for correct transform calculation.

tf2::Duration	transform_tolerance_
	Transform tolerance.

rclcpp::Duration	source_timeout_
	Maximum time interval in which data is considered valid.

bool	base_shift_correction_
	Whether to correct source data towards to base frame movement, considering the difference between current time and latest source time.

bool	enabled_
	Whether source is enabled.

std::vector< std::shared_ptr< ExclusionZone > >	exclusion_zones_
	Exclusion zones masking out points from this source.

nav2::ServiceServer< nav2_msgs::srv::AddExclusionZone >::SharedPtr	add_ez_service_
	Service to add an exclusion zone at runtime.

nav2::ServiceServer< nav2_msgs::srv::RemoveExclusionZone >::SharedPtr	remove_ez_service_
	Service to remove an exclusion zone at runtime.

Detailed Description

Implementation for polygon source.

Definition at line 34 of file polygon_source.hpp.

Constructor & Destructor Documentation

◆ PolygonSource()

nav2_collision_monitor::PolygonSource::PolygonSource	(	const nav2::LifecycleNode::WeakPtr &	node,
		const std::string &	source_name,
		const nav2::TransformBuffer::SharedPtr	tf_buffer,
		const std::string &	base_frame_id,
		const std::string &	global_frame_id,
		const tf2::Duration &	transform_tolerance,
		const rclcpp::Duration &	source_timeout,
		const bool	base_shift_correction
	)

PolygonSource constructor.

Parameters

node	Collision Monitor node pointer
source_name	Name of data source
tf_buffer	Shared pointer to a TF buffer
base_frame_id	Robot base frame ID. The output data will be transformed into this frame.
global_frame_id	Global frame ID for correct transform calculation
transform_tolerance	Transform tolerance
source_timeout	Maximum time interval in which data is considered valid
base_shift_correction	Whether to correct source data towards to base frame movement, considering the difference between current time and latest source time

Definition at line 31 of file polygon_source.cpp.

Member Function Documentation

◆ configure()

bool nav2_collision_monitor::PolygonSource::configure ( )

Data source configuration routine. Obtains ROS-parameters and creates subscriber.

Returns: True in case of everything is configured correctly, or false otherwise

Definition at line 51 of file polygon_source.cpp.

References nav2_collision_monitor::Source::configure(), data_sub_, dataCallback(), getParameters(), and nav2_collision_monitor::Source::node_.

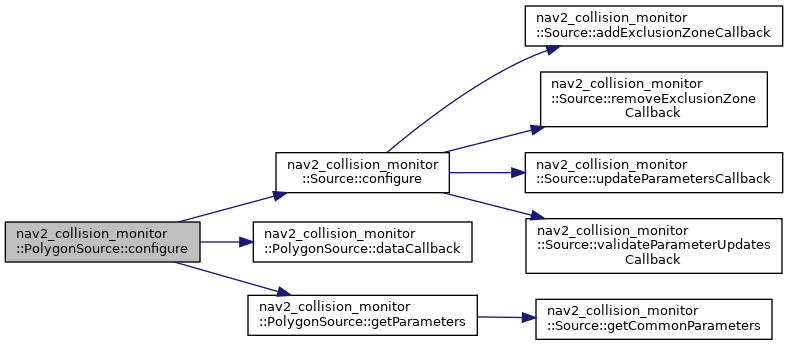

Here is the call graph for this function:

◆ convertPolygonStampedToPoints()

void nav2_collision_monitor::PolygonSource::convertPolygonStampedToPoints	(	const geometry_msgs::msg::PolygonStamped &	polygon,
		std::vector< Point > &	data
	)		const

Converts a PolygonInstanceStamped to a std::vector<Point>

Parameters

polygon	Input Polygon to be converted
data	Output vector of Point

Definition at line 126 of file polygon_source.cpp.

References sampling_distance_, and nav2_collision_monitor::Source::source_name_.

Referenced by getSourceData().

Here is the caller graph for this function:

◆ dataCallback()

void nav2_collision_monitor::PolygonSource::dataCallback ( geometry_msgs::msg::PolygonInstanceStamped::ConstSharedPtr msg )

protected

PolygonSource data callback.

Parameters

msg	Shared pointer to PolygonSource message

Definition at line 173 of file polygon_source.cpp.

References data_, and nav2_collision_monitor::Source::node_.

Referenced by configure().

Here is the caller graph for this function:

◆ getParameters()

void nav2_collision_monitor::PolygonSource::getParameters ( std::string & source_topic )

protected

Getting sensor-specific ROS-parameters.

Parameters

source_topic Output name of source subscription topic

Definition at line 160 of file polygon_source.cpp.

References nav2_collision_monitor::Source::getCommonParameters(), nav2_collision_monitor::Source::node_, sampling_distance_, and nav2_collision_monitor::Source::source_name_.

Referenced by configure().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSourceData()

bool nav2_collision_monitor::PolygonSource::getSourceData	(	const rclcpp::Time &	curr_time,
		std::vector< Point > &	data
	)

overridevirtual

Adds latest data from polygon source to the data array.

Parameters

curr_time	Current node time for data interpolation
data	Array where the data from source to be added. Added data is transformed to base_frame_id_ coordinate system at curr_time.
