Implements service interface to transition the lifecycle nodes of Nav2 stack. It receives transition request and then uses lifecycle interface to change lifecycle node's state. More...

#include <nav2_lifecycle_manager/include/nav2_lifecycle_manager/lifecycle_manager.hpp>

Inheritance diagram for nav2_lifecycle_manager::LifecycleManager:

[legend]

Collaboration diagram for nav2_lifecycle_manager::LifecycleManager:

[legend]

Public Member Functions
	LifecycleManager (const rclcpp::NodeOptions &options=rclcpp::NodeOptions())
	A constructor for nav2_lifecycle_manager::LifecycleManager. More...

	~LifecycleManager ()
	A destructor for nav2_lifecycle_manager::LifecycleManager.

Protected Member Functions
void	managerCallback (const std::shared_ptr< rmw_request_id_t > request_header, const std::shared_ptr< ManageLifecycleNodes::Request > request, std::shared_ptr< ManageLifecycleNodes::Response > response)
	Lifecycle node manager callback function. More...

void	isActiveCallback (const std::shared_ptr< rmw_request_id_t > request_header, const std::shared_ptr< std_srvs::srv::Trigger::Request > request, std::shared_ptr< std_srvs::srv::Trigger::Response > response)
	Trigger callback function checks if the managed nodes are in active state. More...

bool	startup ()
	Start up managed nodes. More...

bool	shutdown ()
	Deactivate, clean up and shut down all the managed nodes. More...

bool	reset (bool hard_reset=false)
	Reset all the managed nodes. More...

bool	pause ()
	Pause all the managed nodes. More...

bool	resume ()
	Resume all the managed nodes. More...

void	onRclPreshutdown ()
	Perform preshutdown activities before our Context is shutdown. Note that this is related to our Context's shutdown sequence, not the lifecycle node state machine or shutdown().

void	createLifecycleServiceClients ()
	Support function for creating service clients.

void	shutdownAllNodes ()
	Support function for shutdown.

void	destroyLifecycleServiceClients ()
	Destroy all the lifecycle service clients.

void	createBondTimer ()
	Support function for creating bond timer.

bool	createBondConnection (const std::string &node_name)
	Support function for creating bond connections.

void	destroyBondTimer ()
	Support function for killing bond connections.

void	checkBondConnections ()

void	checkBondRespawnConnection ()

bool	changeStateForNode (const std::string &node_name, std::uint8_t transition)
	For a node, transition to the new target state.

bool	changeStateForAllNodes (std::uint8_t transition, bool hard_change=false)
	For each node in the map, transition to the new target state.

void	message (const std::string &msg)
	Helper function to highlight the output on the console.

void	CreateActiveDiagnostic (diagnostic_updater::DiagnosticStatusWrapper &stat)
	function to check if the Nav2 system is active

void	registerRclPreshutdownCallback ()

Protected Attributes
rclcpp::CallbackGroup::SharedPtr	callback_group_

std::unique_ptr< nav2_util::NodeThread >	service_thread_

rclcpp::Service< ManageLifecycleNodes >::SharedPtr	manager_srv_

rclcpp::Service< std_srvs::srv::Trigger >::SharedPtr	is_active_srv_

rclcpp::TimerBase::SharedPtr	init_timer_

rclcpp::TimerBase::SharedPtr	bond_timer_

rclcpp::TimerBase::SharedPtr	bond_respawn_timer_

std::chrono::milliseconds	bond_timeout_

std::map< std::string, std::shared_ptr< bond::Bond > >	bond_map_

std::map< std::string, std::shared_ptr< nav2_util::LifecycleServiceClient > >	node_map_

std::map< std::uint8_t, std::string >	transition_label_map_

std::unordered_map< std::uint8_t, std::uint8_t >	transition_state_map_

std::vector< std::string >	node_names_

bool	autostart_

bool	attempt_respawn_reconnection_

bool	system_active_ {false}

diagnostic_updater::Updater	diagnostics_updater_

rclcpp::Time	bond_respawn_start_time_ {0}

rclcpp::Duration	bond_respawn_max_duration_ {10s}

Detailed Description

Implements service interface to transition the lifecycle nodes of Nav2 stack. It receives transition request and then uses lifecycle interface to change lifecycle node's state.

Definition at line 47 of file lifecycle_manager.hpp.

Constructor & Destructor Documentation

◆ LifecycleManager()

nav2_lifecycle_manager::LifecycleManager::LifecycleManager ( const rclcpp::NodeOptions & options = rclcpp::NodeOptions() )

explicit

A constructor for nav2_lifecycle_manager::LifecycleManager.

Parameters

options Additional options to control creation of the node.

Definition at line 35 of file lifecycle_manager.cpp.

References CreateActiveDiagnostic(), createLifecycleServiceClients(), isActiveCallback(), managerCallback(), registerRclPreshutdownCallback(), and startup().

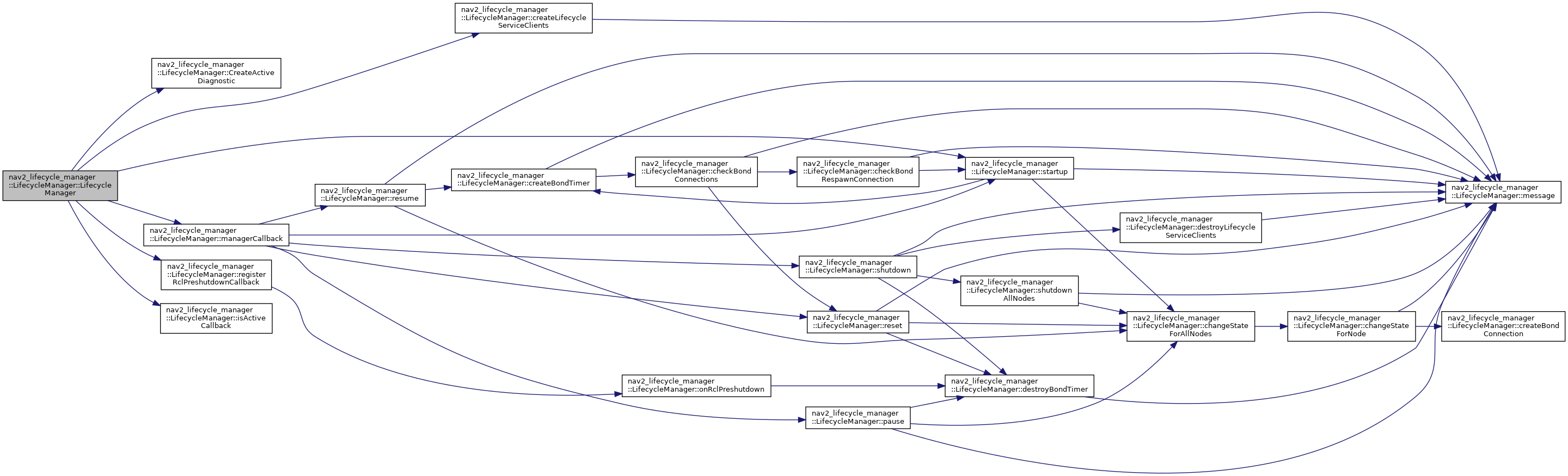

Here is the call graph for this function:

Member Function Documentation

◆ checkBondConnections()

void nav2_lifecycle_manager::LifecycleManager::checkBondConnections ( )

protected

@ brief Support function for checking on bond connections will take down system if there's something non-responsive

Definition at line 413 of file lifecycle_manager.cpp.

References checkBondRespawnConnection(), message(), and reset().

Referenced by createBondTimer().

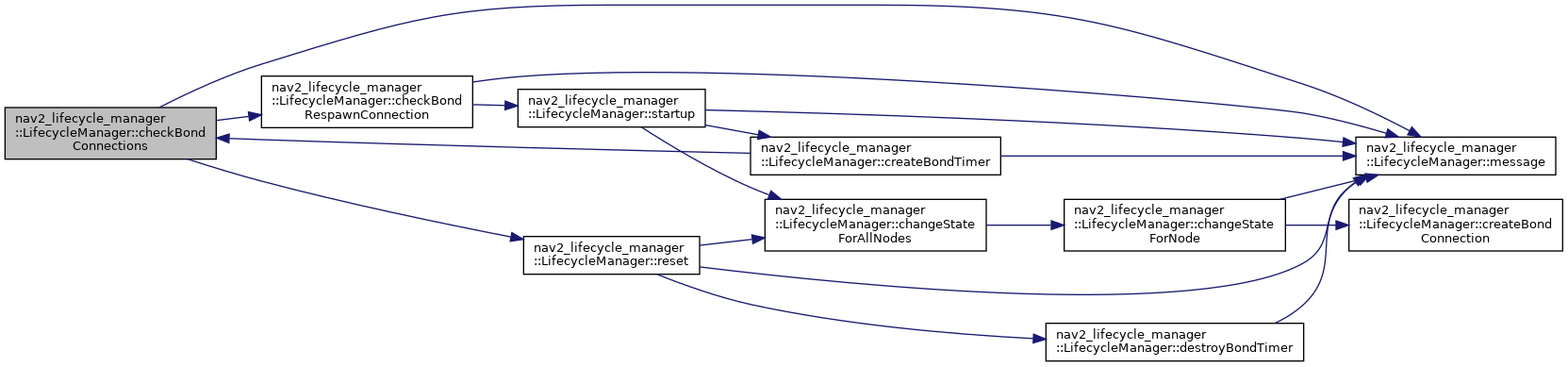

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkBondRespawnConnection()

void nav2_lifecycle_manager::LifecycleManager::checkBondRespawnConnection ( )

protected

@ brief Support function for checking on bond connections will bring back the system if something goes from non-responsive to responsive

Definition at line 453 of file lifecycle_manager.cpp.

References message(), and startup().

Referenced by checkBondConnections().

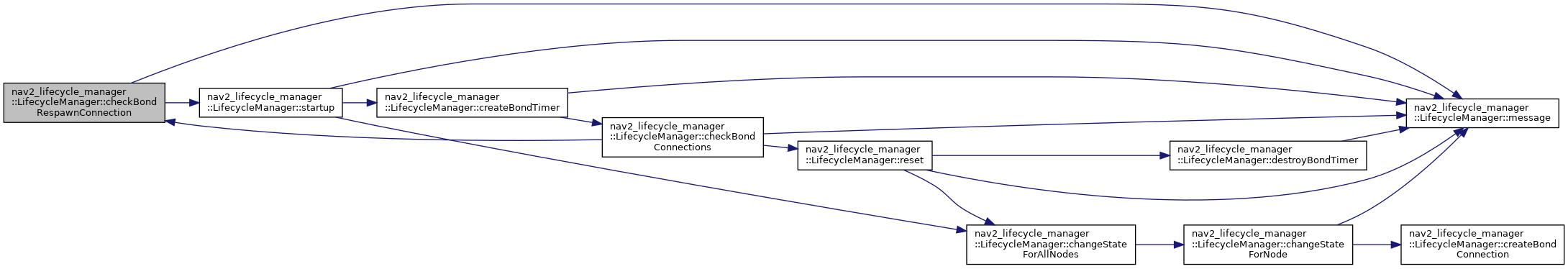

Here is the call graph for this function:

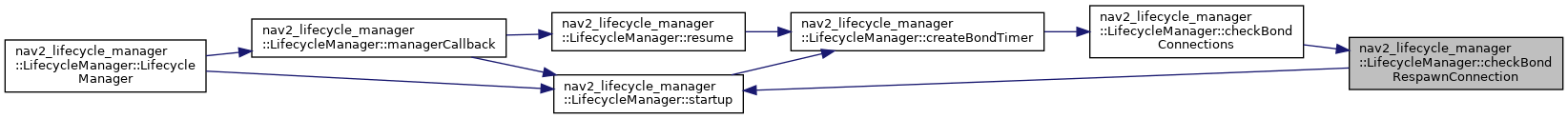

Here is the caller graph for this function:

◆ isActiveCallback()

void nav2_lifecycle_manager::LifecycleManager::isActiveCallback	(	const std::shared_ptr< rmw_request_id_t >	request_header,
		const std::shared_ptr< std_srvs::srv::Trigger::Request >	request,
		std::shared_ptr< std_srvs::srv::Trigger::Response >	response
	)

protected

Trigger callback function checks if the managed nodes are in active state.

Parameters

request_header	Header of the request
request	Service request
reponse	Service response

Definition at line 144 of file lifecycle_manager.cpp.

Referenced by LifecycleManager().

Here is the caller graph for this function:

◆ managerCallback()

void nav2_lifecycle_manager::LifecycleManager::managerCallback	(	const std::shared_ptr< rmw_request_id_t >	request_header,
		const std::shared_ptr< ManageLifecycleNodes::Request >	request,
		std::shared_ptr< ManageLifecycleNodes::Response >	response
	)

protected

Lifecycle node manager callback function.

Parameters

request_header	Header of the service request
request	Service request
reponse	Service response

Definition at line 119 of file lifecycle_manager.cpp.

References pause(), reset(), resume(), shutdown(), and startup().

Referenced by LifecycleManager().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pause()

bool nav2_lifecycle_manager::LifecycleManager::pause ( )

protected

Pause all the managed nodes.

Returns: true or false

Definition at line 329 of file lifecycle_manager.cpp.

References changeStateForAllNodes(), destroyBondTimer(), and message().

Referenced by managerCallback().

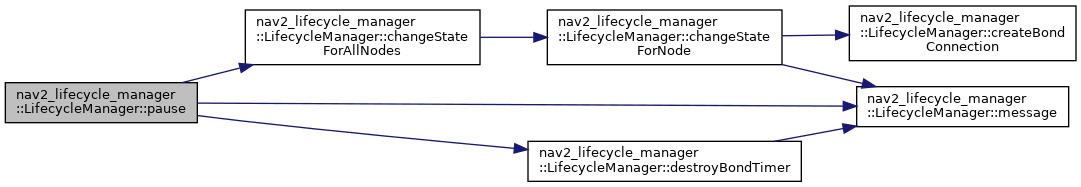

Here is the call graph for this function:

Here is the caller graph for this function:

◆ registerRclPreshutdownCallback()

void nav2_lifecycle_manager::LifecycleManager::registerRclPreshutdownCallback ( )

protected

Register our preshutdown callback for this Node's rcl Context. The callback fires before this Node's Context is shutdown. Note this is not directly related to the lifecycle state machine or the shutdown() instance function.

Definition at line 403 of file lifecycle_manager.cpp.

References onRclPreshutdown().

Referenced by LifecycleManager().

Here is the call graph for this function:
