Inheritance diagram for rclcpp::executors::EventsCBGExecutor:

Collaboration diagram for rclcpp::executors::EventsCBGExecutor:

[legend]

Classes
struct	CallbackGroupData

Public Member Functions
RCLCPP_PUBLIC	EventsCBGExecutor (const rclcpp::ExecutorOptions &options=rclcpp::ExecutorOptions(), size_t number_of_threads=0, std::chrono::nanoseconds timeout=std::chrono::nanoseconds(-1))

RCLCPP_PUBLIC void	add_callback_group (const rclcpp::CallbackGroup::SharedPtr &group_ptr, const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node_ptr, bool notify=true) override
	Add a callback group to an executor. More...

RCLCPP_PUBLIC std::vector< rclcpp::CallbackGroup::WeakPtr >	get_all_callback_groups () override
	Get callback groups that belong to executor. More...

RCLCPP_PUBLIC std::vector< rclcpp::CallbackGroup::WeakPtr >	get_manually_added_callback_groups () override
	Get callback groups that belong to executor. More...

RCLCPP_PUBLIC std::vector< rclcpp::CallbackGroup::WeakPtr >	get_automatically_added_callback_groups_from_nodes () override
	Get callback groups that belong to executor. More...

RCLCPP_PUBLIC void	remove_callback_group (const rclcpp::CallbackGroup::SharedPtr &group_ptr, bool notify=true) override
	Remove a callback group from the executor. More...

RCLCPP_PUBLIC void	add_node (const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node_ptr, bool notify=true) override
	Add a node to the executor. More...

RCLCPP_PUBLIC void	add_node (const std::shared_ptr< rclcpp::Node > &node_ptr, bool notify=true) override
	Convenience function which takes Node and forwards NodeBaseInterface. More...

RCLCPP_PUBLIC void	remove_node (const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node_ptr, bool notify=true) override
	Remove a node from the executor. More...

RCLCPP_PUBLIC void	remove_node (const std::shared_ptr< rclcpp::Node > &node_ptr, bool notify=true) override
	Convenience function which takes Node and forwards NodeBaseInterface. More...

void	add_callback_group_only (const rclcpp::CallbackGroup::SharedPtr &group_ptr)

RCLCPP_PUBLIC void	spin () override

RCLCPP_PUBLIC void	spin (const std::function< void(const std::exception &)> &exception_handler)

RCLCPP_PUBLIC void	spin_once (std::chrono::nanoseconds timeout=std::chrono::nanoseconds(-1)) override
	Collect work once and execute the next available work, optionally within a duration. More...

RCLCPP_PUBLIC void	spin_some (std::chrono::nanoseconds max_duration=std::chrono::nanoseconds(0)) override
	Collect work once and execute all available work, optionally within a max duration. More...

RCLCPP_PUBLIC bool	collect_and_execute_ready_events (std::chrono::nanoseconds max_duration, bool recollect_if_no_work_available)

RCLCPP_PUBLIC void	spin_all (std::chrono::nanoseconds max_duration) override
	Collect and execute work repeatedly within a duration or until no more work is available. More...

RCLCPP_PUBLIC void	cancel () override
	Cancel any running spin* function, causing it to return. More...

RCLCPP_PUBLIC size_t	get_number_of_threads () const

bool	is_spinning ()

template<typename FutureT , typename TimeRepT = int64_t, typename TimeT = std::milli>
FutureReturnCode	spin_until_future_complete (const FutureT &future, std::chrono::duration< TimeRepT, TimeT > timeout=std::chrono::duration< TimeRepT, TimeT >(-1))

Public Member Functions inherited from rclcpp::Executor
RCLCPP_PUBLIC	Executor (const rclcpp::ExecutorOptions &options=rclcpp::ExecutorOptions())
	Default constructor. More...

virtual RCLCPP_PUBLIC	~Executor ()
	Default destructor.

template<typename RepT = int64_t, typename T = std::milli>
void	spin_node_once (const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node, std::chrono::duration< RepT, T > timeout=std::chrono::duration< RepT, T >(-1))
	Add a node to executor, execute the next available unit of work, and remove the node. More...

template<typename NodeT = rclcpp::Node, typename RepT = int64_t, typename T = std::milli>
void	spin_node_once (const std::shared_ptr< NodeT > &node, std::chrono::duration< RepT, T > timeout=std::chrono::duration< RepT, T >(-1))
	Convenience function which takes Node and forwards NodeBaseInterface.

virtual RCLCPP_PUBLIC void	spin_node_some (const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node)
	Add a node, complete all immediately available work, and remove the node. More...

virtual RCLCPP_PUBLIC void	spin_node_some (const std::shared_ptr< rclcpp::Node > &node)
	Convenience function which takes Node and forwards NodeBaseInterface.

virtual RCLCPP_PUBLIC void	spin_node_all (const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node, std::chrono::nanoseconds max_duration)
	Add a node, complete all immediately available work exhaustively, and remove the node. More...

virtual RCLCPP_PUBLIC void	spin_node_all (const std::shared_ptr< rclcpp::Node > &node, std::chrono::nanoseconds max_duration)
	Convenience function which takes Node and forwards NodeBaseInterface.

template<typename FutureT , typename TimeRepT = int64_t, typename TimeT = std::milli>
FutureReturnCode	spin_until_future_complete (const FutureT &future, std::chrono::duration< TimeRepT, TimeT > timeout=std::chrono::duration< TimeRepT, TimeT >(-1))
	Spin (blocking) until the future is complete, it times out waiting, or rclcpp is interrupted. More...

RCLCPP_PUBLIC bool	is_spinning ()
	Returns true if the executor is currently spinning. More...

Protected Member Functions
RCLCPP_PUBLIC void	run (size_t this_thread_number, bool block_initially)

RCLCPP_PUBLIC void	run (size_t this_thread_number, const std::function< void(const std::exception &)> &exception_handler)

void	shutdown ()

void	set_callbacks (CallbackGroupData &cgd)

bool	execute_previous_ready_executables_until (const std::chrono::time_point< std::chrono::steady_clock > &stop_time)

void	unregister_event_callbacks (const rclcpp::CallbackGroup::SharedPtr &cbg) const

Protected Member Functions inherited from rclcpp::Executor
	Executor (const std::shared_ptr< rclcpp::Context > &context)
	Constructor that will not initialize any non-trivial members. More...

RCLCPP_PUBLIC void	spin_node_once_nanoseconds (const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &node, std::chrono::nanoseconds timeout)
	Add a node to executor, execute the next available unit of work, and remove the node. More...

virtual RCLCPP_PUBLIC FutureReturnCode	spin_until_future_complete_impl (std::chrono::nanoseconds timeout, const std::function< std::future_status(std::chrono::nanoseconds wait_time)> &wait_for_future)
	Spin (blocking) until the future is complete, it times out waiting, or rclcpp is interrupted. More...

RCLCPP_PUBLIC void	spin_some_impl (std::chrono::nanoseconds max_duration, bool exhaustive)
	Collect work and execute available work, optionally within a duration. More...

RCLCPP_PUBLIC void	execute_any_executable (AnyExecutable &any_exec)
	Find the next available executable and do the work associated with it. More...

RCLCPP_PUBLIC void	collect_entities ()
	Gather all of the waitable entities from associated nodes and callback groups.

RCLCPP_PUBLIC void	wait_for_work (std::chrono::nanoseconds timeout=std::chrono::nanoseconds(-1))
	Block until more work becomes avilable or timeout is reached. More...

RCLCPP_PUBLIC bool	get_next_ready_executable (AnyExecutable &any_executable)
	Check for executable in ready state and populate union structure. More...

RCLCPP_PUBLIC bool	get_next_executable (AnyExecutable &any_executable, std::chrono::nanoseconds timeout=std::chrono::nanoseconds(-1))
	Wait for executable in ready state and populate union structure. More...

virtual RCLCPP_PUBLIC void	handle_updated_entities (bool notify)
	This function triggers a recollect of all entities that are registered to the executor. More...

virtual RCLCPP_PUBLIC void	spin_once_impl (std::chrono::nanoseconds timeout)

rclcpp::WaitSet wait_set_	RCPPUTILS_TSA_GUARDED_BY (mutex_)
	WaitSet to be waited on.

std::optional< rclcpp::WaitResult< rclcpp::WaitSet > > wait_result_	RCPPUTILS_TSA_GUARDED_BY (mutex_)

rclcpp::executors::ExecutorEntitiesCollection current_collection_	RCPPUTILS_TSA_GUARDED_BY (mutex_)
	Hold the current state of the collection being waited on by the waitset.

std::shared_ptr< rclcpp::executors::ExecutorNotifyWaitable > current_notify_waitable_	RCPPUTILS_TSA_GUARDED_BY (mutex_)
	Hold the current state of the notify waitable being waited on by the waitset.

Protected Attributes
std::unique_ptr< cbg_executor::CBGScheduler >	scheduler

Protected Attributes inherited from rclcpp::Executor
std::atomic_bool	spinning
	Spinning state, used to prevent multi threaded calls to spin and to cancel blocking spins.

std::shared_ptr< rclcpp::GuardCondition >	interrupt_guard_condition_
	Guard condition for signaling the rmw layer to wake up for special events.

std::shared_ptr< rclcpp::GuardCondition >	shutdown_guard_condition_
	Guard condition for signaling the rmw layer to wake up for system shutdown.

std::mutex	mutex_

std::shared_ptr< rclcpp::Context >	context_
	The context associated with this executor.

std::shared_ptr< rclcpp::executors::ExecutorNotifyWaitable >	notify_waitable_
	Waitable containing guard conditions controlling the executor flow. More...

std::atomic_bool	entities_need_rebuild_

rclcpp::executors::ExecutorEntitiesCollector	collector_
	Collector used to associate executable entities from nodes and guard conditions.

rclcpp::OnShutdownCallbackHandle	shutdown_callback_handle_
	shutdown callback handle registered to Context

std::unique_ptr< ExecutorImplementation >	impl_
	Pointer to implementation.

Additional Inherited Members
Static Protected Member Functions inherited from rclcpp::Executor
static RCLCPP_PUBLIC void	execute_subscription (const rclcpp::SubscriptionBase::SharedPtr &subscription)
	Run subscription executable. More...

static RCLCPP_PUBLIC void	execute_timer (const rclcpp::TimerBase::SharedPtr &timer, const std::shared_ptr< void > &data_ptr)
	Run timer executable. More...

static RCLCPP_PUBLIC void	execute_service (const rclcpp::ServiceBase::SharedPtr &service)
	Run service server executable. More...

static RCLCPP_PUBLIC void	execute_client (const rclcpp::ClientBase::SharedPtr &client)
	Run service client executable. More...

Detailed Description

Definition at line 40 of file events_cbg_executor.hpp.

Constructor & Destructor Documentation

◆ EventsCBGExecutor()

rclcpp::executors::EventsCBGExecutor::EventsCBGExecutor	(	const rclcpp::ExecutorOptions &	options = `rclcpp::ExecutorOptions()`,
		size_t	number_of_threads = `0`,
		std::chrono::nanoseconds	timeout = `std::chrono::nanoseconds(-1)`
	)

explicit

For the yield_before_execute option, when true std::this_thread::yield() will be called after acquiring work (as an AnyExecutable) and releasing the spinning lock, but before executing the work. This is useful for reproducing some bugs related to taking work more than once.

Parameters

options	common options for all executors
number_of_threads	number of threads to have in the thread pool, the default 0 will use the number of cpu cores found (minimum of 2)
timeout	maximum time to wait

Definition at line 79 of file events_cbg_executor.cpp.

Member Function Documentation

◆ add_callback_group()

void rclcpp::executors::EventsCBGExecutor::add_callback_group	(	const rclcpp::CallbackGroup::SharedPtr &	group_ptr,
		const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &	node_ptr,
		bool	notify = `true`
	)

overridevirtual

Add a callback group to an executor.

An executor can have zero or more callback groups which provide work during spin functions. When an executor attempts to add a callback group, the executor checks to see if it is already associated with another executor, and if it has been, then an exception is thrown. Otherwise, the callback group is added to the executor.

Adding a callback group with this method does not associate its node with this executor in any way

Parameters

[in]	group_ptr	a shared ptr that points to a callback group
[in]	node_ptr	a shared pointer that points to a node base interface
[in]	notify	True to trigger the interrupt guard condition during this function. If the executor is blocked at the rmw layer while waiting for work and it is notified that a new callback group was added, it will wake up.

Exceptions

std::runtime_error if the callback group is associated to an executor

Reimplemented from rclcpp::Executor.

Definition at line 534 of file events_cbg_executor.cpp.

◆ add_node() [1/2]

void rclcpp::executors::EventsCBGExecutor::add_node	(	const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &	node_ptr,
		bool	notify = `true`
	)

overridevirtual

Add a node to the executor.

Nodes have associated callback groups, and this method adds any of those callback groups to this executor which have their automatically_add_to_executor_with_node parameter true. The node is also associated with the executor so that future callback groups which are created on the node with the automatically_add_to_executor_with_node parameter set to true are also automatically associated with this executor.

Callback groups with the automatically_add_to_executor_with_node parameter set to false must be manually added to an executor using the rclcpp::Executor::add_callback_group method.

If a node is already associated with an executor, this method throws an exception.

Parameters

[in]	node_ptr	Shared pointer to the node to be added.
[in]	notify	True to trigger the interrupt guard condition during this function. If the executor is blocked at the rmw layer while waiting for work and it is notified that a new node was added, it will wake up.

Exceptions

std::runtime_error if a node is already associated to an executor

Reimplemented from rclcpp::Executor.

Definition at line 716 of file events_cbg_executor.cpp.

◆ add_node() [2/2]

void rclcpp::executors::EventsCBGExecutor::add_node	(	const std::shared_ptr< rclcpp::Node > &	node_ptr,
		bool	notify = `true`
	)

overridevirtual

Convenience function which takes Node and forwards NodeBaseInterface.

See also: rclcpp::Executor::add_node

Reimplemented from rclcpp::Executor.

Definition at line 737 of file events_cbg_executor.cpp.

◆ cancel()

void rclcpp::executors::EventsCBGExecutor::cancel ( )

overridevirtual

Cancel any running spin* function, causing it to return.

This function can be called asynchonously from any thread.

Exceptions

std::runtime_error if there is an issue triggering the guard condition

Reimplemented from rclcpp::Executor.

Definition at line 563 of file events_cbg_executor.cpp.

◆ collect_and_execute_ready_events()

bool rclcpp::executors::EventsCBGExecutor::collect_and_execute_ready_events	(	std::chrono::nanoseconds	max_duration,
		bool	recollect_if_no_work_available
	)

Returns: true if work was available and executed

Definition at line 454 of file events_cbg_executor.cpp.

References execute_previous_ready_executables_until(), and rclcpp::ok().

Referenced by spin_all(), and spin_some().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ execute_previous_ready_executables_until()

bool rclcpp::executors::EventsCBGExecutor::execute_previous_ready_executables_until ( const std::chrono::time_point< std::chrono::steady_clock > & stop_time )

protected

This function will execute all available executables, that were ready, before this function was called.

Definition at line 191 of file events_cbg_executor.cpp.

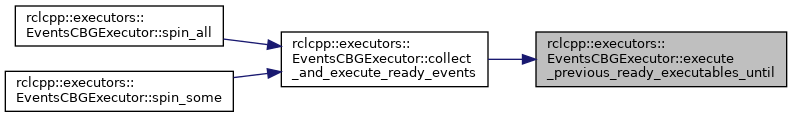

Referenced by collect_and_execute_ready_events().

Here is the caller graph for this function:

◆ get_all_callback_groups()

std::vector< rclcpp::CallbackGroup::WeakPtr > rclcpp::executors::EventsCBGExecutor::get_all_callback_groups ( )

overridevirtual

Get callback groups that belong to executor.

This function returns a vector of weak pointers that point to callback groups that were associated with the executor. The callback groups associated with this executor may have been added with add_callback_group, or added when a node was added to the executor with add_node, or automatically added when it created by a node already associated with this executor and the automatically_add_to_executor_with_node parameter was true.

Returns: a vector of weak pointers that point to callback groups that are associated with the executor

Reimplemented from rclcpp::Executor.

Definition at line 582 of file events_cbg_executor.cpp.

◆ get_automatically_added_callback_groups_from_nodes()

std::vector< rclcpp::CallbackGroup::WeakPtr > rclcpp::executors::EventsCBGExecutor::get_automatically_added_callback_groups_from_nodes ( )

overridevirtual

Get callback groups that belong to executor.

This function returns a vector of weak pointers that point to callback groups that were added from a node that is associated with the executor. The callback groups are added when a node is added to the executor with add_node, or automatically if they are created in the future by that node and have the automatically_add_to_executor_with_node argument set to true.

Returns: a vector of weak pointers that point to callback groups from a node associated with the executor

Reimplemented from rclcpp::Executor.

Definition at line 614 of file events_cbg_executor.cpp.

◆ get_manually_added_callback_groups()

std::vector< rclcpp::CallbackGroup::WeakPtr > rclcpp::executors::EventsCBGExecutor::get_manually_added_callback_groups ( )

overridevirtual

Get callback groups that belong to executor.

This function returns a vector of weak pointers that point to callback groups that were associated with the executor. The callback groups associated with this executor have been added with add_callback_group.

Returns: a vector of weak pointers that point to callback groups that are associated with the executor

Reimplemented from rclcpp::Executor.

Definition at line 597 of file events_cbg_executor.cpp.

◆ remove_callback_group()

void rclcpp::executors::EventsCBGExecutor::remove_callback_group	(	const rclcpp::CallbackGroup::SharedPtr &	group_ptr,
		bool	notify = `true`
	)

overridevirtual

Remove a callback group from the executor.

The callback group is removed from and disassociated with the executor. If the callback group removed was the last callback group from the node that is associated with the executor, the interrupt guard condition is triggered and node's guard condition is removed from the executor.

This function only removes a callback group that was manually added with rclcpp::Executor::add_callback_group. To remove callback groups that were added from a node using rclcpp::Executor::add_node, use rclcpp::Executor::remove_node instead.

Parameters

[in]	group_ptr	Shared pointer to the callback group to be added.
[in]	notify	True to trigger the interrupt guard condition during this function. If the executor is blocked at the rmw layer while waiting for work and it is notified that a callback group was removed, it will wake up.

Exceptions

std::runtime_error	if node is deleted before callback group
std::runtime_error	if the callback group is not associated with the executor

Reimplemented from rclcpp::Executor.

Definition at line 663 of file events_cbg_executor.cpp.

◆ remove_node() [1/2]

void rclcpp::executors::EventsCBGExecutor::remove_node	(	const rclcpp::node_interfaces::NodeBaseInterface::SharedPtr &	node_ptr,
		bool	notify = `true`
	)

overridevirtual

Remove a node from the executor.

Any callback groups automatically added when this node was added with rclcpp::Executor::add_node are automatically removed, and the node is no longer associated with this executor.

This also means that future callback groups created by the given node are no longer automatically added to this executor.

Parameters

[in]	node_ptr	Shared pointer to the node to remove.
[in]	notify	True to trigger the interrupt guard condition and wake up the executor. This is useful if the last node was removed from the executor while the executor was blocked waiting for work in another thread, because otherwise the executor would never be notified.

Exceptions

std::runtime_error	if the node is not associated with an executor.
std::runtime_error	if the node is not associated with this executor.

Reimplemented from rclcpp::Executor.

Definition at line 743 of file events_cbg_executor.cpp.

◆ remove_node() [2/2]

void rclcpp::executors::EventsCBGExecutor::remove_node	(	const std::shared_ptr< rclcpp::Node > &	node_ptr,
		bool	notify = `true`
	)

overridevirtual

Convenience function which takes Node and forwards NodeBaseInterface.

See also: rclcpp::Executor::remove_node

Reimplemented from rclcpp::Executor.

Definition at line 792 of file events_cbg_executor.cpp.

◆ shutdown()

void rclcpp::executors::EventsCBGExecutor::shutdown ( )

protected

Te be called in termination case. E.g. destructor of shutdown callback. Stops the scheduler and cleans up the internal data structures.

Definition at line 122 of file events_cbg_executor.cpp.

◆ spin() [1/2]

void rclcpp::executors::EventsCBGExecutor::spin ( )

overridevirtual

See also: rclcpp::Executor:spin() for more details

Exceptions

std::runtime_error when spin() called while already spinning

Implements rclcpp::Executor.

Definition at line 489 of file events_cbg_executor.cpp.

◆ spin() [2/2]

RCLCPP_PUBLIC void rclcpp::executors::EventsCBGExecutor::spin ( const std::function< void(const std::exception &)> & exception_handler )

See also: rclcpp::Executor:spin() for more details

Exceptions

std::runtime_error when spin() called while already spinning

Parameters

exception_handler will be called for every exception in the processing threads

The exception_handler can be called from multiple threads at the same time. The exception_handler shall rethrow the exception it if wants to terminate the program.

◆ spin_all()

void rclcpp::executors::EventsCBGExecutor::spin_all ( std::chrono::nanoseconds max_duration )

overridevirtual

Collect and execute work repeatedly within a duration or until no more work is available.

This function can be overridden. The default implementation is suitable for a single-threaded model of execution. Adding subscriptions, timers, services, etc. with blocking callbacks will cause this function to block (which may have unintended consequences). If the time that waitables take to be executed is longer than the period on which new waitables become ready, this method will execute work repeatedly until max_duration has elapsed.

Parameters

[in] max_duration The maximum amount of time to spend executing work, must be >= 0. 0 is potentially block forever until no more work is available.

Exceptions

std::invalid_argument if max_duration is less than 0. Note that spin_all() may take longer than this time as it only returns once max_duration has been exceeded.

Reimplemented from rclcpp::Executor.

Definition at line 445 of file events_cbg_executor.cpp.

References collect_and_execute_ready_events().

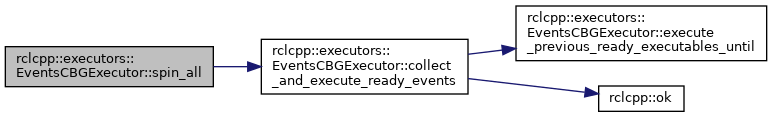

Here is the call graph for this function:

◆ spin_once()

void rclcpp::executors::EventsCBGExecutor::spin_once ( std::chrono::nanoseconds timeout = std::chrono::nanoseconds(-1) )

overridevirtual

Collect work once and execute the next available work, optionally within a duration.

This function can be overridden. The default implementation is suitable for a single-thread model of execution. Adding subscriptions, timers, services, etc. with blocking callbacks will cause this function to block (which may have unintended consequences).

Parameters

[in] timeout The maximum amount of time to spend waiting for work. -1 is potentially block forever waiting for work.

Reimplemented from rclcpp::Executor.

Definition at line 428 of file events_cbg_executor.cpp.

◆ spin_some()

void rclcpp::executors::EventsCBGExecutor::spin_some ( std::chrono::nanoseconds max_duration = std::chrono::nanoseconds(0) )

overridevirtual

Collect work once and execute all available work, optionally within a max duration.

This function can be overridden. The default implementation is suitable for a single-threaded model of execution. Adding subscriptions, timers, services, etc. with blocking or long running callbacks may cause the function exceed the max_duration significantly.

Work that is ready to be done is collected only once, and when collecting that work entities which may have multiple pieces of work ready will only be executed at most one time. The reason for this is that it is not possible to tell if, for example, a ready subscription has only one message ready or multiple without checking again. Because, in order to find out if there are multiple messages, one message must be taken and executed before checking again if that subscription is still ready. However, this function only checks for ready entities to work on once, and so it will never execute a single entity more than once per call to this function. See spin_all() variants for a function that will repeatedly work on a single entity in a single call.

If there is no work to be done when this called, it will return immediately because the collecting of available work is non-blocking. Before each piece of ready work is executed this function checks if the max_duration has been exceeded, and if it has it returns without starting the execution of the next piece of work.

If a max_duration of 0 is given, then all of the collected work will be executed before the function returns.

Parameters

[in] max_duration The maximum amount of time to spend executing work, or 0 for no limit.

Reimplemented from rclcpp::Executor.

Definition at line 440 of file events_cbg_executor.cpp.

References collect_and_execute_ready_events().

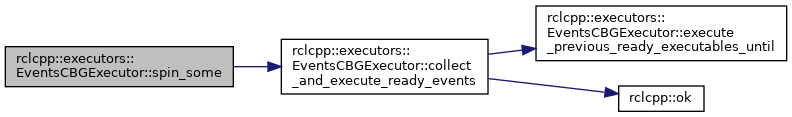

Here is the call graph for this function:

The documentation for this class was generated from the following files:

rclcpp/include/rclcpp/executors/events_cbg_executor/events_cbg_executor.hpp
rclcpp/src/rclcpp/executors/events_cbg_executor/events_cbg_executor.cpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EventsCBGExecutor()

Member Function Documentation

◆ add_callback_group()

◆ add_node() [1/2]

◆ add_node() [2/2]

◆ cancel()

◆ collect_and_execute_ready_events()

◆ execute_previous_ready_executables_until()

◆ get_all_callback_groups()

◆ get_automatically_added_callback_groups_from_nodes()

◆ get_manually_added_callback_groups()

◆ remove_callback_group()

◆ remove_node() [1/2]

◆ remove_node() [2/2]

◆ shutdown()

◆ spin() [1/2]

◆ spin() [2/2]

◆ spin_all()

◆ spin_once()

◆ spin_some()
