#include <stdint.h>
#include "rcl/allocator.h"
#include "rcl/arguments.h"
#include "rcl/context.h"
#include "rcl/guard_condition.h"
#include "rcl/macros.h"
#include "rcl/node_options.h"
#include "rcl/types.h"
#include "rcl/visibility_control.h"
#include "type_description_interfaces/srv/get_type_description.h"

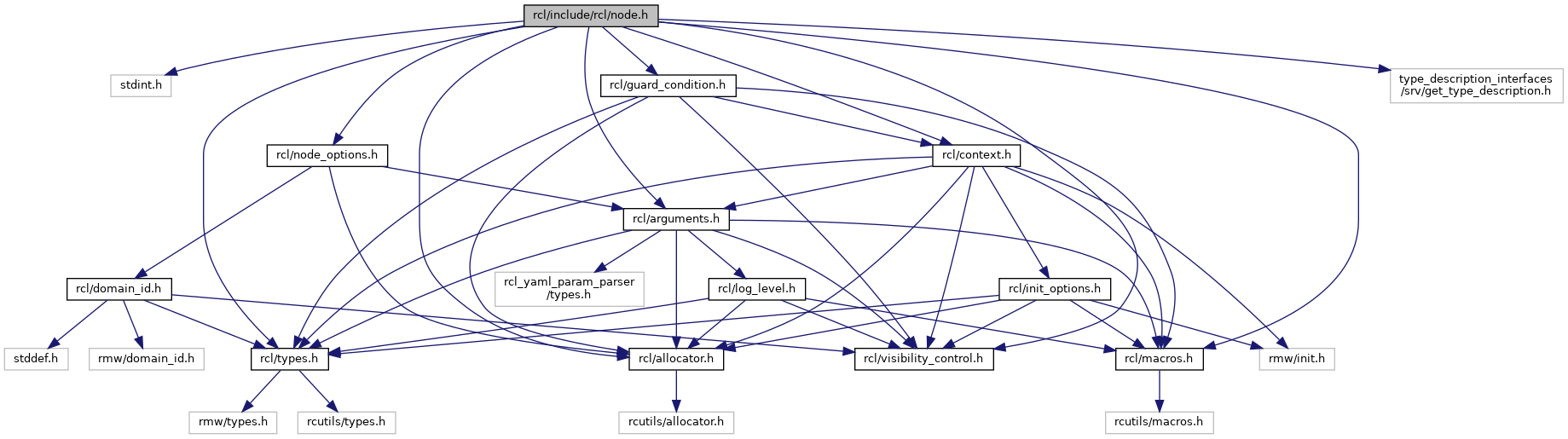

Include dependency graph for node.h:

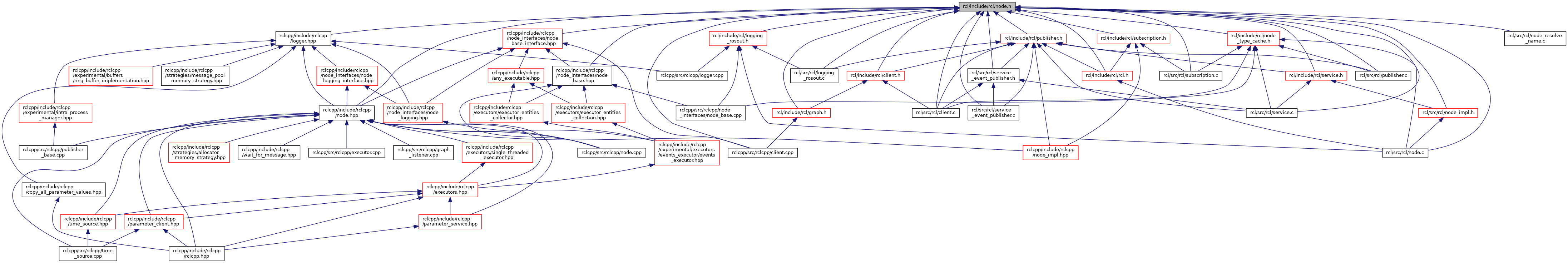

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	rcl_node_s
	Structure which encapsulates a ROS Node. More...

Typedefs
typedef struct rcl_node_impl_s	rcl_node_impl_t

typedef struct rcl_service_s	rcl_service_t

typedef struct rcl_node_s	rcl_node_t
	Structure which encapsulates a ROS Node.

Functions
RCL_PUBLIC RCL_WARN_UNUSED rcl_node_t	rcl_get_zero_initialized_node (void)
	Return a rcl_node_t struct with members initialized to `NULL`.

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_node_init (rcl_node_t node, const char name, const char namespace_, rcl_context_t context, const rcl_node_options_t *options)
	Initialize a ROS node. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_node_fini (rcl_node_t *node)
	Finalize a rcl_node_t. More...

RCL_PUBLIC bool	rcl_node_is_valid (const rcl_node_t *node)
	Return `true` if the node is valid, else `false`. More...

RCL_PUBLIC bool	rcl_node_is_valid_except_context (const rcl_node_t *node)
	Return true if node is valid, except for the context being valid. More...

RCL_PUBLIC RCL_WARN_UNUSED const char *	rcl_node_get_name (const rcl_node_t *node)
	Return the name of the node. More...

RCL_PUBLIC RCL_WARN_UNUSED const char *	rcl_node_get_namespace (const rcl_node_t *node)
	Return the namespace of the node. More...

RCL_PUBLIC RCL_WARN_UNUSED const char *	rcl_node_get_fully_qualified_name (const rcl_node_t *node)
	Return the fully qualified name of the node. More...

RCL_PUBLIC RCL_WARN_UNUSED const rcl_node_options_t *	rcl_node_get_options (const rcl_node_t *node)
	Return the rcl node options. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_node_get_domain_id (const rcl_node_t node, size_t domain_id)
	Return the ROS domain ID that the node is using. More...

RCL_PUBLIC RCL_WARN_UNUSED rmw_node_t *	rcl_node_get_rmw_handle (const rcl_node_t *node)
	Return the rmw node handle. More...

RCL_PUBLIC RCL_WARN_UNUSED uint64_t	rcl_node_get_rcl_instance_id (const rcl_node_t *node)
	Return the associated rcl instance id. More...

RCL_PUBLIC RCL_WARN_UNUSED const rcl_guard_condition_t *	rcl_node_get_graph_guard_condition (const rcl_node_t *node)
	Return a guard condition which is triggered when the ROS graph changes. More...

RCL_PUBLIC RCL_WARN_UNUSED const char *	rcl_node_get_logger_name (const rcl_node_t *node)
	Return the logger name of the node. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_node_resolve_name (const rcl_node_t node, const char input_name, rcl_allocator_t allocator, bool is_service, bool only_expand, char **output_name)
	Expand a given name into a fully-qualified topic name and apply remapping rules. More...

RCL_PUBLIC rcl_ret_t	rcl_get_disable_loaned_message (bool *disable_loaned_message)
	Check if loaned message is disabled, according to the environment variable. More...

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_node_type_description_service_init (rcl_service_t service, const rcl_node_t node)
	Initialize the node's ~/get_type_description service. More...

RCL_PUBLIC void	rcl_node_type_description_service_handle_request (rcl_node_t node, const rmw_request_id_t request_header, const type_description_interfaces__srv__GetTypeDescription_Request request, type_description_interfaces__srv__GetTypeDescription_Response response)
	Process a single pending request to the GetTypeDescription service. More...

Variables
const char *const	RCL_DISABLE_LOANED_MESSAGES_ENV_VAR

Function Documentation

◆ rcl_get_disable_loaned_message()

RCL_PUBLIC rcl_ret_t rcl_get_disable_loaned_message ( bool * disable_loaned_message )

Check if loaned message is disabled, according to the environment variable.

If the ROS_DISABLE_LOANED_MESSAGES environment variable is set to "1", disable_loaned_message will be set to true.

Parameters

[out] disable_loaned_message Must not be NULL.

Returns: RCL_RET_INVALID_ARGUMENT if an argument is not valid, or; RCL_RET_ERROR if an unexpected error happened, or; RCL_RET_OK.

Definition at line 494 of file node.c.

References RCL_RET_INVALID_ARGUMENT.

Referenced by rcl_publisher_get_default_options().

Here is the caller graph for this function:

◆ rcl_node_fini()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_node_fini ( rcl_node_t * node )

Finalize a rcl_node_t.

Destroys any automatically created infrastructure and deallocates memory. After calling, the rcl_node_t can be safely deallocated.

All middleware primitives created by the user, e.g. publishers, services, etc, which were created from this node must be finalized using their respective rcl_*_fini() functions before this is called.

See also: rcl_publisher_fini(); rcl_subscription_fini(); rcl_client_fini(); rcl_service_fini()

Attribute	Adherence
Allocates Memory	Yes
Thread-Safe	No
Uses Atomics	Yes
Lock-Free	Yes [1]

[1] if atomic_is_lock_free() returns true for atomic_uint_least64_t

Parameters

[in] node rcl_node_t to be finalized

Returns: RCL_RET_OK if node was finalized successfully, or; RCL_RET_NODE_INVALID if the node pointer is null, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 341 of file node.c.

References rcl_node_options_s::allocator, rcl_node_options_s::arguments, rcl_arguments_s::impl, rcl_node_s::impl, rcl_arguments_fini(), rcl_guard_condition_fini(), RCL_RET_ERROR, RCL_RET_NODE_INVALID, and RCL_RET_OK.

Referenced by rclcpp::node_interfaces::NodeBase::NodeBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_node_get_domain_id()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_node_get_domain_id	(	const rcl_node_t *	node,
		size_t *	domain_id
	)

Return the ROS domain ID that the node is using.

This function returns the ROS domain ID that the node is in.

This function should be used to determine what domain_id was used rather than checking the domain_id field in the node options, because if RCL_NODE_OPTIONS_DEFAULT_DOMAIN_ID is used when creating the node then it is not changed after creation, but this function will return the actual domain_id used.

The domain_id field must point to an allocated size_t object to which the ROS domain ID will be written.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in]	node	the handle to the node being queried
[out]	domain_id	storage for the domain id

Returns: RCL_RET_OK if node the domain ID was retrieved successfully, or; RCL_RET_NODE_INVALID if the node is invalid, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 444 of file node.c.

References rcl_node_s::context, rcl_context_get_domain_id(), rcl_node_is_valid(), RCL_RET_INVALID_ARGUMENT, RCL_RET_NODE_INVALID, and RCL_RET_OK.

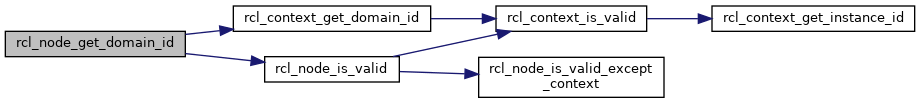

Here is the call graph for this function:

◆ rcl_node_get_fully_qualified_name()

RCL_PUBLIC RCL_WARN_UNUSED const char* rcl_node_get_fully_qualified_name ( const rcl_node_t * node )

Return the fully qualified name of the node.

This function returns the node's internal namespace and name combined string. This function can fail, and therefore return NULL, if:

node is NULL
node has not been initialized (the implementation is invalid)

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the node

Returns: fully qualified name string if successful, otherwise NULL

Definition at line 426 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rclcpp::node_interfaces::NodeBase::get_fully_qualified_name().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_node_get_graph_guard_condition()

RCL_PUBLIC RCL_WARN_UNUSED const rcl_guard_condition_t* rcl_node_get_graph_guard_condition ( const rcl_node_t * node )

Return a guard condition which is triggered when the ROS graph changes.

The handle returned is a pointer to an internally held rcl guard condition. This function can fail, and therefore return NULL, if:

node is NULL
node is invalid

The returned handle is made invalid if the node is finialized or if rcl_shutdown() is called.

The guard condition will be triggered anytime a change to the ROS graph occurs. A ROS graph change includes things like (but not limited to) a new publisher advertises, a new subscription is created, a new service becomes available, a subscription is canceled, etc.

Todo:: TODO(wjwwood): link to exhaustive list of graph events

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the rcl node

Returns: rcl guard condition handle if successful, otherwise NULL

Definition at line 476 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rclcpp::node_interfaces::NodeGraph::get_graph_guard_condition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_node_get_logger_name()

RCL_PUBLIC RCL_WARN_UNUSED const char* rcl_node_get_logger_name ( const rcl_node_t * node )

Return the logger name of the node.

This function returns the node's internal logger name string. This function can fail, and therefore return NULL, if:

node is NULL
node has not been initialized (the implementation is invalid)

The returned string is only valid as long as the given rcl_node_t is valid. The value of the string may change if the value in the rcl_node_t changes, and therefore copying the string is recommended if this is a concern.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the node

Returns: logger_name string if successful, otherwise NULL

Definition at line 485 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rclcpp::node_interfaces::NodeLogging::get_logger_name(), rclcpp::get_node_logger(), rcl_logging_rosout_fini_publisher_for_node(), and rcl_logging_rosout_init_publisher_for_node().

Here is the call graph for this function:

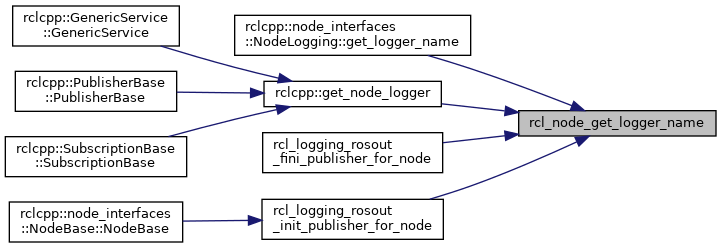

Here is the caller graph for this function:

◆ rcl_node_get_name()

RCL_PUBLIC RCL_WARN_UNUSED const char* rcl_node_get_name ( const rcl_node_t * node )

Return the name of the node.

This function returns the node's internal name string. This function can fail, and therefore return NULL, if:

node is NULL
node has not been initialized (the implementation is invalid)

The returned string is only valid as long as the given rcl_node_t is valid. The value of the string may change if the value in the rcl_node_t changes, and therefore copying the string is recommended if this is a concern.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the node

Returns: name string if successful, otherwise NULL

Definition at line 408 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rclcpp::Client< ServiceT >::Client(), rclcpp::node_interfaces::NodeGraph::count_clients(), rclcpp::node_interfaces::NodeGraph::count_publishers(), rclcpp::node_interfaces::NodeGraph::count_services(), rclcpp::node_interfaces::NodeGraph::count_subscribers(), rclcpp::GenericService::GenericService(), rclcpp::node_interfaces::NodeBase::get_name(), rclcpp::PublisherBase::PublisherBase(), rcl_logging_rosout_init_publisher_for_node(), rcl_node_init(), rcl_node_resolve_name(), rclcpp::Service< ServiceT >::Service(), and rclcpp::SubscriptionBase::SubscriptionBase().

Here is the call graph for this function:

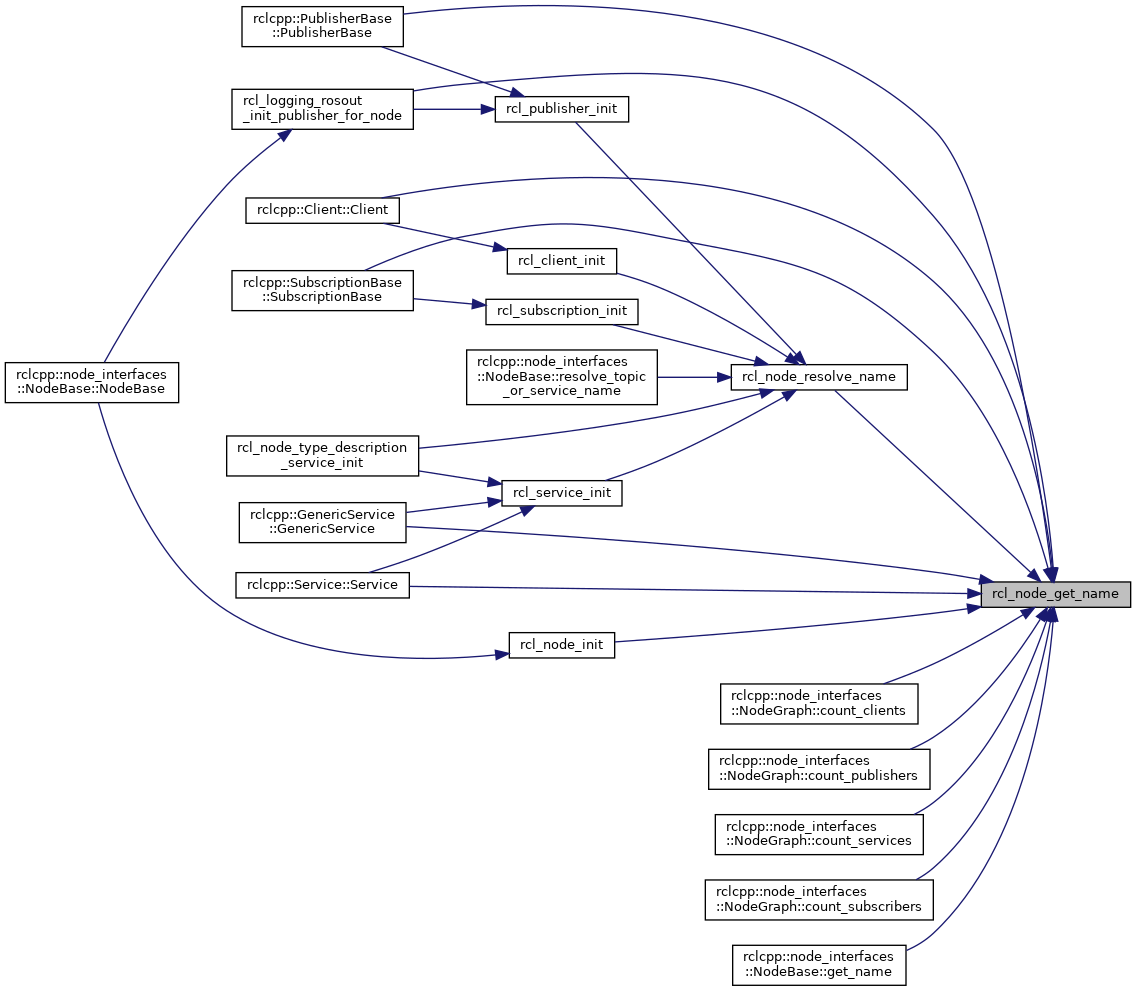

Here is the caller graph for this function:

◆ rcl_node_get_namespace()

RCL_PUBLIC RCL_WARN_UNUSED const char* rcl_node_get_namespace ( const rcl_node_t * node )

Return the namespace of the node.

This function returns the node's internal namespace string. This function can fail, and therefore return NULL, if:

node is NULL
node has not been initialized (the implementation is invalid)

The returned string is only valid as long as the given rcl_node_t is valid. The value of the string may change if the value in the rcl_node_t changes, and therefore copying the string is recommended if this is a concern.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the node

Returns: name string if successful, otherwise NULL

Definition at line 417 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rclcpp::Client< ServiceT >::Client(), rclcpp::node_interfaces::NodeGraph::count_clients(), rclcpp::node_interfaces::NodeGraph::count_publishers(), rclcpp::node_interfaces::NodeGraph::count_services(), rclcpp::node_interfaces::NodeGraph::count_subscribers(), rclcpp::GenericService::GenericService(), rclcpp::node_interfaces::NodeBase::get_namespace(), rclcpp::PublisherBase::PublisherBase(), rcl_node_init(), rcl_node_resolve_name(), rclcpp::Service< ServiceT >::Service(), and rclcpp::SubscriptionBase::SubscriptionBase().

Here is the call graph for this function:

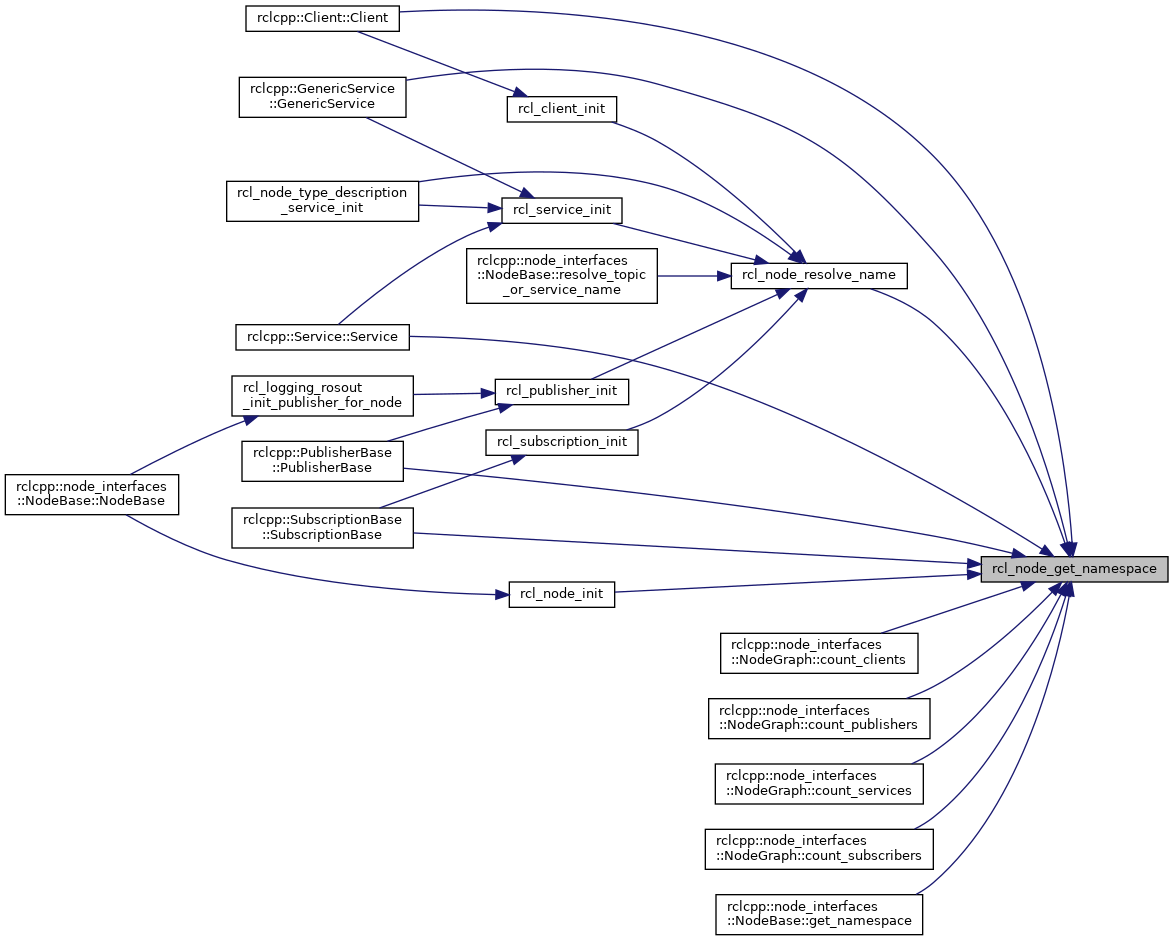

Here is the caller graph for this function:

◆ rcl_node_get_options()

RCL_PUBLIC RCL_WARN_UNUSED const rcl_node_options_t* rcl_node_get_options ( const rcl_node_t * node )

Return the rcl node options.

This function returns the node's internal options struct. This function can fail, and therefore return NULL, if:

node is NULL
node has not been initialized (the implementation is invalid)

The returned struct is only valid as long as the given rcl_node_t is valid. The values in the struct may change if the options of the rcl_node_t changes, and therefore copying the struct is recommended if this is a concern.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the node

Returns: options struct if successful, otherwise NULL

Definition at line 435 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rclcpp::node_interfaces::NodeParameters::NodeParameters(), rcl_count_clients(), rcl_count_publishers(), rcl_count_services(), rcl_count_subscribers(), rcl_logging_rosout_init_publisher_for_node(), rcl_node_resolve_name(), and rcl_service_server_is_available().

Here is the call graph for this function:

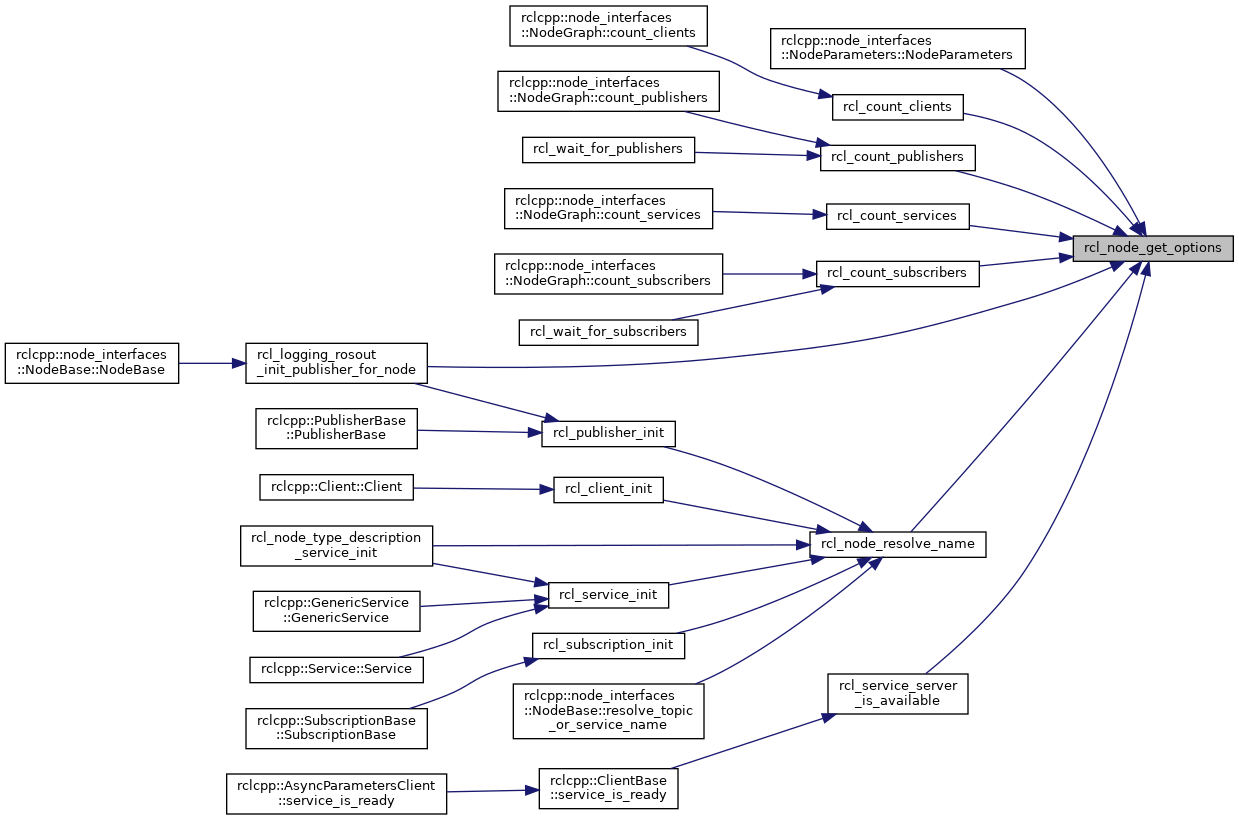

Here is the caller graph for this function:

◆ rcl_node_get_rcl_instance_id()

RCL_PUBLIC RCL_WARN_UNUSED uint64_t rcl_node_get_rcl_instance_id ( const rcl_node_t * node )

Return the associated rcl instance id.

This id is stored when rcl_node_init is called and can be compared with the value returned by rcl_get_instance_id() to check if this node was created in the current rcl context (since the latest call to rcl_init().

This function can fail, and therefore return 0, if:

node is NULL
node has not been initialized (the implementation is invalid)

This function will succeed even if rcl_shutdown() has been called since the node was created.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the rcl node

Returns: rcl instance id captured during node init or 0 on error

Definition at line 467 of file node.c.

References rcl_node_s::context, rcl_context_get_instance_id(), and rcl_node_is_valid_except_context().

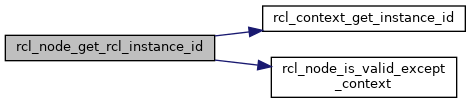

Here is the call graph for this function:

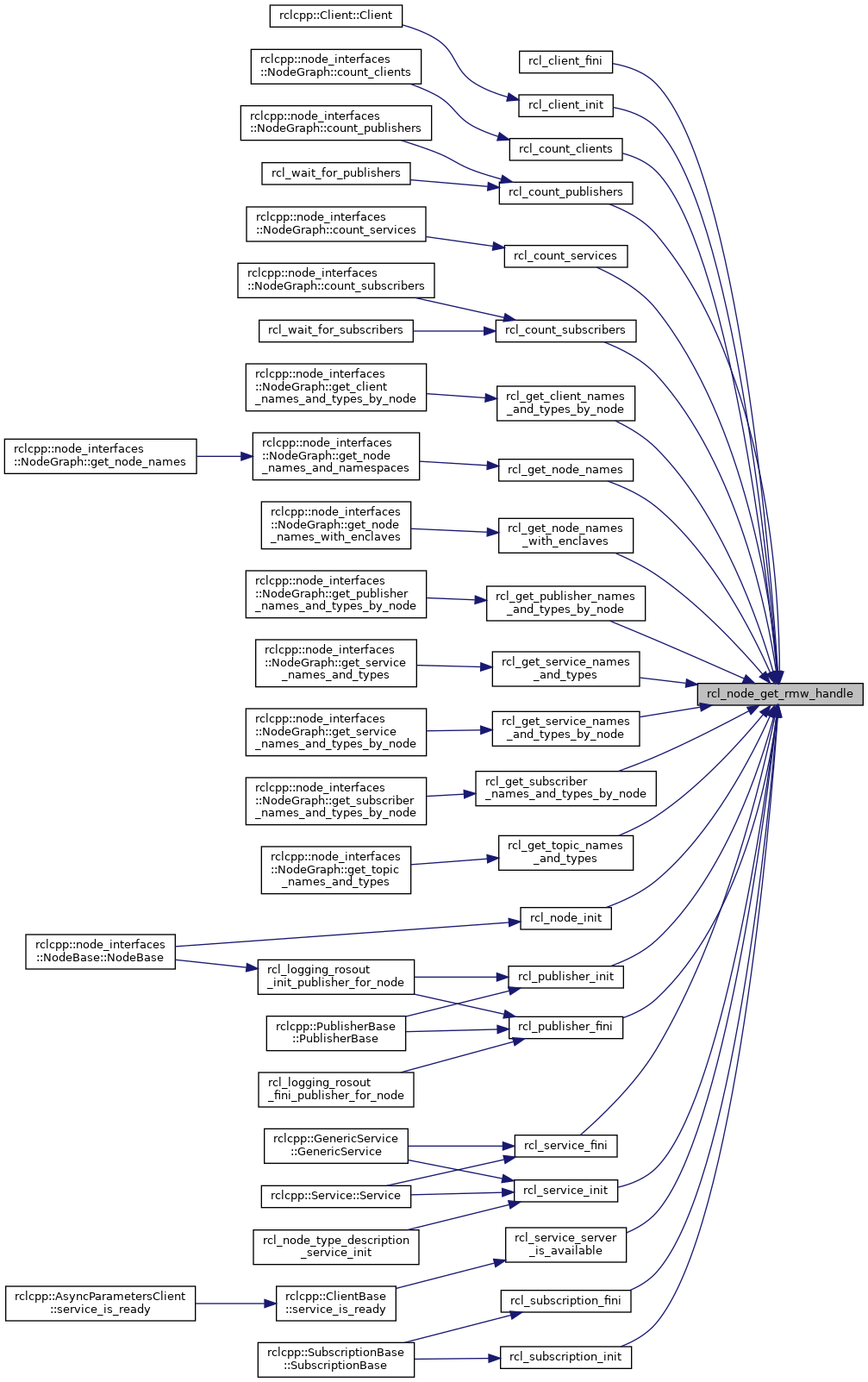

◆ rcl_node_get_rmw_handle()

RCL_PUBLIC RCL_WARN_UNUSED rmw_node_t* rcl_node_get_rmw_handle ( const rcl_node_t * node )

Return the rmw node handle.

The handle returned is a pointer to the internally held rmw handle. This function can fail, and therefore return NULL, if:

node is NULL
node has not been initialized (the implementation is invalid)

The returned handle is made invalid if the node is finalized or if rcl_shutdown() is called. The returned handle is not guaranteed to be valid for the life time of the node as it may be finalized and recreated itself. Therefore it is recommended to get the handle from the node using this function each time it is needed and avoid use of the handle concurrently with functions that might change it.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in] node pointer to the rcl node

Returns: rmw node handle if successful, otherwise NULL

Definition at line 458 of file node.c.

References rcl_node_s::impl, and rcl_node_is_valid_except_context().

Referenced by rcl_client_fini(), rcl_client_init(), rcl_count_clients(), rcl_count_publishers(), rcl_count_services(), rcl_count_subscribers(), rcl_get_client_names_and_types_by_node(), rcl_get_node_names(), rcl_get_node_names_with_enclaves(), rcl_get_publisher_names_and_types_by_node(), rcl_get_service_names_and_types(), rcl_get_service_names_and_types_by_node(), rcl_get_subscriber_names_and_types_by_node(), rcl_get_topic_names_and_types(), rcl_node_init(), rcl_publisher_fini(), rcl_publisher_init(), rcl_service_fini(), rcl_service_init(), rcl_service_server_is_available(), rcl_subscription_fini(), and rcl_subscription_init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_node_init()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_node_init	(	rcl_node_t *	node,
		const char *	name,
		const char *	namespace_,
		rcl_context_t *	context,
		const rcl_node_options_t *	options
	)

Initialize a ROS node.

Calling this on a rcl_node_t makes it a valid node handle until rcl_shutdown is called or until rcl_node_fini is called on it.

After calling, the ROS node object can be used to create other middleware primitives like publishers, services, parameters, etc.

The name of the node must not be NULL and adhere to naming restrictions, see the rmw_validate_node_name() function for rules.

Todo:: TODO(wjwwood): node name uniqueness is not yet enforced

The name of the node cannot coincide with another node of the same name. If a node of the same name is already in the domain, it will be shutdown.

The namespace of the node should not be NULL and should also pass the rmw_validate_namespace() function's rules.

Additionally this function allows namespaces which lack a leading forward slash. Because there is no notion of a relative namespace, there is no difference between a namespace which lacks a forward and the same namespace with a leading forward slash. Therefore, a namespace like "foo/bar" is automatically changed to "/foo/bar" by this function. Similarly, the namespace "" will implicitly become "/" which is a valid namespace.

Todo:: TODO(wjwwood): Parameter infrastructure is currently initialized in the language specific client library, e.g. rclcpp for C++, but will be initialized here in the future. When that happens there will be an option to avoid parameter infrastructure with an option in the rcl_node_options_t struct.

A node contains infrastructure for ROS parameters, which include advertising publishers and service servers. This function will create those external parameter interfaces even if parameters are not used later.

The rcl_node_t given must be allocated and zero initialized. Passing an rcl_node_t which has already had this function called on it, more recently than rcl_node_fini, will fail. An allocated rcl_node_t with uninitialized memory is undefined behavior.

Expected usage:

rcl_context_t context = rcl_get_zero_initialized_context();
// ... initialize the context with rcl_init()
rcl_node_t node = rcl_get_zero_initialized_node();
rcl_node_options_t node_ops = rcl_node_get_default_options();
// ... node options customization
rcl_ret_t ret = rcl_node_init(&node, "node_name", "/node_ns", &context, &node_ops);
// ... error handling and then use the node, but eventually deinitialize it:
ret = rcl_node_fini(&node);
// ... error handling for rcl_node_fini()

Attribute	Adherence
Allocates Memory	Yes
Thread-Safe	No
Uses Atomics	Yes
Lock-Free	Yes [1]

[1] if atomic_is_lock_free() returns true for atomic_uint_least64_t

Precondition: the node handle must be allocated, zero initialized, and invalid; the context handle must be allocated, initialized, and valid

Postcondition: the node handle is valid and can be used in other rcl_* functions

Parameters

[in,out]	node	a preallocated rcl_node_t
[in]	name	the name of the node, must be a valid c-string
[in]	namespace_	the namespace of the node, must be a valid c-string
[in]	context	the context instance with which the node should be associated
[in]	options	the node options. The options are deep copied into the node. The caller is always responsible for freeing memory used options they pass in.

Returns: RCL_RET_OK if the node was initialized successfully, or; RCL_RET_ALREADY_INIT if the node has already be initialized, or; RCL_RET_NOT_INIT if the given context is not initialized, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid or context is NULL, or; RCL_RET_BAD_ALLOC if allocating memory failed, or; RCL_RET_NODE_INVALID_NAME if the name is invalid, or; RCL_RET_NODE_INVALID_NAMESPACE if the namespace_ is invalid, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 106 of file node.c.

References rcl_guard_condition_options_s::allocator, rcl_node_options_s::allocator, rcl_node_options_s::arguments, rcl_node_s::context, rcl_context_s::global_arguments, rcl_context_s::impl, rcl_node_s::impl, RCL_CHECK_ALLOCATOR_WITH_MSG, rcl_context_is_valid(), rcl_get_zero_initialized_guard_condition(), rcl_get_zero_initialized_node(), rcl_guard_condition_fini(), rcl_guard_condition_get_default_options(), rcl_guard_condition_init_from_rmw(), rcl_node_get_default_options(), rcl_node_get_name(), rcl_node_get_namespace(), rcl_node_get_rmw_handle(), rcl_node_options_copy(), rcl_node_options_fini(), rcl_remap_node_name(), rcl_remap_node_namespace(), RCL_RET_ALREADY_INIT, RCL_RET_BAD_ALLOC, RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_NODE_INVALID_NAME, RCL_RET_NODE_INVALID_NAMESPACE, RCL_RET_NOT_INIT, RCL_RET_OK, rcl_context_impl_s::rmw_context, and rcl_node_options_s::use_global_arguments.

Referenced by rclcpp::node_interfaces::NodeBase::NodeBase().

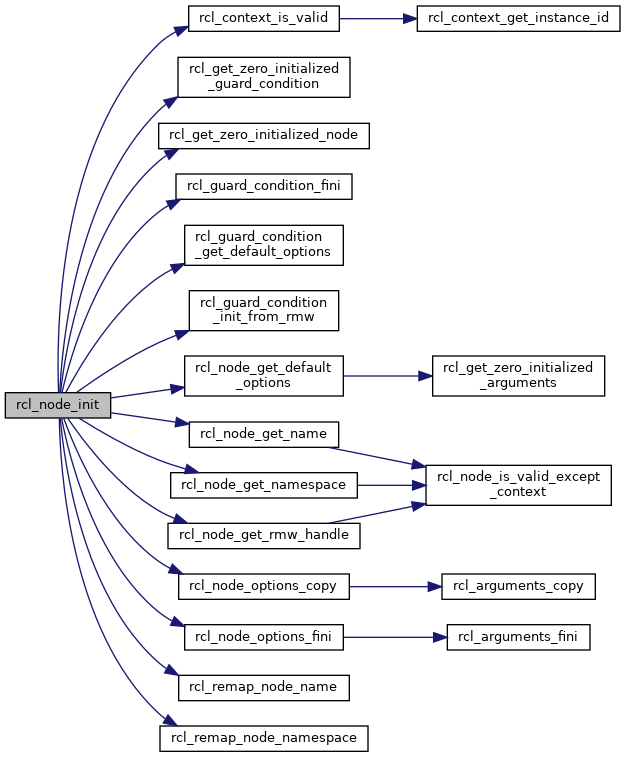

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcl_node_is_valid()

RCL_PUBLIC bool rcl_node_is_valid ( const rcl_node_t * node )

Return true if the node is valid, else false.

Also return false if the node pointer is NULL or the allocator is invalid.

A node is invalid if:

the implementation is NULL (rcl_node_init not called or failed)
rcl_shutdown has been called since the node has been initialized
the node has been finalized with rcl_node_fini

There is a possible validity race condition.

Consider:

assert(rcl_node_is_valid(node));  // <-- thread 1
rcl_shutdown();                   // <-- thread 2
// use node as if valid           // <-- thread 1

In the third line the node is now invalid, even though on the previous line of thread 1 it was checked to be valid. This is why this function is considered not thread-safe.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	Yes
Lock-Free	Yes [1]

[1] if atomic_is_lock_free() returns true for atomic_uint_least64_t

Parameters

[in] node rcl_node_t to be validated

Returns: true if the node and allocator are valid, otherwise false.

Definition at line 394 of file node.c.

References rcl_node_s::context, rcl_context_is_valid(), and rcl_node_is_valid_except_context().

Referenced by rcl_client_init(), rcl_count_clients(), rcl_count_publishers(), rcl_count_services(), rcl_count_subscribers(), rcl_get_client_names_and_types_by_node(), rcl_get_node_names(), rcl_get_node_names_with_enclaves(), rcl_get_publisher_names_and_types_by_node(), rcl_get_service_names_and_types(), rcl_get_service_names_and_types_by_node(), rcl_get_subscriber_names_and_types_by_node(), rcl_get_topic_names_and_types(), rcl_node_get_domain_id(), rcl_publisher_init(), rcl_service_init(), rcl_service_server_is_available(), and rcl_subscription_init().

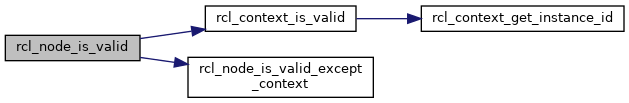

Here is the call graph for this function:

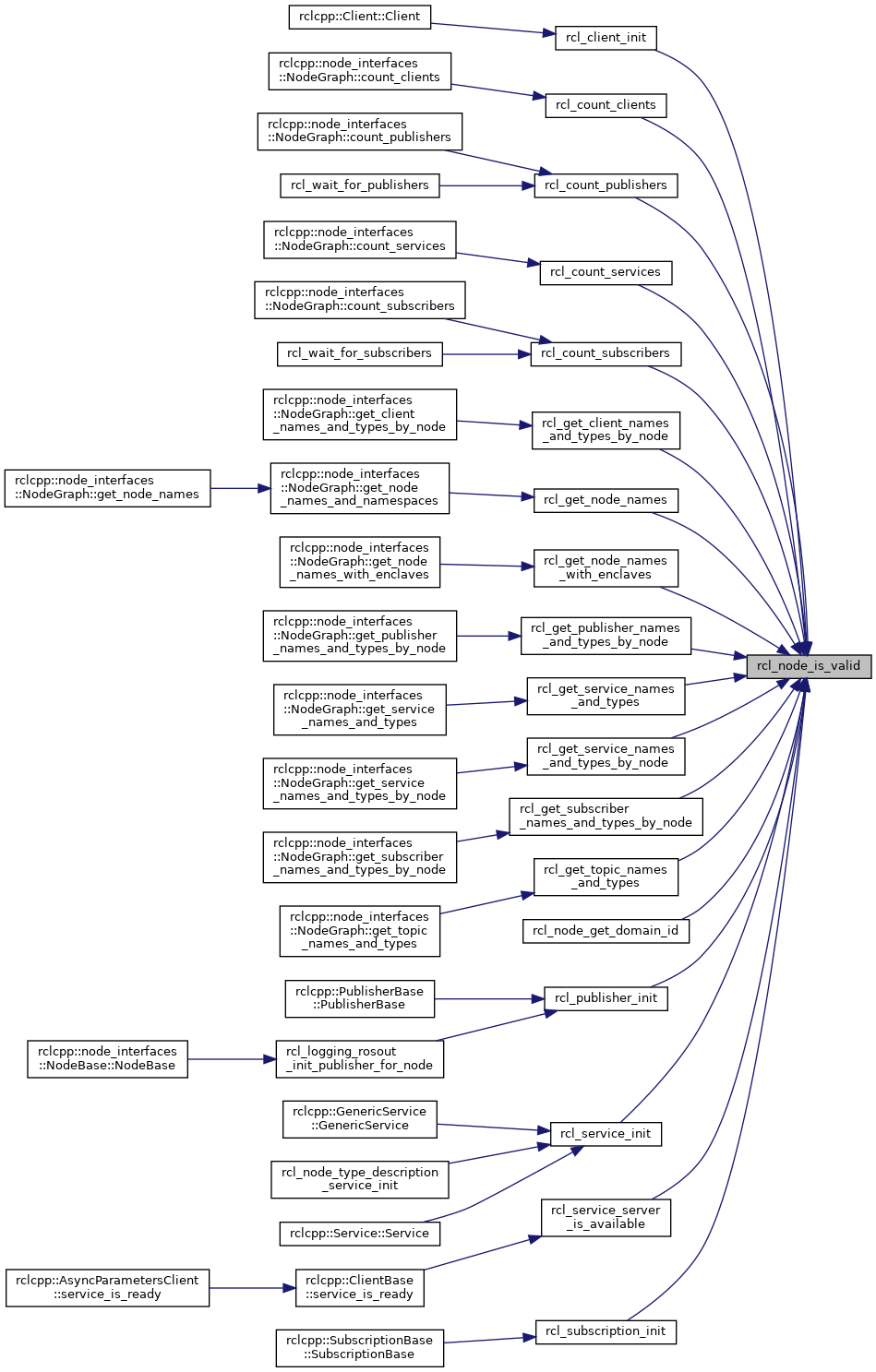

Here is the caller graph for this function:

◆ rcl_node_is_valid_except_context()

RCL_PUBLIC bool rcl_node_is_valid_except_context ( const rcl_node_t * node )

Return true if node is valid, except for the context being valid.

This is used in clean up functions that need to access the node, but do not need use any functions with the context.

It is identical to rcl_node_is_valid except it ignores the state of the context associated with the node.

See also: rcl_node_is_valid()

Definition at line 384 of file node.c.

References rcl_node_s::impl.

Referenced by rcl_client_fini(), rcl_node_get_fully_qualified_name(), rcl_node_get_graph_guard_condition(), rcl_node_get_logger_name(), rcl_node_get_name(), rcl_node_get_namespace(), rcl_node_get_options(), rcl_node_get_rcl_instance_id(), rcl_node_get_rmw_handle(), rcl_node_is_valid(), rcl_publisher_fini(), rcl_service_fini(), and rcl_subscription_fini().

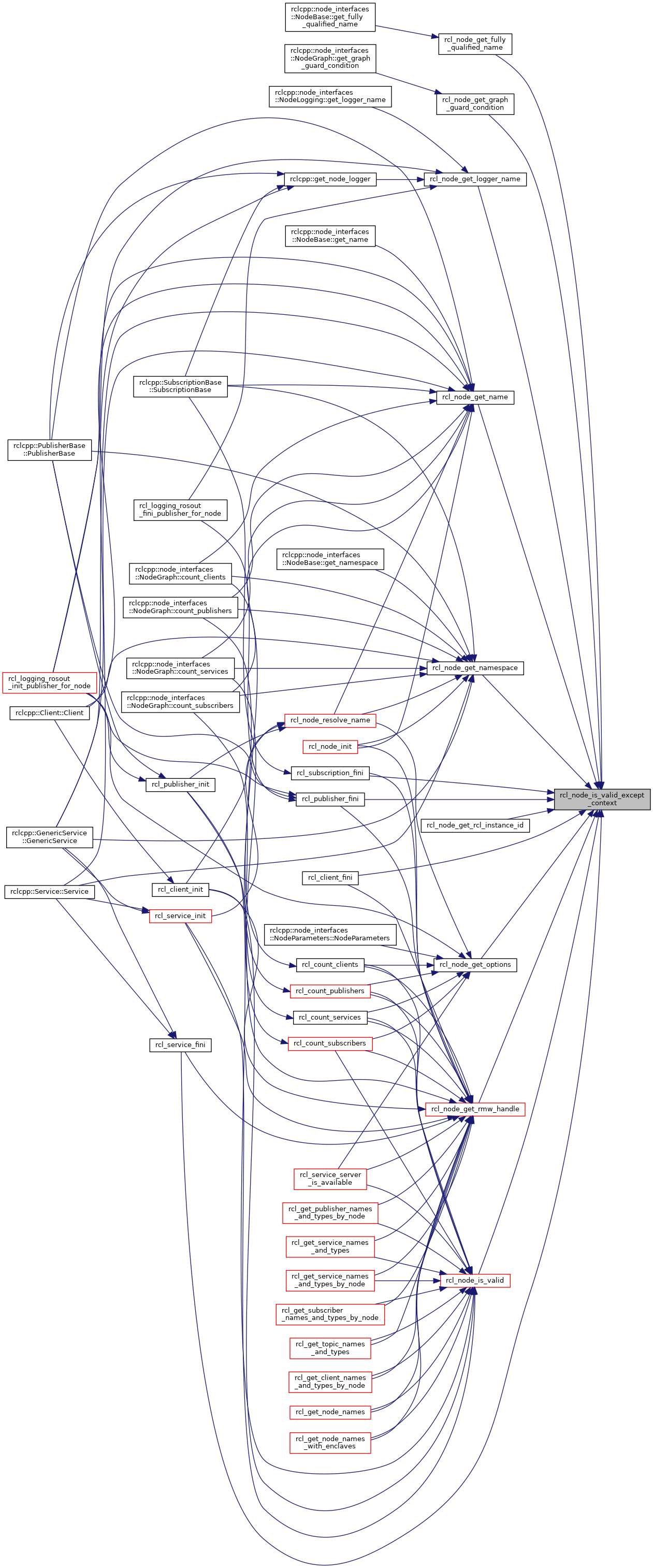

Here is the caller graph for this function:

◆ rcl_node_resolve_name()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_node_resolve_name	(	const rcl_node_t *	node,
		const char *	input_name,
		rcl_allocator_t	allocator,
		bool	is_service,
		bool	only_expand,
		char **	output_name
	)

Expand a given name into a fully-qualified topic name and apply remapping rules.

Attribute	Adherence
Allocates Memory	Yes
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in]	node	Node object. Its name, namespace, local/global command line arguments are used.
[in]	input_name	Topic name to be expanded and remapped.
[in]	allocator	The allocator to be used when creating the output topic.
[in]	is_service	For services use `true`, for topics use `false`.
[in]	only_expand	When `true`, remapping rules are ignored.
[out]	output_name	Output char * pointer.

Returns: RCL_RET_OK if the topic name was expanded successfully, or; RCL_RET_INVALID_ARGUMENT if any of input_name, node_name, node_namespace or output_name are NULL, or; RCL_RET_INVALID_ARGUMENT if both local_args and global_args are NULL, or; RCL_RET_BAD_ALLOC if allocating memory failed, or; RCL_RET_TOPIC_NAME_INVALID if the given topic name is invalid (see rcl_validate_topic_name()), or; RCL_RET_NODE_INVALID_NAME if the given node name is invalid (see rmw_validate_node_name()), or; RCL_RET_NODE_INVALID_NAMESPACE if the given node namespace is invalid (see rmw_validate_namespace()), or; RCL_RET_UNKNOWN_SUBSTITUTION for unknown substitutions in name, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 134 of file node_resolve_name.c.

References rcl_node_options_s::arguments, rcl_node_s::context, rcl_context_s::global_arguments, rcl_node_get_name(), rcl_node_get_namespace(), rcl_node_get_options(), RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, and rcl_node_options_s::use_global_arguments.

Referenced by rcl_client_init(), rcl_node_type_description_service_init(), rcl_publisher_init(), rcl_service_init(), rcl_subscription_init(), and rclcpp::node_interfaces::NodeBase::resolve_topic_or_service_name().

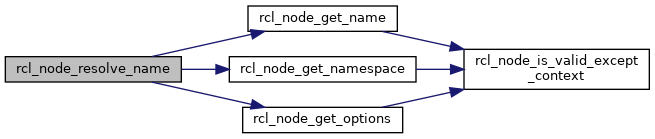

Here is the call graph for this function:

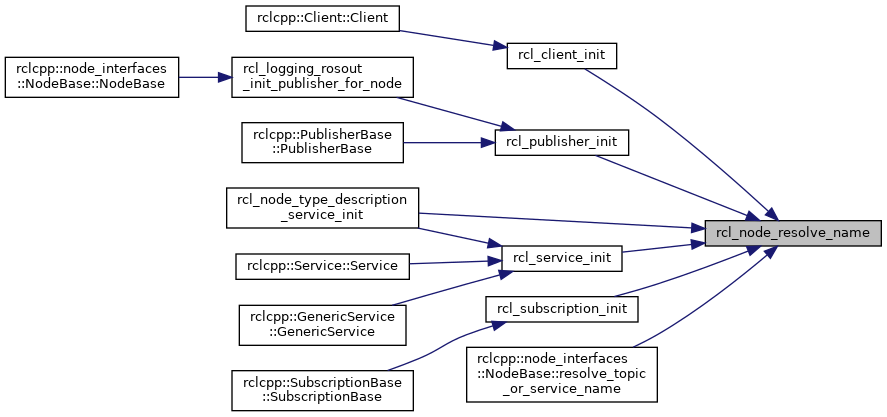

Here is the caller graph for this function:

◆ rcl_node_type_description_service_handle_request()

RCL_PUBLIC void rcl_node_type_description_service_handle_request	(	rcl_node_t *	node,
		const rmw_request_id_t *	request_header,
		const type_description_interfaces__srv__GetTypeDescription_Request *	request,
		type_description_interfaces__srv__GetTypeDescription_Response *	response
	)

Process a single pending request to the GetTypeDescription service.

This function may be called to handle incoming requests by any client starting the service. It is not intended to be called directly by users.

Attribute	Adherence
Allocates Memory	No
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in]	node	the handle to the node
[in]	request_header	ID of the incoming request
[in]	request	Request that came in to the service
[out]	response	Allocated, uninitialized response to the request

Returns: void

Definition at line 513 of file node.c.

References rcl_node_s::impl.

◆ rcl_node_type_description_service_init()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_node_type_description_service_init	(	rcl_service_t *	service,
		const rcl_node_t *	node
	)

Initialize the node's ~/get_type_description service.

This function initializes the node's ~/get_type_description service which can be used to retrieve information about types used by the node's publishers, subscribers, services or actions.

Note that this will not register any callback for the service, client-level code must register rcl_node_type_description_service_handle_request or a custom callback to handle incoming requests, via that client's executor/waitset capabilities.

Note that the returned service must be cleaned up by the caller by calling rcl_service_fini.

Attribute	Adherence
Allocates Memory	Yes
Thread-Safe	No
Uses Atomics	No
Lock-Free	Yes

Parameters

[in]	service	the handle to the type description service to be initialized
[in]	node	handle to the node for which to initialize the service

Returns: RCL_RET_OK if the service was successfully initialized, or; RCL_RET_INVALID_ARGUMENT if any arguments are invalid, or; RCL_RET_ALREADY_INIT if the service is already initialized, or; RCL_RET_BAD_ALLOC if memory allocation for the service failed, or; RCL_RET_ERROR if an unspecified error occurs.

Definition at line 579 of file node.c.

References rcl_context_impl_s::allocator, rcl_node_s::context, rcl_context_s::impl, rcl_node_s::impl, rcl_node_resolve_name(), RCL_RET_ALREADY_INIT, RCL_RET_INVALID_ARGUMENT, RCL_RET_NODE_INVALID, RCL_RET_OK, rcl_service_get_default_options(), rcl_service_init(), and rcl_service_is_valid().

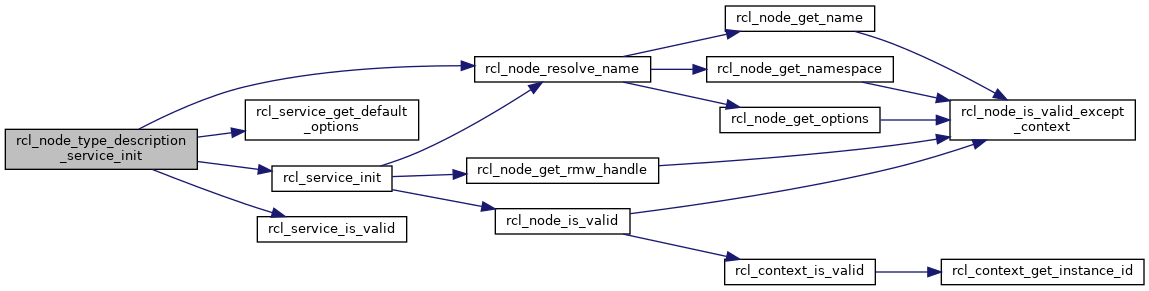

Here is the call graph for this function:

Classes

Typedefs

Functions

Variables

Function Documentation

◆ rcl_get_disable_loaned_message()

◆ rcl_node_fini()

◆ rcl_node_get_domain_id()

◆ rcl_node_get_fully_qualified_name()

◆ rcl_node_get_graph_guard_condition()

◆ rcl_node_get_logger_name()

◆ rcl_node_get_name()

◆ rcl_node_get_namespace()

◆ rcl_node_get_options()

◆ rcl_node_get_rcl_instance_id()

◆ rcl_node_get_rmw_handle()

◆ rcl_node_init()

◆ rcl_node_is_valid()

◆ rcl_node_is_valid_except_context()

◆ rcl_node_resolve_name()

◆ rcl_node_type_description_service_handle_request()

◆ rcl_node_type_description_service_init()
