rclcpp::LoanedMessage< MessageT, AllocatorT > Class Template Reference

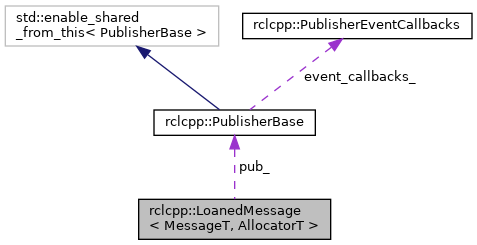

Collaboration diagram for rclcpp::LoanedMessage< MessageT, AllocatorT >:

Public Types
using	MessageAllocatorTraits = rclcpp::allocator::AllocRebind< MessageT, AllocatorT >
using	MessageAllocator = typename MessageAllocatorTraits::allocator_type

Public Member Functions
	LoanedMessage (const rclcpp::PublisherBase &pub, MessageAllocator allocator)
	Constructor of the LoanedMessage class. More...
	LoanedMessage (LoanedMessage< MessageT > &&other)
	Move semantic for RVO.
virtual	~LoanedMessage ()
	Destructor of the LoanedMessage class. More...
bool	is_valid () const
	Validate if the message was correctly allocated. More...
MessageT &	get () const
	Access the ROS message instance. More...
std::unique_ptr< MessageT, std::function< void(MessageT *)> >	release ()
	Release ownership of the ROS message instance. More...

Protected Member Functions
	LoanedMessage (const LoanedMessage< MessageT > &other)=delete
	Deleted copy constructor to preserve memory integrity.

Protected Attributes
const rclcpp::PublisherBase &	pub_
MessageT *	message_
MessageAllocator	message_allocator_

Detailed Description

template<typename MessageT, typename AllocatorT = std::allocator<void>>
class rclcpp::LoanedMessage< MessageT, AllocatorT >

Definition at line 32 of file loaned_message.hpp.

Constructor & Destructor Documentation

LoanedMessage()

template<typename MessageT , typename AllocatorT = std::allocator<void>>

rclcpp::LoanedMessage< MessageT, AllocatorT >::LoanedMessage ( const rclcpp::PublisherBase &  pub, MessageAllocator  allocator  )

inline

Constructor of the LoanedMessage class.

The constructor of this class allocates memory for a given message type and associates this with a given publisher.

The underlying middleware is queried to determine whether it is able to allocate the appropriate memory for this message type or not. In the case that the middleware cannot loan messages, the passed in allocator instance is used to allocate the message within the scope of this class. Otherwise, the allocator is ignored and the allocation is solely performed in the underlying middleware with its appropriate allocation strategy. The need for this arises as the user code can be written explicitly targeting a middleware capable of loaning messages. However, this user code is ought to be usable even when dynamically linked against a middleware which doesn't support message loaning in which case the allocator will be used.

Parameters

[in]	pub	rclcpp::Publisher instance to which the memory belongs
[in]	allocator	Allocator instance in case middleware cannot allocate messages

Exceptions

anything

rclcpp::exceptions::throw_from_rcl_error can throw.

Definition at line 58 of file loaned_message.hpp.

References rclcpp::PublisherBase::can_loan_messages(), rclcpp::get_logger(), rclcpp::PublisherBase::get_publisher_handle(), rcl_borrow_loaned_message(), and RCL_RET_OK.

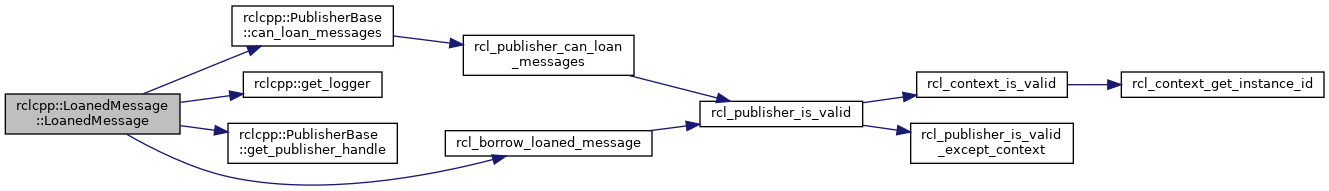

Here is the call graph for this function:

~LoanedMessage()

template<typename MessageT , typename AllocatorT = std::allocator<void>>

virtual rclcpp::LoanedMessage< MessageT, AllocatorT >::~LoanedMessage ( )

inlinevirtual

Destructor of the LoanedMessage class.

The destructor has the explicit task to return the allocated memory for its message instance. If the message was previously allocated via the middleware, the message is getting returned to the middleware to cleanly destroy the allocation. In the case that the local allocator instance was used, the same instance is then being used to destroy the allocated memory.

The contract here is that the memory for this message is valid as long as this instance of the LoanedMessage class is alive.

Definition at line 105 of file loaned_message.hpp.

References rclcpp::PublisherBase::can_loan_messages(), rclcpp::get_logger(), rclcpp::PublisherBase::get_publisher_handle(), RCL_RET_OK, and rcl_return_loaned_message_from_publisher().

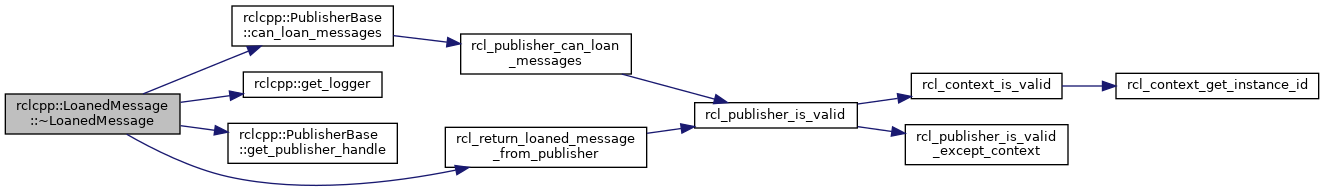

Here is the call graph for this function:

Member Function Documentation

get()

template<typename MessageT , typename AllocatorT = std::allocator<void>>

MessageT& rclcpp::LoanedMessage< MessageT, AllocatorT >::get ( ) const

inline

Access the ROS message instance.

A call to get() will return a mutable reference to the underlying ROS message instance. This allows a user to modify the content of the message prior to publishing it.

If this reference is copied, the memory for this copy is no longer managed by the LoanedMessage instance and has to be cleanup individually.

Definition at line 151 of file loaned_message.hpp.

is_valid()

template<typename MessageT , typename AllocatorT = std::allocator<void>>

bool rclcpp::LoanedMessage< MessageT, AllocatorT >::is_valid ( ) const

inline

Validate if the message was correctly allocated.

The allocated memory might not be always consistent and valid. Reasons why this could fail is that an allocation step was failing, e.g. just like malloc could fail or a maximum amount of previously allocated messages is exceeded in which case the loaned messages have to be returned to the middleware prior to be able to allocate a new one.

Definition at line 138 of file loaned_message.hpp.

release()

template<typename MessageT , typename AllocatorT = std::allocator<void>>

std::unique_ptr<MessageT, std::function<void(MessageT *)> > rclcpp::LoanedMessage< MessageT, AllocatorT >::release ( )

inline

Release ownership of the ROS message instance.

A call to release() will unmanage the memory for the ROS message. That means that the destructor of this class will not free the memory on scope exit. If the message is loaned from the middleware but not be published, the user needs to call rcl_return_loaned_message_from_publisher manually. If the memory is from the local allocator, the memory is freed when the unique pointer goes out instead.

Returns

std::unique_ptr to the message instance.

Definition at line 168 of file loaned_message.hpp.

References rclcpp::PublisherBase::can_loan_messages().

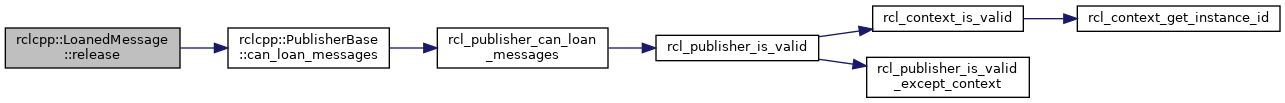

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• rclcpp/include/rclcpp/loaned_message.hpp
