Classes
class	Impl

Public Member Functions
RCLCPP_PUBLIC	Clock (rcl_clock_type_t clock_type=RCL_SYSTEM_TIME)
	Default c'tor. More...

RCLCPP_PUBLIC Time	now () const

RCLCPP_PUBLIC bool	sleep_until (Time until, Context::SharedPtr context=contexts::get_global_default_context())

RCLCPP_PUBLIC bool	sleep_for (Duration rel_time, Context::SharedPtr context=contexts::get_global_default_context())

RCLCPP_PUBLIC bool	started ()

RCLCPP_PUBLIC bool	wait_until_started (Context::SharedPtr context=contexts::get_global_default_context())

RCLCPP_PUBLIC bool	wait_until_started (const rclcpp::Duration &timeout, Context::SharedPtr context=contexts::get_global_default_context(), const rclcpp::Duration &wait_tick_ns=rclcpp::Duration(0, static_cast< uint32_t >(1e7)))

RCLCPP_PUBLIC bool	ros_time_is_active ()

RCLCPP_PUBLIC void	cancel_sleep_or_wait ()

RCLCPP_PUBLIC rcl_clock_t *	get_clock_handle () noexcept
	Return the rcl_clock_t clock handle.

RCLCPP_PUBLIC rcl_clock_type_t	get_clock_type () const noexcept

RCLCPP_PUBLIC std::mutex &	get_clock_mutex () noexcept
	Get the clock's mutex.

RCLCPP_PUBLIC JumpHandler::SharedPtr	create_jump_callback (JumpHandler::pre_callback_t pre_callback, JumpHandler::post_callback_t post_callback, const rcl_jump_threshold_t &threshold)

Detailed Description

Definition at line 54 of file clock.hpp.

Constructor & Destructor Documentation

◆ Clock()

rclcpp::Clock::Clock ( rcl_clock_type_t clock_type = RCL_SYSTEM_TIME )

explicit

Default c'tor.

Initializes the clock instance with the given clock_type.

WARNING Don't instantiate a clock using RCL_ROS_TIME directly, unless you really know what you are doing. By default no TimeSource is attached to a new clock. This will lead to the unexpected behavior, that your RCL_ROS_TIME will run always on system time. If you want a RCL_ROS_TIME use Node::get_clock(), or make sure to attach a TimeSource yourself.

Parameters

clock_type type of the clock.

Exceptions

anything rclcpp::exceptions::throw_from_rcl_error can throw.

Definition at line 68 of file clock.cpp.

Referenced by wait_until_started().

Here is the caller graph for this function:

Member Function Documentation

◆ cancel_sleep_or_wait()

void rclcpp::Clock::cancel_sleep_or_wait ( )

Cancels an ongoing or future sleep operation of one thread.

This function can be used by one thread, to wakeup another thread that is blocked using any of the sleep_ or wait_ methods of this class.

Definition at line 87 of file clock.cpp.

◆ create_jump_callback()

JumpHandler::SharedPtr rclcpp::Clock::create_jump_callback	(	JumpHandler::pre_callback_t	pre_callback,
		JumpHandler::post_callback_t	post_callback,
		const rcl_jump_threshold_t &	threshold
	)

These callback functions must remain valid as long as the returned shared pointer is valid.

Function will register callbacks to the callback queue. On time jump all callbacks will be executed whose threshold is greater then the time jump; The logic will first call selected pre_callbacks and then all selected post_callbacks.

Function is only applicable if the clock_type is RCL_ROS_TIME

Parameters

pre_callback	Must be non-throwing
post_callback	Must be non-throwing.
threshold	Callbacks will be triggered if the time jump is greater then the threshold.

Exceptions

anything	rclcpp::exceptions::throw_from_rcl_error can throw.
std::bad_alloc	if the allocation of the JumpHandler fails.

Warning: the instance of the clock must remain valid as long as any created JumpHandler.

Definition at line 330 of file clock.cpp.

References rcl_clock_add_jump_callback(), and RCL_RET_OK.

Referenced by sleep_until().

Here is the call graph for this function:

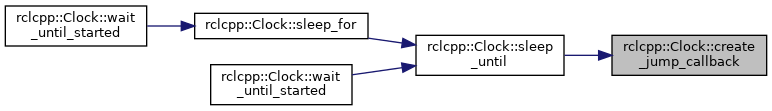

Here is the caller graph for this function:

◆ now()

Time rclcpp::Clock::now ( ) const

Returns current time from the time source specified by clock_type.

Returns: current time.

Exceptions

anything rclcpp::exceptions::throw_from_rcl_error can throw.

Definition at line 74 of file clock.cpp.

References rcl_time_point_s::nanoseconds, rcl_clock_get_now(), and RCL_RET_OK.

Referenced by sleep_for(), sleep_until(), and wait_until_started().

Here is the call graph for this function:

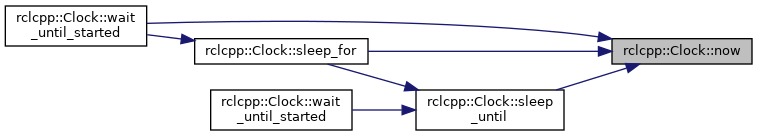

Here is the caller graph for this function:

◆ ros_time_is_active()

bool rclcpp::Clock::ros_time_is_active ( )

Returns the clock of the type RCL_ROS_TIME is active.

Returns: true if the clock is active

Exceptions

anything rclcpp::exceptions::throw_from_rcl_error can throw if the current clock does not have the clock_type RCL_ROS_TIME.

Definition at line 278 of file clock.cpp.

References rcl_clock_valid(), rcl_is_enabled_ros_time_override(), and RCL_RET_OK.

Referenced by sleep_until().

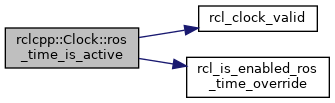

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sleep_for()

bool rclcpp::Clock::sleep_for	(	Duration	rel_time,
		Context::SharedPtr	context = `contexts::get_global_default_context()`
	)

Sleep for a specified Duration.

Equivalent to

clock->sleep_until(clock->now() + rel_time, context)

The function will return immediately if rel_time is zero or negative.

Parameters

rel_time	the length of time to sleep for.
context	the rclcpp context the clock should use to check that ROS is still initialized.

Returns: true when the end time is reached; false if time cannot be reached reliably, for example from shutdown or a change of time source.

Exceptions

std::runtime_error if the context is invalid

Definition at line 207 of file clock.cpp.

References now(), and sleep_until().

Referenced by wait_until_started().

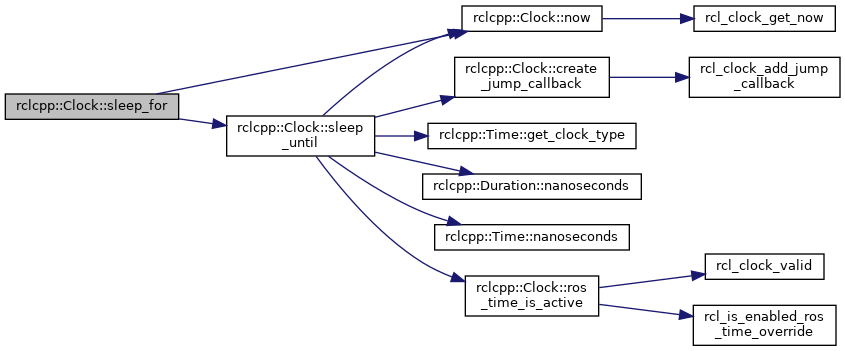

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sleep_until()

bool rclcpp::Clock::sleep_until	(	Time	until,
		Context::SharedPtr	context = `contexts::get_global_default_context()`
	)

Sleep until a specified Time, according to clock type.

Notes for RCL_ROS_TIME clock type:

Can sleep forever if ros time is active and received clock never reaches until
If ROS time enabled state changes during the sleep, this method will immediately return false. There is not a consistent choice of sleeping time when the time source changes, so this is up to the caller to call again if needed.

Warning: When using gcc < 10 or when using gcc >= 10 and pthreads lacks the function pthread_cond_clockwait, steady clocks may sleep using the system clock. If so, steady clock sleep times can be affected by system clock time jumps. Depending on the steady clock's epoch and resolution in comparison to the system clock's, an overflow when converting steady clock durations to system clock times may cause undefined behavior. For more info see these issues: https://gcc.gnu.org/bugzilla/show_bug.cgi?id=41861 https://gcc.gnu.org/bugzilla/show_bug.cgi?id=58931

Parameters

until	absolute time according to current clock type to sleep until.
context	the rclcpp context the clock should use to check that ROS is still initialized.

Returns: true immediately if until is in the past; true when the time until is reached; false if time cannot be reached reliably, for example from shutdown or a change of time source.

Exceptions

std::runtime_error	if the context is invalid
std::runtime_error	if `until` has a different clock type from this clock

Definition at line 97 of file clock.cpp.

References rcl_time_jump_s::clock_change, create_jump_callback(), rclcpp::Time::get_clock_type(), rcl_jump_threshold_s::min_backward, rcl_jump_threshold_s::min_forward, rcl_duration_s::nanoseconds, rclcpp::Duration::nanoseconds(), rclcpp::Time::nanoseconds(), now(), rcl_jump_threshold_s::on_clock_change, RCL_ROS_TIME, RCL_ROS_TIME_NO_CHANGE, RCL_STEADY_TIME, RCL_SYSTEM_TIME, and ros_time_is_active().

Referenced by sleep_for(), and wait_until_started().

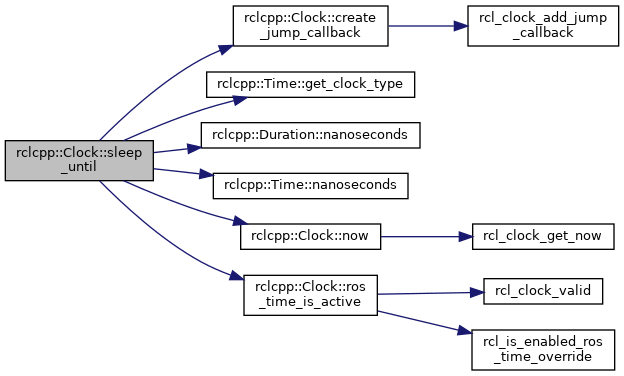

Here is the call graph for this function:

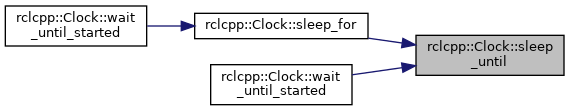

Here is the caller graph for this function:

◆ started()

bool rclcpp::Clock::started ( )

Check if the clock is started.

A started clock is a clock that reflects non-zero time. Typically a clock will be unstarted if it is using RCL_ROS_TIME with ROS time and nothing has been published on the clock topic yet.

Returns: true if clock is started

Exceptions

std::runtime_error if the clock is not rcl_clock_valid

Definition at line 213 of file clock.cpp.

References get_clock_handle(), rcl_clock_time_started(), and rcl_clock_valid().

Referenced by wait_until_started().

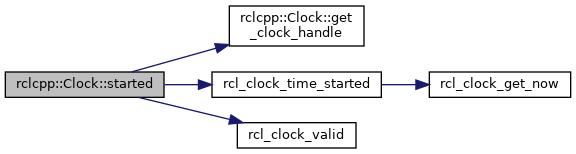

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wait_until_started() [1/2]

bool rclcpp::Clock::wait_until_started	(	const rclcpp::Duration &	timeout,
		Context::SharedPtr	context = `contexts::get_global_default_context()`,
		const rclcpp::Duration &	wait_tick_ns = `rclcpp::Duration(0, static_cast<uint32_t>(1e7))`
	)

Wait for clock to start, with timeout.

The timeout is waited in steady time.

\rclcpp::Clock::started

Parameters

timeout	the maximum time to wait for.
context	the context to wait in.
wait_tick_ns	the time to wait between each iteration of the wait loop (in nanoseconds).

Returns: true if clock was or became valid

Exceptions

std::runtime_error if the context is invalid or clock is not rcl_clock_valid

Definition at line 240 of file clock.cpp.

References Clock(), get_clock_handle(), now(), rcl_clock_valid(), RCL_STEADY_TIME, sleep_for(), and started().

Here is the call graph for this function:

◆ wait_until_started() [2/2]

bool rclcpp::Clock::wait_until_started ( Context::SharedPtr context = contexts::get_global_default_context() )

Wait until clock to start.

\rclcpp::Clock::started

Parameters

context the context to wait in

Returns: true if clock was already started or became started

Exceptions

std::runtime_error if the context is invalid or clock is not rcl_clock_valid

Definition at line 222 of file clock.cpp.

References get_clock_handle(), rcl_clock_valid(), sleep_until(), and started().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

rclcpp/include/rclcpp/clock.hpp
rclcpp/src/rclcpp/clock.cpp
