lexer.h File Reference

#include <stddef.h>
#include "rcl/allocator.h"
#include "rcl/macros.h"
#include "rcl/types.h"
#include "rcl/visibility_control.h"

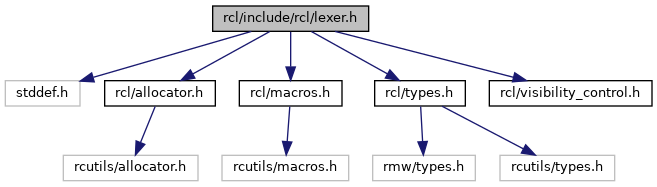

Include dependency graph for lexer.h:

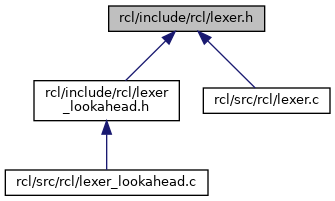

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef enum rcl_lexeme_e	rcl_lexeme_t
	Type of lexeme found by lexical analysis.

Enumerations
enum	rcl_lexeme_e {   RCL_LEXEME_NONE = 0 , RCL_LEXEME_EOF = 1 , RCL_LEXEME_TILDE_SLASH = 2 , RCL_LEXEME_URL_SERVICE = 3 ,   RCL_LEXEME_URL_TOPIC = 4 , RCL_LEXEME_COLON = 5 , RCL_LEXEME_NODE = 6 , RCL_LEXEME_NS = 7 ,   RCL_LEXEME_SEPARATOR = 8 , RCL_LEXEME_BR1 = 9 , RCL_LEXEME_BR2 = 10 , RCL_LEXEME_BR3 = 11 ,   RCL_LEXEME_BR4 = 12 , RCL_LEXEME_BR5 = 13 , RCL_LEXEME_BR6 = 14 , RCL_LEXEME_BR7 = 15 ,   RCL_LEXEME_BR8 = 16 , RCL_LEXEME_BR9 = 17 , RCL_LEXEME_TOKEN = 18 , RCL_LEXEME_FORWARD_SLASH = 19 ,   RCL_LEXEME_WILD_ONE = 20 , RCL_LEXEME_WILD_MULTI = 21 , RCL_LEXEME_DOT = 22 }
	Type of lexeme found by lexical analysis. More...

Functions
RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t	rcl_lexer_analyze (const char *text, rcl_lexeme_t *lexeme, size_t *length)
	Do lexical analysis on a string. More...

Enumeration Type Documentation

rcl_lexeme_e

enum rcl_lexeme_e

Type of lexeme found by lexical analysis.

Enumerator
RCL_LEXEME_NONE	Indicates no valid lexeme was found (end of input not reached)
RCL_LEXEME_EOF	Indicates end of input has been reached.
RCL_LEXEME_TILDE_SLASH	~/
RCL_LEXEME_URL_SERVICE	rosservice://
RCL_LEXEME_URL_TOPIC	rostopic://
RCL_LEXEME_COLON	:
RCL_LEXEME_NODE	__node or __name
RCL_LEXEME_NS	__ns
RCL_LEXEME_SEPARATOR	:=
RCL_LEXEME_BR1	\1
RCL_LEXEME_BR2	\2
RCL_LEXEME_BR3	\3
RCL_LEXEME_BR4	\4
RCL_LEXEME_BR5	\5
RCL_LEXEME_BR6	\6
RCL_LEXEME_BR7	\7
RCL_LEXEME_BR8	\8
RCL_LEXEME_BR9	\9
RCL_LEXEME_TOKEN	a name between slashes, must match (([a-zA-Z](_)?)|_)([0-9a-zA-Z](_)?)*
RCL_LEXEME_FORWARD_SLASH	/
RCL_LEXEME_WILD_ONE
RCL_LEXEME_WILD_MULTI	**
RCL_LEXEME_DOT	.

Definition at line 33 of file lexer.h.

Function Documentation

rcl_lexer_analyze()

RCL_PUBLIC RCL_WARN_UNUSED rcl_ret_t rcl_lexer_analyze	(	const char *	text,
		rcl_lexeme_t *	lexeme,
		size_t *	length
	)

Do lexical analysis on a string.

This function analyzes a string to see if it starts with a valid lexeme. If the string does not begin with a valid lexeme then lexeme will be RCL_LEXEME_NONE, and the length will be set to include the character that made it impossible. It will never be longer than the length of the string. If the first character is '\0' then lexeme will be RCL_LEXEME_EOF.

---

Attribute	Adherence
Allocates Memory	No
Thread-Safe	Yes
Uses Atomics	No
Lock-Free	Yes

Parameters

[in]	text	The string to analyze.
[out]	lexeme	The type of lexeme found in the string.
[out]	length	The length of text in the string that constitutes the found lexeme.

Returns

RCL_RET_OK if analysis is successful regardless whether a valid lexeme is found, or

RCL_RET_INVALID_ARGUMENT if any function arguments are invalid, or

RCL_RET_ERROR if an internal bug is detected.

Definition at line 598 of file lexer.c.

References rcl_lexer_state_s::else_movement, rcl_lexer_state_s::else_state, rcl_lexer_transition_s::range_end, rcl_lexer_transition_s::range_start, RCL_LEXEME_EOF, RCL_RET_ERROR, RCL_RET_INVALID_ARGUMENT, RCL_RET_OK, rcl_lexer_transition_s::to_state, and rcl_lexer_state_s::transitions.

Referenced by rcl_lexer_lookahead2_peek(), and rcl_lexer_lookahead2_peek2().

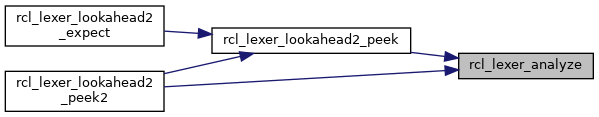

Here is the caller graph for this function:
