nav2_route::TimeMarker Class Reference

A route operation to add accurate times to the graph's edges after navigation to use in later iterations for a more refined estimate of actual travel time. More...

#include <nav2_route/include/nav2_route/plugins/route_operations/time_marker.hpp>

Inheritance diagram for nav2_route::TimeMarker:

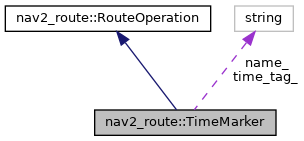

Collaboration diagram for nav2_route::TimeMarker:

Public Member Functions
	TimeMarker ()=default
	Constructor.
virtual	~TimeMarker ()=default
	destructor
void	configure (const nav2::LifecycleNode::SharedPtr node, std::shared_ptr< nav2_costmap_2d::CostmapSubscriber > costmap_subscriber, const std::string &name) override
	Configure.
std::string	getName () override
	Get name of the plugin for parameter scope mapping. More...
RouteOperationType	processType () override
	Indication that the adjust speed limit route operation is performed on all state changes. More...
OperationResult	perform (NodePtr node_achieved, EdgePtr edge_entered, EdgePtr edge_exited, const Route &route, const geometry_msgs::msg::PoseStamped &curr_pose, const Metadata *mdata=nullptr) override
	The main speed limit operation to adjust the maximum speed of the vehicle. More...
Public Member Functions inherited from nav2_route::RouteOperation
	RouteOperation ()=default
	Constructor.
virtual	~RouteOperation ()=default
	Destructor.

Protected Attributes
std::string	name_
std::string	time_tag_
rclcpp::Clock::SharedPtr	clock_
rclcpp::Time	edge_start_time_
unsigned int	curr_edge_

Additional Inherited Members
Public Types inherited from nav2_route::RouteOperation
using	Ptr = std::shared_ptr< nav2_route::RouteOperation >

Detailed Description

A route operation to add accurate times to the graph's edges after navigation to use in later iterations for a more refined estimate of actual travel time.

Definition at line 35 of file time_marker.hpp.

Member Function Documentation

getName()

std::string nav2_route::TimeMarker::getName ( )

inlineoverridevirtual

Get name of the plugin for parameter scope mapping.

Returns

Name

Implements nav2_route::RouteOperation.

Definition at line 60 of file time_marker.hpp.

Referenced by configure().

Here is the caller graph for this function:

perform()

OperationResult nav2_route::TimeMarker::perform ( NodePtr  node_achieved, EdgePtr  edge_entered, EdgePtr  edge_exited, const Route &  route, const geometry_msgs::msg::PoseStamped &  curr_pose, const Metadata *  mdata = nullptr  )

overridevirtual

The main speed limit operation to adjust the maximum speed of the vehicle.

Parameters

mdata	Metadata corresponding to the operation in the navigation graph. If metadata is invalid or irrelevant, a nullptr is given
node_achieved	Node achieved, for additional context
edge_entered	Edge entered by node achievement, for additional context
edge_exited	Edge exited by node achievement, for additional context
route	Current route being tracked in full, for additional context
curr_pose	Current robot pose in the route frame, for additional context

Returns

Whether to perform rerouting and report blocked edges in that case

Implements nav2_route::RouteOperation.

Definition at line 38 of file time_marker.cpp.

processType()

RouteOperationType nav2_route::TimeMarker::processType ( )

inlineoverridevirtual

Indication that the adjust speed limit route operation is performed on all state changes.

Returns

The type of operation (on graph call, on status changes, or constantly)

Reimplemented from nav2_route::RouteOperation.

Definition at line 67 of file time_marker.hpp.

---

The documentation for this class was generated from the following files:

• nav2_route/include/nav2_route/plugins/route_operations/time_marker.hpp
• nav2_route/src/plugins/route_operations/time_marker.cpp
