ROS 2 Navigation Stack
Public Member Functions | Public Attributes | List of all members
nav2_simple_commander.robot_navigator.BasicNavigator Class Reference
Inheritance diagram for nav2_simple_commander.robot_navigator.BasicNavigator:
Inheritance graph
[legend]
Collaboration diagram for nav2_simple_commander.robot_navigator.BasicNavigator:
Collaboration graph
[legend]

Public Member Functions

def __init__ (self, str node_name='basic_navigator', str namespace='')

def destroyNode (self)

def destroy_node (self)

def setInitialPose (self, PoseStamped initial_pose)

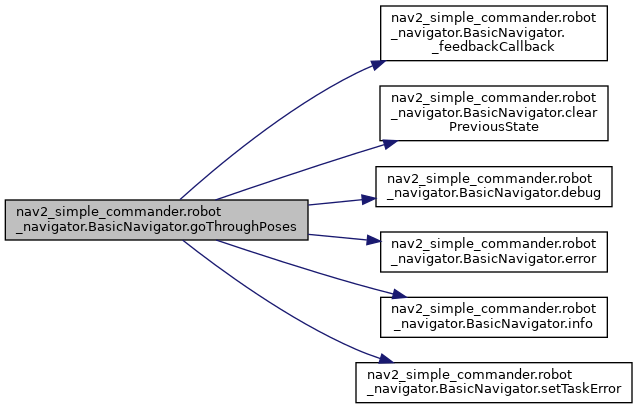

def goThroughPoses (self, Goals poses, str behavior_tree='')

def goToPose (self, PoseStamped pose, str behavior_tree='')

def followWaypoints (self, list[PoseStamped] poses)

def followGpsWaypoints (self, list[GeoPose] gps_poses)

def spin (self, float spin_dist=1.57, int time_allowance=10, bool disable_collision_checks=False)

def backup (self, float backup_dist=0.15, float backup_speed=0.025, int time_allowance=10, bool disable_collision_checks=False)

def driveOnHeading (self, float dist=0.15, float speed=0.025, int time_allowance=10, bool disable_collision_checks=False)

def assistedTeleop (self, int time_allowance=30)

def followPath (self, Path path, str controller_id='', str goal_checker_id='', str progress_checker_id='', str path_handler_id='')

def dockRobotByPose (self, PoseStamped dock_pose, str dock_type='', bool nav_to_dock=True)

def dockRobotByID (self, str dock_id, bool nav_to_dock=True)

def undockRobot (self, str dock_type='')

def followObjectByTopic (self, str topic, int max_duration=0)

def followObjectByFrame (self, str frame, int max_duration=0)

def cancelTask (self)

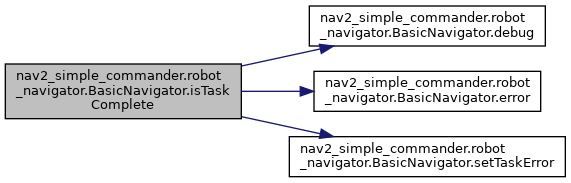

def isTaskComplete (self, RunningTask task=RunningTask.NONE)

def getFeedback (self, RunningTask task=RunningTask.NONE)

def getResult (self)

def clearPreviousState (self)

def setTaskError (self, int error_code, str error_msg)

def getTaskError (self)

def waitUntilNav2Active (self, str navigator='bt_navigator', str localizer='amcl')

def getPath (self, PoseStamped start, PoseStamped goal, str planner_id='', bool use_start=False)

def getPathThroughPoses (self, PoseStamped start, list[PoseStamped] goals, str planner_id='', bool use_start=False)

def getRoute (self, Union[int, PoseStamped] start, Union[int, PoseStamped] goal, bool use_start=False)

def getAndTrackRoute (self, Union[int, PoseStamped] start, Union[int, PoseStamped] goal, bool use_start=False)

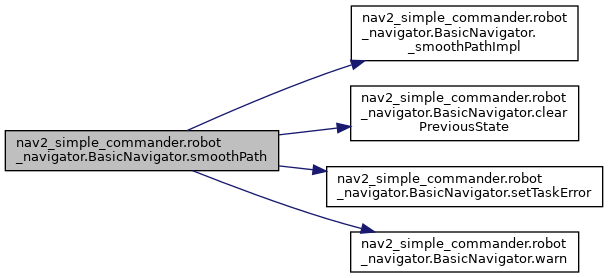

def smoothPath (self, Path path, str smoother_id='', float max_duration=2.0, bool check_for_collision=False)

def changeMap (self, str map_filepath)

def clearAllCostmaps (self)

def clearLocalCostmap (self)

def clearGlobalCostmap (self)

def clearCostmapExceptRegion (self, float reset_distance)

def clearCostmapAroundRobot (self, float reset_distance)

def clearLocalCostmapAroundPose (self, PoseStamped pose, float reset_distance)

def clearGlobalCostmapAroundPose (self, PoseStamped pose, float reset_distance)

def getGlobalCostmap (self)

def getLocalCostmap (self)

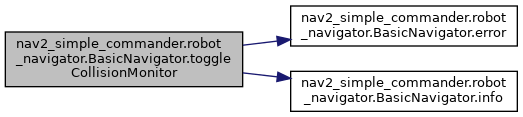

def toggleCollisionMonitor (self, bool enable)

def lifecycleStartup (self)

def lifecycleShutdown (self)

def info (self, str msg)

def warn (self, str msg)

def error (self, str msg)

def debug (self, str msg)


Public Attributes

 initial_pose

 goal_handle

 result_future

 feedback

 status

 route_goal_handle

 route_result_future

 route_feedback

 last_action_error_code

 last_action_error_msg

 initial_pose_received

 nav_through_poses_client

 nav_to_pose_client

 follow_waypoints_client

 follow_gps_waypoints_client

 follow_path_client

 compute_path_to_pose_client

 compute_path_through_poses_client

 smoother_client

 compute_route_client

 compute_and_track_route_client

 spin_client

 backup_client

 drive_on_heading_client

 assisted_teleop_client

 docking_client

 undocking_client

 following_client

 localization_pose_sub

 initial_pose_pub

 change_maps_srv

 clear_costmap_global_srv

 clear_costmap_local_srv

 clear_costmap_except_region_srv

 clear_costmap_around_robot_srv

 clear_local_costmap_around_pose_srv

 clear_global_costmap_around_pose_srv

 get_costmap_global_srv

 get_costmap_local_srv

 toggle_collision_monitor_srv


Detailed Description

Definition at line 72 of file robot_navigator.py.

Member Function Documentation

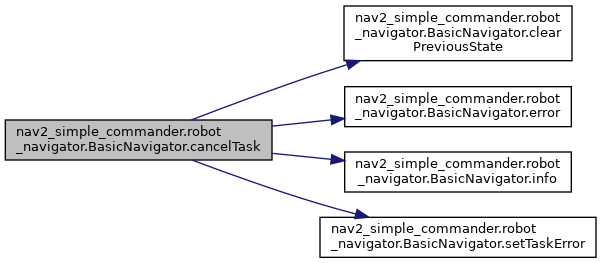

◆ cancelTask()

def nav2_simple_commander.robot_navigator.BasicNavigator.cancelTask (   self)
Cancel pending task request of any type.

Definition at line 613 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.route_goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.route_result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

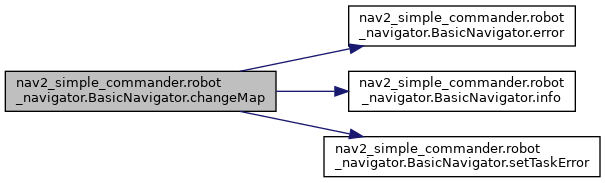

◆ changeMap()

def nav2_simple_commander.robot_navigator.BasicNavigator.changeMap (   self,
str  map_filepath
)
Change the current static map in the map server.

Definition at line 1003 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.change_maps_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.info(), and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

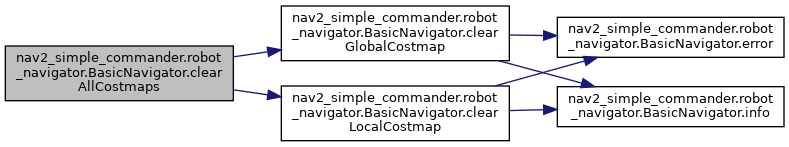

◆ clearAllCostmaps()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearAllCostmaps (   self)
Clear all costmaps.

Definition at line 1036 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clearGlobalCostmap(), and nav2_simple_commander.robot_navigator.BasicNavigator.clearLocalCostmap().

Here is the call graph for this function:

◆ clearCostmapAroundRobot()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearCostmapAroundRobot (   self,
float  reset_distance
)
Clear the costmap around the robot.

Definition at line 1085 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clear_costmap_around_robot_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Here is the call graph for this function:

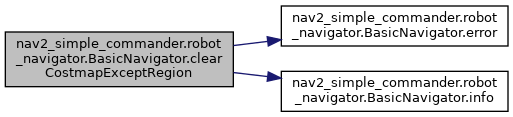

◆ clearCostmapExceptRegion()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearCostmapExceptRegion (   self,
float  reset_distance
)
Clear the costmap except for a specified region.

Definition at line 1070 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clear_costmap_except_region_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Here is the call graph for this function:

◆ clearGlobalCostmap()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearGlobalCostmap (   self)
Clear global costmap.

Definition at line 1056 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clear_costmap_global_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Referenced by nav2_simple_commander.robot_navigator.BasicNavigator.clearAllCostmaps().

Here is the call graph for this function:
Here is the caller graph for this function:

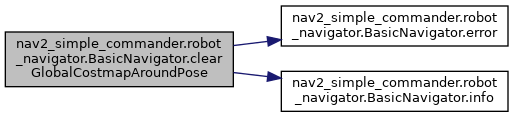

◆ clearGlobalCostmapAroundPose()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearGlobalCostmapAroundPose (   self,
PoseStamped  pose,
float  reset_distance
)
Clear the global costmap around a given pose.

Definition at line 1116 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clear_global_costmap_around_pose_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Here is the call graph for this function:

◆ clearLocalCostmap()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearLocalCostmap (   self)
Clear local costmap.

Definition at line 1042 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clear_costmap_local_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Referenced by nav2_simple_commander.robot_navigator.BasicNavigator.clearAllCostmaps().

Here is the call graph for this function:
Here is the caller graph for this function:

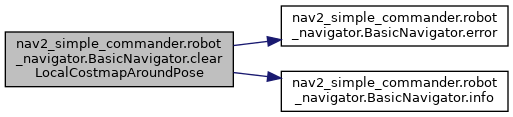

◆ clearLocalCostmapAroundPose()

def nav2_simple_commander.robot_navigator.BasicNavigator.clearLocalCostmapAroundPose (   self,
PoseStamped  pose,
float  reset_distance
)
Clear the costmap around a given pose.

Definition at line 1100 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.clear_local_costmap_around_pose_srv, nav2_simple_commander.robot_navigator.BasicNavigator.error(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Here is the call graph for this function:

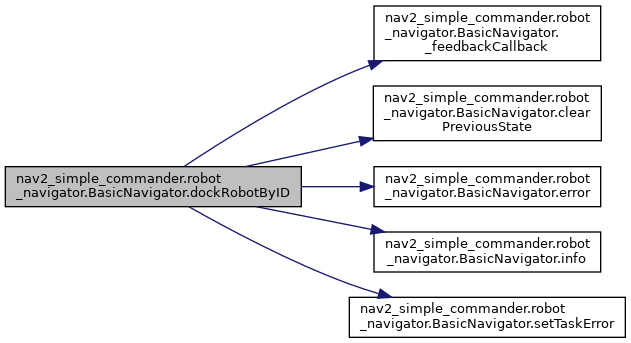

◆ dockRobotByID()

def nav2_simple_commander.robot_navigator.BasicNavigator.dockRobotByID (   self,
str  dock_id,
bool   nav_to_dock = True
)
Send a `DockRobot` action request.

Definition at line 509 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.docking_client, nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

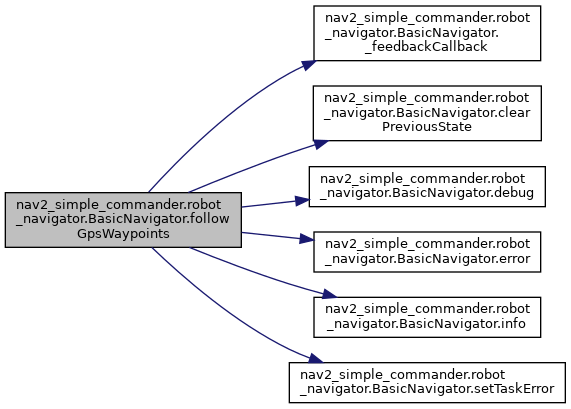

◆ followGpsWaypoints()

def nav2_simple_commander.robot_navigator.BasicNavigator.followGpsWaypoints (   self,
list[GeoPose]  gps_poses
)
Send a `FollowGPSWaypoints` action request.

Definition at line 308 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.assisted_teleop_client, nav2_simple_commander.robot_navigator.BasicNavigator.backup_client, nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.docking_client, nav2_simple_commander.robot_navigator.BasicNavigator.drive_on_heading_client, nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.follow_gps_waypoints_client, nav2_simple_commander.robot_navigator.BasicNavigator.follow_path_client, nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), and nav2_simple_commander.robot_navigator.BasicNavigator.spin_client.

Here is the call graph for this function:

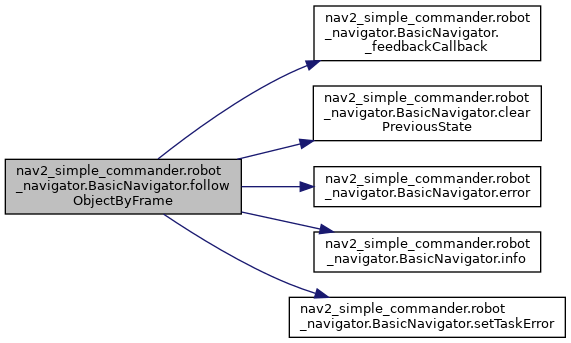

◆ followObjectByFrame()

def nav2_simple_commander.robot_navigator.BasicNavigator.followObjectByFrame (   self,
str  frame,
int   max_duration = 0
)
Send a `FollowObject` action request.

Definition at line 587 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.following_client, nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

◆ followObjectByTopic()

def nav2_simple_commander.robot_navigator.BasicNavigator.followObjectByTopic (   self,
str  topic,
int   max_duration = 0
)
Send a `FollowObject` action request.

Definition at line 561 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.following_client, nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

◆ followWaypoints()

def nav2_simple_commander.robot_navigator.BasicNavigator.followWaypoints (   self,
list[PoseStamped]  poses
)
Send a `FollowWaypoints` action request.

Definition at line 282 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.follow_waypoints_client, nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

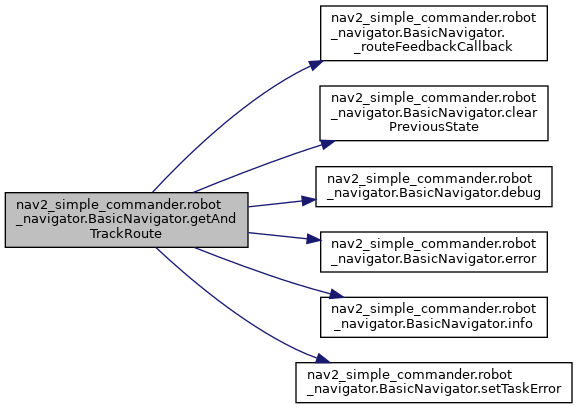

◆ getAndTrackRoute()

def nav2_simple_commander.robot_navigator.BasicNavigator.getAndTrackRoute (   self,
Union[int, PoseStamped]  start,
Union[int, PoseStamped]  goal,
bool   use_start = False
)
Send a `ComputeAndTrackRoute` action request.

Definition at line 906 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._routeFeedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.compute_and_track_route_client, nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.route_goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.route_result_future, nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), nav2_simple_commander.robot_navigator.BasicNavigator.smoother_client, nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, and nav2_waypoint_follower::GoalStatus.status.

Here is the call graph for this function:

◆ getFeedback()

def nav2_simple_commander.robot_navigator.BasicNavigator.getFeedback (   self,
RunningTask   task = RunningTask.NONE
)
Get the pending action feedback message.

Definition at line 678 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.feedback, and nav2_simple_commander.robot_navigator.BasicNavigator.route_feedback.

◆ getGlobalCostmap()

def nav2_simple_commander.robot_navigator.BasicNavigator.getGlobalCostmap (   self)
Get the global costmap.

Definition at line 1132 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.get_costmap_global_srv, and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Here is the call graph for this function:

◆ getLocalCostmap()

def nav2_simple_commander.robot_navigator.BasicNavigator.getLocalCostmap (   self)
Get the local costmap.

Definition at line 1147 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.get_costmap_local_srv, and nav2_simple_commander.robot_navigator.BasicNavigator.info().

Here is the call graph for this function:

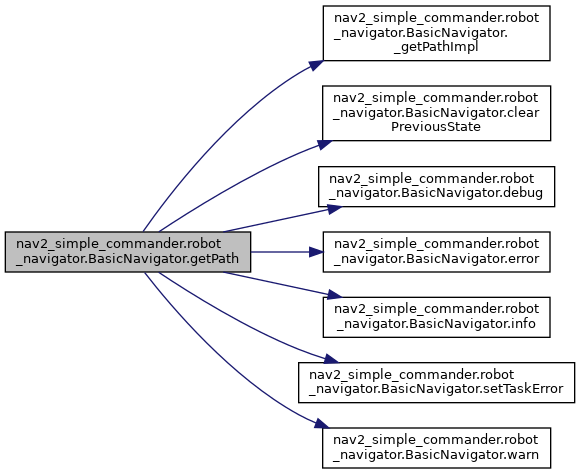

◆ getPath()

def nav2_simple_commander.robot_navigator.BasicNavigator.getPath (   self,
PoseStamped  start,
PoseStamped  goal,
str   planner_id = '',
bool   use_start = False
)
Send a `ComputePathToPose` action request.

Definition at line 758 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._getPathImpl(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.compute_path_through_poses_client, nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, nav2_waypoint_follower::GoalStatus.status, and nav2_simple_commander.robot_navigator.BasicNavigator.warn().

Here is the call graph for this function:

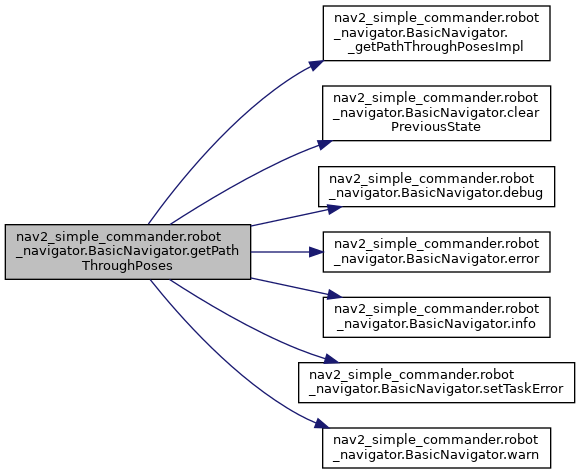

◆ getPathThroughPoses()

def nav2_simple_commander.robot_navigator.BasicNavigator.getPathThroughPoses (   self,
PoseStamped  start,
list[PoseStamped]  goals,
str   planner_id = '',
bool   use_start = False
)
Send a `ComputePathThroughPoses` action request.

Definition at line 820 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._getPathThroughPosesImpl(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.compute_route_client, nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, nav2_waypoint_follower::GoalStatus.status, and nav2_simple_commander.robot_navigator.BasicNavigator.warn().

Here is the call graph for this function:

◆ getResult()

def nav2_simple_commander.robot_navigator.BasicNavigator.getResult (   self)
Get the pending action result message.

Definition at line 686 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.feedback, nav2_simple_commander.robot_navigator.BasicNavigator.last_action_error_code, nav2_simple_commander.robot_navigator.BasicNavigator.last_action_error_msg, nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, and nav2_waypoint_follower::GoalStatus.status.

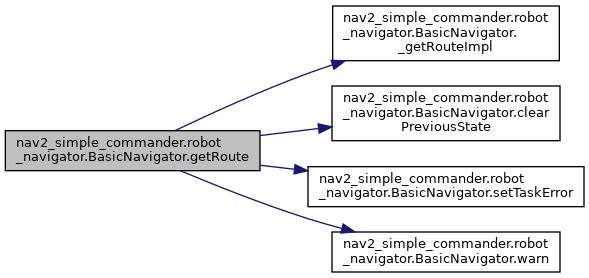

◆ getRoute()

def nav2_simple_commander.robot_navigator.BasicNavigator.getRoute (   self,
Union[int, PoseStamped]  start,
Union[int, PoseStamped]  goal,
bool   use_start = False
)
Send a `ComputeRoute` action request.

Definition at line 887 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._getRouteImpl(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, nav2_waypoint_follower::GoalStatus.status, and nav2_simple_commander.robot_navigator.BasicNavigator.warn().

Here is the call graph for this function:

◆ goThroughPoses()

def nav2_simple_commander.robot_navigator.BasicNavigator.goThroughPoses (   self,
Goals  poses,
str   behavior_tree = ''
)
Send a `NavThroughPoses` action request.

Definition at line 216 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.nav_through_poses_client, nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

Here is the call graph for this function:

◆ goToPose()

def nav2_simple_commander.robot_navigator.BasicNavigator.goToPose (   self,
PoseStamped  pose,
str   behavior_tree = ''
)
Send a `NavToPose` action request.

Definition at line 243 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.nav_to_pose_client, nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, and nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError().

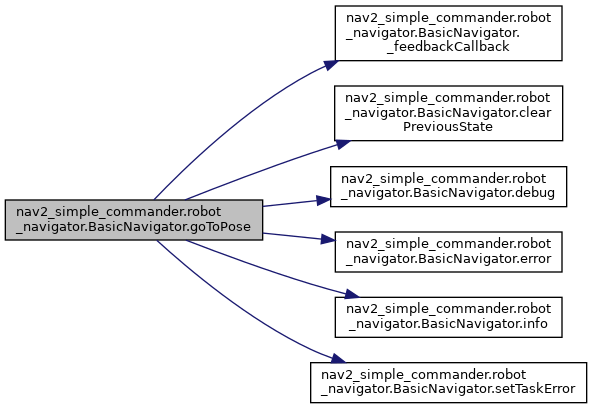

Here is the call graph for this function:

◆ isTaskComplete()

def nav2_simple_commander.robot_navigator.BasicNavigator.isTaskComplete (   self,
RunningTask   task = RunningTask.NONE
)
Check if the task request of any type is complete yet.

Definition at line 635 of file robot_navigator.py.

References nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.route_result_future, nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, and nav2_waypoint_follower::GoalStatus.status.

Here is the call graph for this function:

◆ lifecycleShutdown()

def nav2_simple_commander.robot_navigator.BasicNavigator.lifecycleShutdown (   self)
Shutdown nav2 lifecycle system.

Definition at line 1203 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._setInitialPose(), nav2::LifecycleNode.create_client(), nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.feedback, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.initial_pose, tester_node.NavTester.initial_pose, tester_node.RouteTester.initial_pose, nav_through_poses_tester_error_msg_node.NavTester.initial_pose, nav_through_poses_tester_node.NavTester.initial_pose, nav_to_pose_tester_node.NavTester.initial_pose, nav2_simple_commander.robot_navigator.BasicNavigator.initial_pose_pub, tester_node.NavTester.initial_pose_pub, tester_node.RouteTester.initial_pose_pub, nav_through_poses_tester_error_msg_node.NavTester.initial_pose_pub, nav_through_poses_tester_node.NavTester.initial_pose_pub, nav_to_pose_tester_node.NavTester.initial_pose_pub, tester.WaypointFollowerTest.initial_pose_pub, nav2_simple_commander.robot_navigator.BasicNavigator.initial_pose_received, tester_node.NavTester.initial_pose_received, tester_node.RouteTester.initial_pose_received, nav_through_poses_tester_error_msg_node.NavTester.initial_pose_received, nav_through_poses_tester_node.NavTester.initial_pose_received, nav_to_pose_tester_node.NavTester.initial_pose_received, tester.WaypointFollowerTest.initial_pose_received, and nav2_simple_commander.robot_navigator.BasicNavigator.route_feedback.

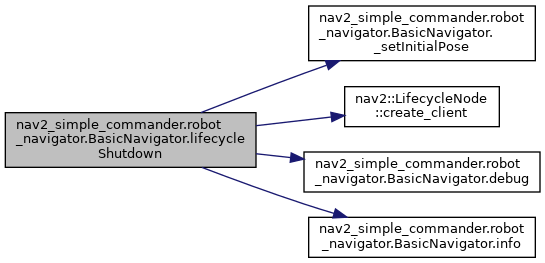

Here is the call graph for this function:

◆ lifecycleStartup()

def nav2_simple_commander.robot_navigator.BasicNavigator.lifecycleStartup (   self)
Startup nav2 lifecycle system.

Definition at line 1178 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._waitForInitialPose(), nav2::LifecycleNode.create_client(), and nav2_simple_commander.robot_navigator.BasicNavigator.info().

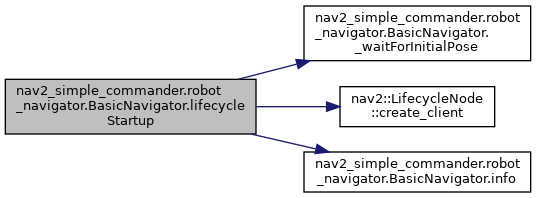

Here is the call graph for this function:

◆ setInitialPose()

def nav2_simple_commander.robot_navigator.BasicNavigator.setInitialPose (   self,
PoseStamped  initial_pose
)
Set the initial pose to the localization system.

Definition at line 210 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._setInitialPose(), nav2_simple_commander.robot_navigator.BasicNavigator.initial_pose, tester_node.NavTester.initial_pose, tester_node.RouteTester.initial_pose, nav_through_poses_tester_error_msg_node.NavTester.initial_pose, nav_through_poses_tester_node.NavTester.initial_pose, nav_to_pose_tester_node.NavTester.initial_pose, nav2_simple_commander.robot_navigator.BasicNavigator.initial_pose_received, tester_node.NavTester.initial_pose_received, tester_node.RouteTester.initial_pose_received, nav_through_poses_tester_error_msg_node.NavTester.initial_pose_received, nav_through_poses_tester_node.NavTester.initial_pose_received, nav_to_pose_tester_node.NavTester.initial_pose_received, and tester.WaypointFollowerTest.initial_pose_received.

Here is the call graph for this function:

◆ smoothPath()

def nav2_simple_commander.robot_navigator.BasicNavigator.smoothPath (   self,
Path  path,
str   smoother_id = '',
float   max_duration = 2.0,
bool   check_for_collision = False
)
Send a `SmoothPath` action request.

Definition at line 986 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._smoothPathImpl(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, nav2_waypoint_follower::GoalStatus.status, and nav2_simple_commander.robot_navigator.BasicNavigator.warn().

Here is the call graph for this function:

◆ toggleCollisionMonitor()

def nav2_simple_commander.robot_navigator.BasicNavigator.toggleCollisionMonitor (   self,
bool  enable
)
Toggle the collision monitor.

Definition at line 1163 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.info(), and nav2_simple_commander.robot_navigator.BasicNavigator.toggle_collision_monitor_srv.

Here is the call graph for this function:

◆ undockRobot()

def nav2_simple_commander.robot_navigator.BasicNavigator.undockRobot (   self,
str   dock_type = ''
)
Send a `UndockRobot` action request.

Definition at line 536 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._feedbackCallback(), nav2_simple_commander.robot_navigator.BasicNavigator.clearPreviousState(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_simple_commander.robot_navigator.BasicNavigator.setTaskError(), and nav2_simple_commander.robot_navigator.BasicNavigator.undocking_client.

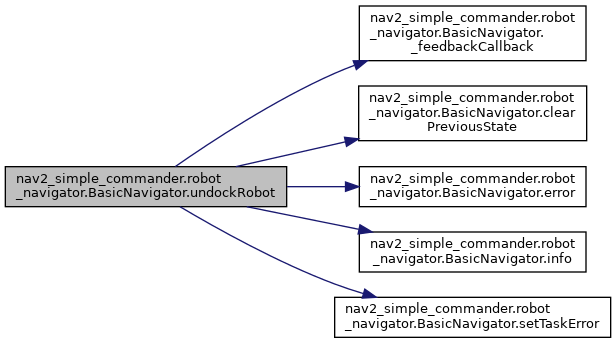

Here is the call graph for this function:

◆ waitUntilNav2Active()

def nav2_simple_commander.robot_navigator.BasicNavigator.waitUntilNav2Active (   self,
str   navigator = 'bt_navigator',
str   localizer = 'amcl'
)
Block until the full navigation system is up and running.

Definition at line 709 of file robot_navigator.py.

References nav2_simple_commander.robot_navigator.BasicNavigator._waitForInitialPose(), nav2_simple_commander.robot_navigator.BasicNavigator._waitForNodeToActivate(), nav2_simple_commander.robot_navigator.BasicNavigator.compute_path_to_pose_client, nav2_constrained_smoother::OptimizerParams.debug, nav2_simple_commander.robot_navigator.BasicNavigator.debug(), nav2_simple_commander.robot_navigator.BasicNavigator.error(), nav2_simple_commander.robot_navigator.BasicNavigator.goal_handle, backup_tester.BackupTest.goal_handle, drive_tester.DriveTest.goal_handle, spin_tester.SpinTest.goal_handle, tester.GpsWaypointFollowerTest.goal_handle, tester.WaypointFollowerTest.goal_handle, nav2_simple_commander.robot_navigator.BasicNavigator.info(), nav2_simple_commander.robot_navigator.BasicNavigator.result_future, backup_tester.BackupTest.result_future, drive_tester.DriveTest.result_future, spin_tester.SpinTest.result_future, nav2_behaviors::ResultStatus.status, Cell.status, nav2_simple_commander.robot_navigator.BasicNavigator.status, and nav2_waypoint_follower::GoalStatus.status.

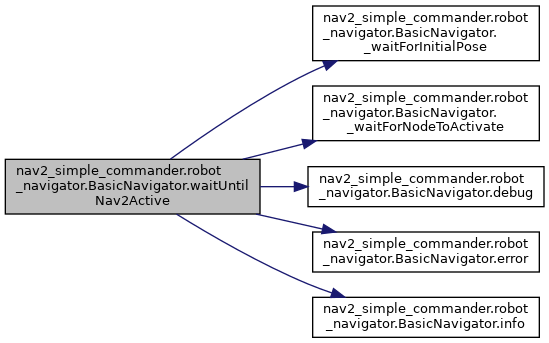

Here is the call graph for this function:
The documentation for this class was generated from the following file:
Generated by doxygen 1.9.1
