Inheritance diagram for rclcpp::EventHandler< EventCallbackT, ParentHandleT >:

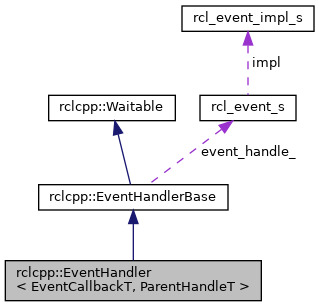

Collaboration diagram for rclcpp::EventHandler< EventCallbackT, ParentHandleT >:
Public Member Functions | |
| template<typename InitFuncT , typename EventTypeEnum > | |
| EventHandler (const EventCallbackT &callback, InitFuncT init_func, ParentHandleT parent_handle, EventTypeEnum event_type) | |
| std::shared_ptr< void > | take_data () override |
| Take data so that the callback cannot be scheduled again. | |
| std::shared_ptr< void > | take_data_by_entity_id ([[maybe_unused]] size_t id) override |
| void | execute (const std::shared_ptr< void > &data) override |
| Execute any entities of the Waitable that are ready. | |
| void | disable () override |
| Disable the event callback from being called when execute(..) invoked. More... | |
| void | enable () override |
| Enable the event callback to be called when execute(..) invoked. More... | |
 Public Member Functions inherited from rclcpp::EventHandlerBase | |
| RCLCPP_PUBLIC size_t | get_number_of_ready_events () override |
| Get the number of ready events. | |
| RCLCPP_PUBLIC void | add_to_wait_set (rcl_wait_set_t &wait_set) override |
| Add the Waitable to a wait set. | |
| RCLCPP_PUBLIC bool | is_ready (const rcl_wait_set_t &wait_set) override |
| Check if the Waitable is ready. | |
| void | set_on_ready_callback (std::function< void(size_t, int)> callback) override |
| Set a callback to be called when each new event instance occurs. More... | |
| void | clear_on_ready_callback () override |
| Unset the callback registered for new events, if any. | |
| RCLCPP_PUBLIC std::vector< std::shared_ptr< rclcpp::TimerBase > > | get_timers () const override |
| Returns all timers used by this waitable. More... | |
| Public Member Functions inherited from rclcpp::Waitable | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_subscriptions () |
| Get the number of ready subscriptions. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_timers () |
| Get the number of ready timers. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_clients () |
| Get the number of ready clients. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_services () |
| Get the number of ready services. More... | |
| virtual RCLCPP_PUBLIC size_t | get_number_of_ready_guard_conditions () |
| Get the number of ready guard_conditions. More... | |
| virtual RCLCPP_PUBLIC std::shared_ptr< void > | take_data_by_entity_id (size_t id)=0 |
Take the data so that it can be consumed with execute. More... | |
| RCLCPP_PUBLIC bool | exchange_in_use_by_wait_set_state (bool in_use_state) |
| Exchange the "in use by wait set" state for this timer. More... | |
Additional Inherited Members | |
| Public Types inherited from rclcpp::EventHandlerBase | |
| enum class | EntityType : std::size_t { Event } |
| Protected Member Functions inherited from rclcpp::EventHandlerBase | |
| RCLCPP_PUBLIC void | set_on_new_event_callback (rcl_event_callback_t callback, const void *user_data) |
| Protected Attributes inherited from rclcpp::EventHandlerBase | |
| std::recursive_mutex | on_new_event_callback_mutex_ |
| std::function< void(size_t)> | on_new_event_callback_ {nullptr} |
| rcl_event_t | event_handle_ |
| size_t | wait_set_event_index_ |
Detailed Description
template<typename EventCallbackT, typename ParentHandleT>
class rclcpp::EventHandler< EventCallbackT, ParentHandleT >
Definition at line 254 of file event_handler.hpp.
Member Function Documentation
◆ disable()
template<typename EventCallbackT , typename ParentHandleT >
|
inlineoverridevirtual |
Disable the event callback from being called when execute(..) invoked.
This will also temporarily remove the on_new_event_callback from the underlying rmw layer, so that it is not called from the middleware while disabled.
Implements rclcpp::EventHandlerBase.
Definition at line 331 of file event_handler.hpp.
◆ enable()
template<typename EventCallbackT , typename ParentHandleT >
|
inlineoverridevirtual |
Enable the event callback to be called when execute(..) invoked.
This will also set back the on_new_event_callback to the underlying rmw layer, if it was previously removed with disable().
Implements rclcpp::EventHandlerBase.
Definition at line 349 of file event_handler.hpp.
The documentation for this class was generated from the following file:
- rclcpp/include/rclcpp/event_handler.hpp
