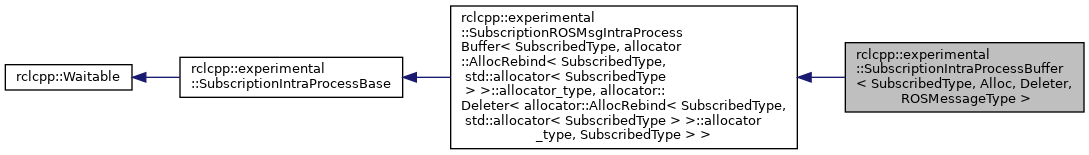

Inheritance diagram for rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >:

[legend]

Collaboration diagram for rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >:

[legend]

Public Types
using	SubscribedTypeAllocatorTraits = allocator::AllocRebind< SubscribedType, Alloc >

using	SubscribedTypeAllocator = typename SubscribedTypeAllocatorTraits::allocator_type

using	SubscribedTypeDeleter = allocator::Deleter< SubscribedTypeAllocator, SubscribedType >

using	ROSMessageTypeAllocatorTraits = allocator::AllocRebind< ROSMessageType, Alloc >

using	ROSMessageTypeAllocator = typename ROSMessageTypeAllocatorTraits::allocator_type

using	ROSMessageTypeDeleter = allocator::Deleter< ROSMessageTypeAllocator, ROSMessageType >

using	ConstMessageSharedPtr = std::shared_ptr< const ROSMessageType >

using	MessageUniquePtr = std::unique_ptr< ROSMessageType, ROSMessageTypeDeleter >

using	ConstDataSharedPtr = std::shared_ptr< const SubscribedType >

using	SubscribedTypeUniquePtr = std::unique_ptr< SubscribedType, SubscribedTypeDeleter >

using	BufferUniquePtr = typename rclcpp::experimental::buffers::IntraProcessBuffer< SubscribedType, Alloc, SubscribedTypeDeleter >::UniquePtr

Public Types inherited from rclcpp::experimental::SubscriptionROSMsgIntraProcessBuffer< SubscribedType, allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, allocator::Deleter< allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, SubscribedType > >
using	ROSMessageTypeAllocatorTraits = allocator::AllocRebind< SubscribedType, allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type >

using	ROSMessageTypeAllocator = typename ROSMessageTypeAllocatorTraits::allocator_type

using	ROSMessageTypeDeleter = allocator::Deleter< ROSMessageTypeAllocator, SubscribedType >

using	ConstMessageSharedPtr = std::shared_ptr< const SubscribedType >

using	MessageUniquePtr = std::unique_ptr< SubscribedType, ROSMessageTypeDeleter >

Public Types inherited from rclcpp::experimental::SubscriptionIntraProcessBase
enum class	EntityType : std::size_t { Subscription }

Public Member Functions
	SubscriptionIntraProcessBuffer (std::shared_ptr< Alloc > allocator, rclcpp::Context::SharedPtr context, const std::string &topic_name, const rclcpp::QoS &qos_profile, rclcpp::IntraProcessBufferType buffer_type)

void	add_to_wait_set (rcl_wait_set_t &wait_set) override
	Add the Waitable to a wait set. More...

bool	is_ready ([[maybe_unused]] const rcl_wait_set_t &wait_set) override

SubscribedTypeUniquePtr	convert_ros_message_to_subscribed_type_unique_ptr (const ROSMessageType &msg)

void	provide_intra_process_message (ConstMessageSharedPtr message) override

void	provide_intra_process_message (MessageUniquePtr message) override

void	provide_intra_process_data (ConstDataSharedPtr message)

void	provide_intra_process_data (SubscribedTypeUniquePtr message)

bool	use_take_shared_method () const override

size_t	available_capacity () const override

Public Member Functions inherited from rclcpp::experimental::SubscriptionROSMsgIntraProcessBuffer< SubscribedType, allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, allocator::Deleter< allocator::AllocRebind< SubscribedType, std::allocator< SubscribedType > >::allocator_type, SubscribedType > >
	SubscriptionROSMsgIntraProcessBuffer (rclcpp::Context::SharedPtr context, const std::string &topic_name, const rclcpp::QoS &qos_profile)

virtual void	provide_intra_process_message (ConstMessageSharedPtr message)=0

virtual void	provide_intra_process_message (MessageUniquePtr message)=0

Public Member Functions inherited from rclcpp::experimental::SubscriptionIntraProcessBase
RCLCPP_PUBLIC	SubscriptionIntraProcessBase (rclcpp::Context::SharedPtr context, const std::string &topic_name, const rclcpp::QoS &qos_profile)

RCLCPP_PUBLIC size_t	get_number_of_ready_guard_conditions () override
	Get the number of ready guard_conditions. More...

RCLCPP_PUBLIC bool	is_durability_transient_local () const

bool	is_ready (const rcl_wait_set_t &wait_set) override=0
	Check if the Waitable is ready. More...

std::shared_ptr< void >	take_data () override=0
	Take the data so that it can be consumed with `execute`. More...

std::shared_ptr< void >	take_data_by_entity_id ([[maybe_unused]] size_t id) override

void	execute (const std::shared_ptr< void > &data) override=0
	Execute data that is passed in. More...

RCLCPP_PUBLIC const char *	get_topic_name () const

RCLCPP_PUBLIC QoS	get_actual_qos () const

void	set_on_ready_callback (std::function< void(size_t, int)> callback) override
	Set a callback to be called when each new message arrives. More...

void	clear_on_ready_callback () override
	Unset the callback registered for new messages, if any.

RCLCPP_PUBLIC std::vector< std::shared_ptr< rclcpp::TimerBase > >	get_timers () const override
	Returns all timers used by this waitable. More...

Public Member Functions inherited from rclcpp::Waitable
virtual RCLCPP_PUBLIC size_t	get_number_of_ready_subscriptions ()
	Get the number of ready subscriptions. More...

virtual RCLCPP_PUBLIC size_t	get_number_of_ready_timers ()
	Get the number of ready timers. More...

virtual RCLCPP_PUBLIC size_t	get_number_of_ready_clients ()
	Get the number of ready clients. More...

virtual RCLCPP_PUBLIC size_t	get_number_of_ready_events ()
	Get the number of ready events. More...

virtual RCLCPP_PUBLIC size_t	get_number_of_ready_services ()
	Get the number of ready services. More...

virtual RCLCPP_PUBLIC std::shared_ptr< void >	take_data_by_entity_id (size_t id)=0
	Take the data so that it can be consumed with `execute`. More...

RCLCPP_PUBLIC bool	exchange_in_use_by_wait_set_state (bool in_use_state)
	Exchange the "in use by wait set" state for this timer. More...

Protected Member Functions
void	trigger_guard_condition () override

Protected Member Functions inherited from rclcpp::experimental::SubscriptionIntraProcessBase
void	invoke_on_new_message ()

Protected Attributes
BufferUniquePtr	buffer_

SubscribedTypeAllocator	subscribed_type_allocator_

SubscribedTypeDeleter	subscribed_type_deleter_

Protected Attributes inherited from rclcpp::experimental::SubscriptionIntraProcessBase
std::recursive_mutex	callback_mutex_

std::function< void(size_t)>	on_new_message_callback_ {nullptr}

size_t	unread_count_ {0}

rclcpp::GuardCondition	gc_

Detailed Description

template<typename SubscribedType, typename Alloc = std::allocator<SubscribedType>, typename Deleter = std::default_delete<SubscribedType>, typename ROSMessageType = SubscribedType>
class rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >

Definition at line 50 of file subscription_intra_process_buffer.hpp.

Member Function Documentation

◆ add_to_wait_set()

template<typename SubscribedType , typename Alloc = std::allocator<SubscribedType>, typename Deleter = std::default_delete<SubscribedType>, typename ROSMessageType = SubscribedType>

void rclcpp::experimental::SubscriptionIntraProcessBuffer< SubscribedType, Alloc, Deleter, ROSMessageType >::add_to_wait_set ( rcl_wait_set_t & wait_set )
